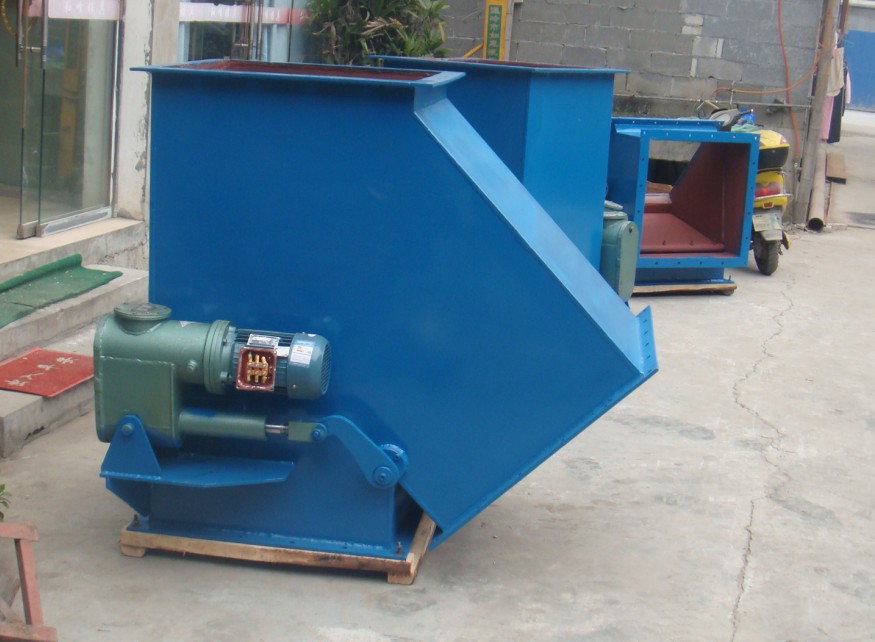

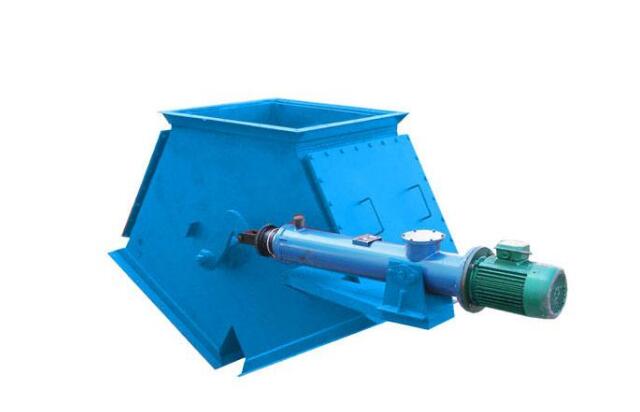

DSF Type Tee Diverter, Ship Type Tee Diverter Valve, Gate Valve with Electric-Hydraulic Actuator

1. Reasonably designed, with a complete range of specifications and models, our product series is easy to select. It features versatility, strong comprehensive matching capabilities, simple operation, and ease of maintenance.
2. If all gates are equipped with electro-hydraulic rotary drives or electro-hydraulic cylinders as the power source, they can achieve quick and flexible opening and closing, while also featuring load-starting capability and overload protection. This prevents motor burnout, ensuring smooth and reliable operation of the equipment. The entire unit is compact, lightweight, energy-efficient, low-noise, and easy to install.
3. Full hydraulic drive system, offering infinite adjustment for both thrust and pull force with a wide range of driving power. Adjusts reciprocating stroke with automatic locking of position. Controls gate flow by adjusting the gate opening.
4. Low investment. As all models of gates are designed and produced in a standardized and serialized manner, it is conducive to cost reduction. Additionally, individual gates can be equipped with one or several electro-hydraulic rotary drives or electro-hydraulic push rods, which can achieve full hydraulic transmission. No special hydraulic station is required, and there are no auxiliary equipment.
5. Wide Application Range. Considering that the gate may operate in various environments, the design has maximized the range of gate models, specifications, types, and series, ensuring comprehensive compatibility for the storage and transportation of bulk materials across various industries.
6. The distributed material gate is equipped with an electrically powered rotating drive or an electro-hydraulic push rod, which can achieve stroke control, signal display; centralized control without stroke, digital display; or 4-20mA microcomputer control.

Application Range
1. All gates are suitable for various bulk materials such as minerals, coal, coke, slag, chemicals, etc. with a specific gravity of ≤ 2.5t/m3. When used under corrosive conditions or high temperatures, the material of the gate can be replaced. In explosion-proof areas, XDGB type electro-hydraulic push rods or DYQB type explosion-proof electro-hydraulic rotary drives can be used.
2. The three-way distributors (Type A, B) can directly connect the upper flange at the bottom of the conveyor belt machine head funnel or other equipment discharge interface. The connection methods of Type C, D, and E distributors are the same, but they are generally used under conditions where the bulk density is ≤ 2.8t/m3, with high abrasiveness and harsh working environments. Their structural dimensions are larger (liner plates are also thicker), making them heavier, and additional support is required according to actual conditions. Type A, B, C, D, and E distributors can all achieve bidirectional switching and分流 of materials.

Product Model Numbering System

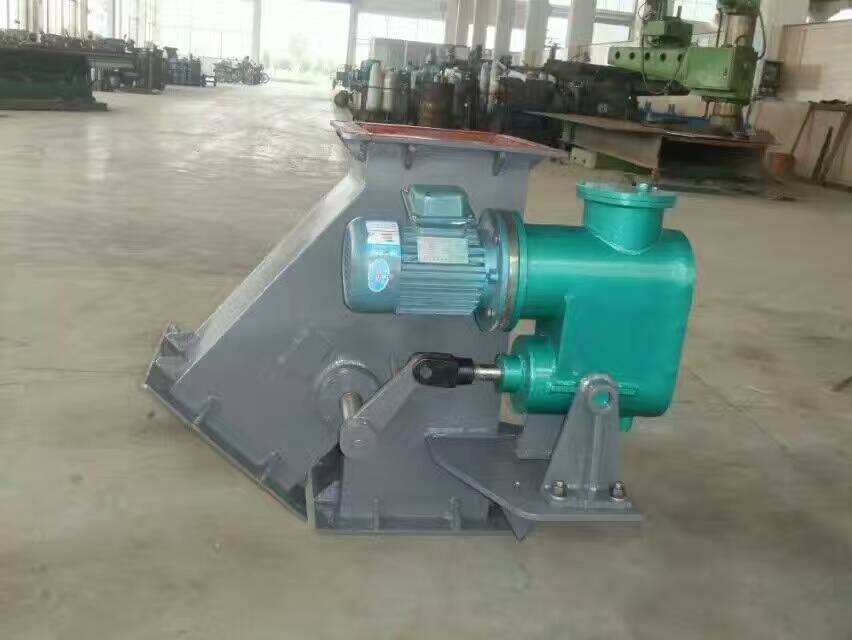

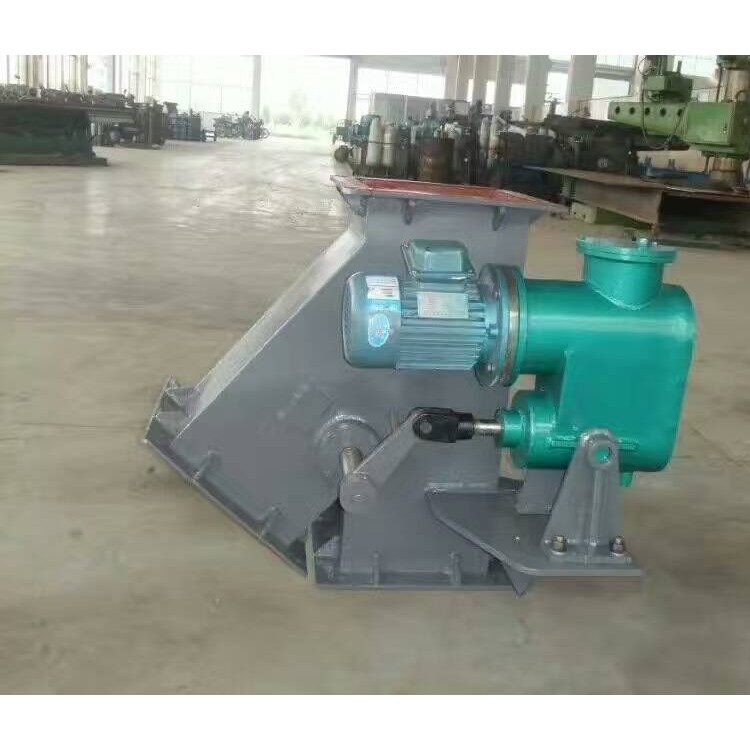

Micro Tee Fitting Divertor (Corner Drive)
Tri-connector分流器外形图
