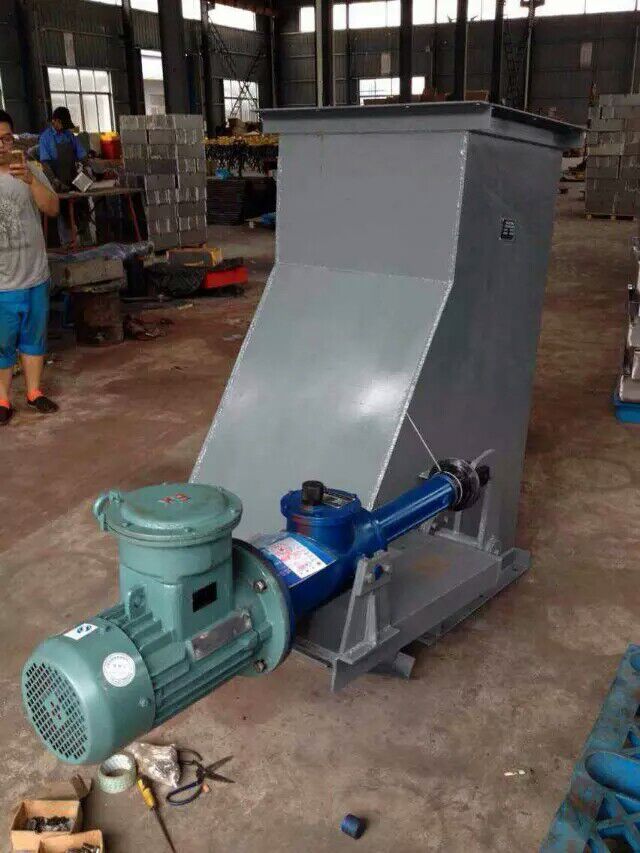

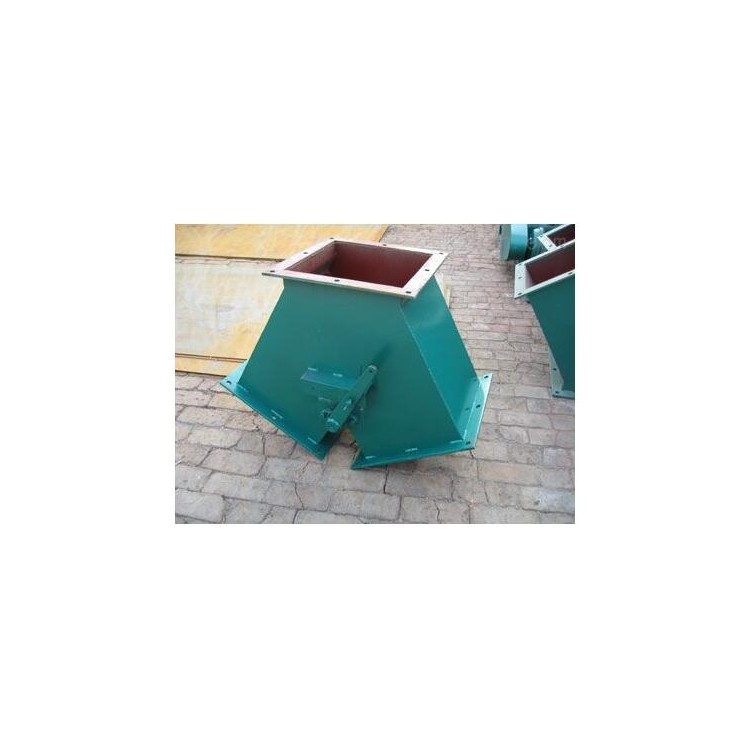

Electro-hydraulic marine three-way分流器, Electric discharge valve, Coal storage three-way chute
Electro-hydraulic three-way manifold dividers are known by various names, such as electro-hydraulic three-way manifold valves, electro-hydraulic three-way manifolds, and V-valves. They come in manual, electric, and pneumatic types, and are divided into straight three-way and lateral three-way configurations.
Electro-hydraulic three-way分流阀The actuator uses an electro-hydraulic cylinder as its power source. Thanks to its automatic overload protection feature, when operation is obstructed, the pressure in the oil circuit increases to the set limit, and the overflow valve quickly and accurately discharges, implementing overload protection. The motor operates within its rated value without burning out. When the actuator reaches the set travel limit, an automatic locking mechanism is designed in the oil circuit module of the electro-hydraulic actuator, stopping the motor. The piston rod locks in place, maintaining a pressure retention state.The DSF-A(B) type electro-hydraulic three-way分流器 is suitable for material directional change/diversion processes.
Electro-hydraulic three-way分流器 structural features:
1. Well-designed, complete in specifications and models, our product series is easy to select, versatile, and highly integrated. They are user-friendly and simple to maintain.
2. Compact structure, lightweight, low power consumption, low noise, and easy installation.
3. If the power source is an electro-hydraulic push rod or electro-hydraulic actuated angle drive, it features rapid and flexible operation, load-bearing start-up capability, and automatic overload protection. Both thrust and pull forces can be infinitely adjusted, with a wide driving force range and adjustable reciprocating stroke.
4. Broad application range. The series of batching dividers and their matching designs are widely used in the storage and transportation of bulk materials across various industries.
5. Automated control, enabling remote operation, opening signal display, and both remote and centralized control.
