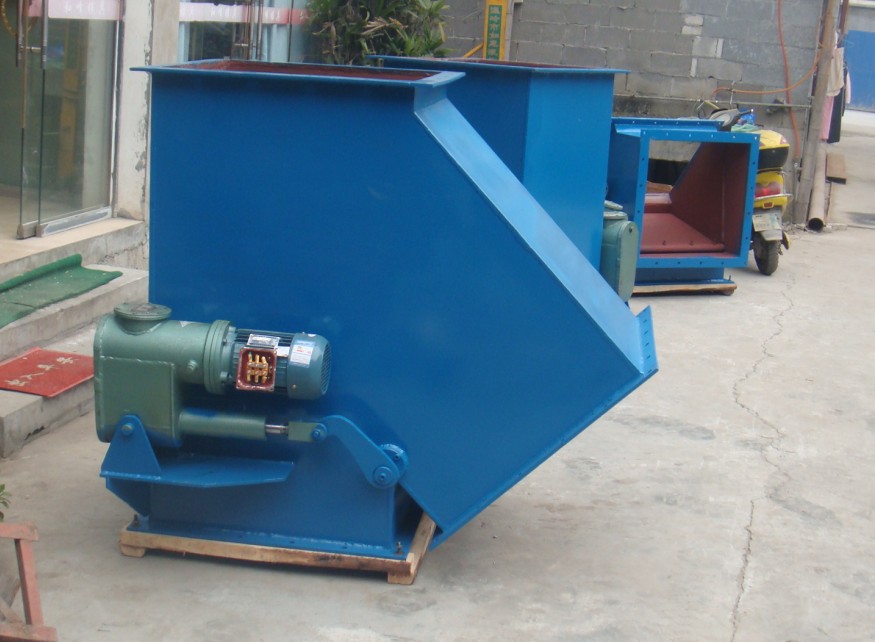

FC Series Electro-Hydraulic Three-Way ManifoldElectro-hydraulic actuated three-way分流阀
Product Features 1Well-designed, complete in specifications and models, product series, easy to select, versatile, strong in comprehensive matching, simple to operate, and easy to maintain.
2If all gates are equipped with electro-hydraulic rotary drives or electro-hydraulic actuators as the power source, they can achieve quick and flexible opening and closing, while also having the ability to start under load and overload protection features. This prevents motor burnout, ensuring smooth and reliable equipment operation. The entire unit is compact, lightweight, energy-efficient, low-noise, and easy to install.
3Full-liquid power transmission, with both thrust and pull force capable of infinite adjustment, offering a wide range of driving power. Adjustable reciprocating stroke with automatic locking of position. Control the gate flow by adjusting the opening degree of the regulating gate.
4Low investment. Due to standardized design and mass production of all gate models, costs are reduced. Each gate can be equipped with one or several electro-hydraulic rotary drives or electro-hydraulic push rods, enabling full hydraulic transmission. No need for a dedicated hydraulic station or any auxiliary equipment.
5Broadly applicable. Considering the gate may operate in various environments, the design has maximized the range of gate models, specifications, types, and series to ensure comprehensive compatibility for the storage and transportation of bulk materials across various industries.
6The distributed material gate is equipped with an electrically powered rotary actuator or an electro-hydraulic push rod, which can achieve stroke control and signal display; centralized control without stroke, with digital display; or4 － 20mA Microcomputer Control
Application Scope
1All gates are suitable for bulk density≤ 2.5t/m3 A variety of ores, coal, coke, slag, chemical products, and other bulk materials. When used under corrosive or high-temperature conditions, the material of the gate can be replaced. In explosion-proof areas, the use of appropriate materials is recommended.XDGB Type Electro-hydraulic Push RodDYQB Type Explosion-proof Electro-hydraulic Rotating Drive Unit
2Three-way manifold diverter(A 、 B Type) The upper flange can be directly connected to the bottom of the hopper on the tape machine head or to the discharge interface of other equipment.C 、 D 、 E Type three-way manifold diverter has the same connection method as above, but it is generally used in bulk density applications.≤ 2.8t/m3 And it has high wear resistance and operates under harsh working conditions. Its structure and dimensions are larger (the liners are also thicker), thus heavier, and additional supports are required during use based on actual conditions.A 、 B 、 C 、 D 、 E The type and split material separators can both achieve bidirectional switching and分流 of materials.
