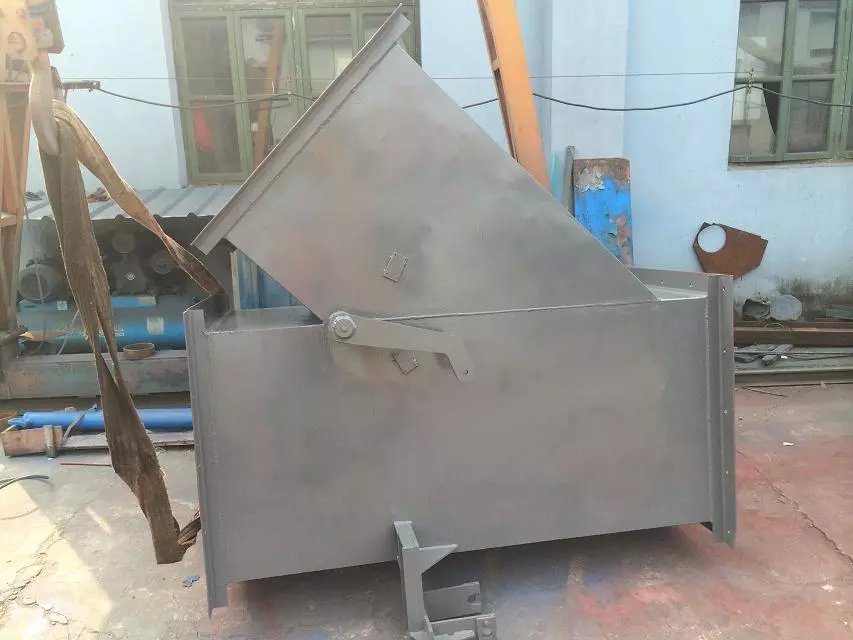

DSF-500 Electro-Hydraulic Three-Way分流Valve  Four-Way分流Divertor  Three-Way Chute

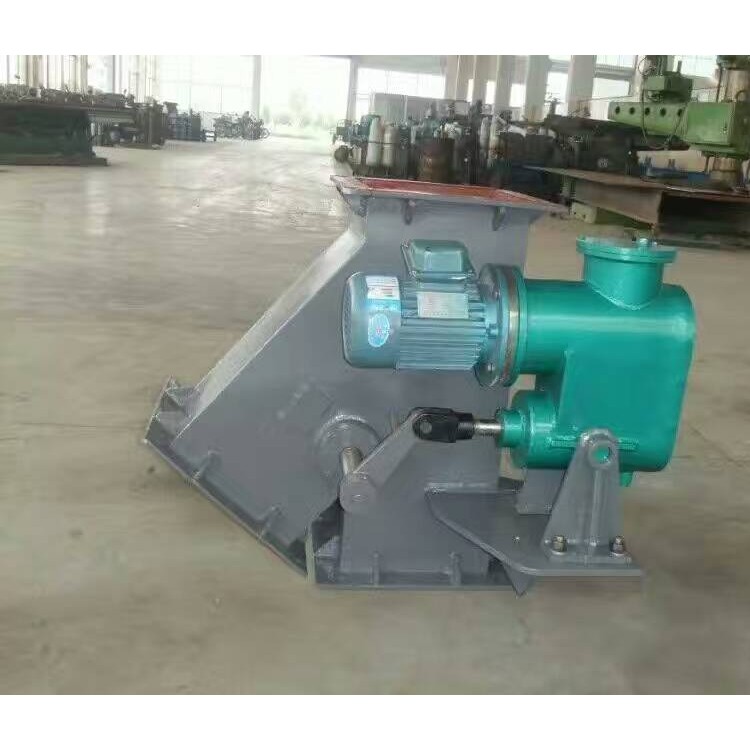

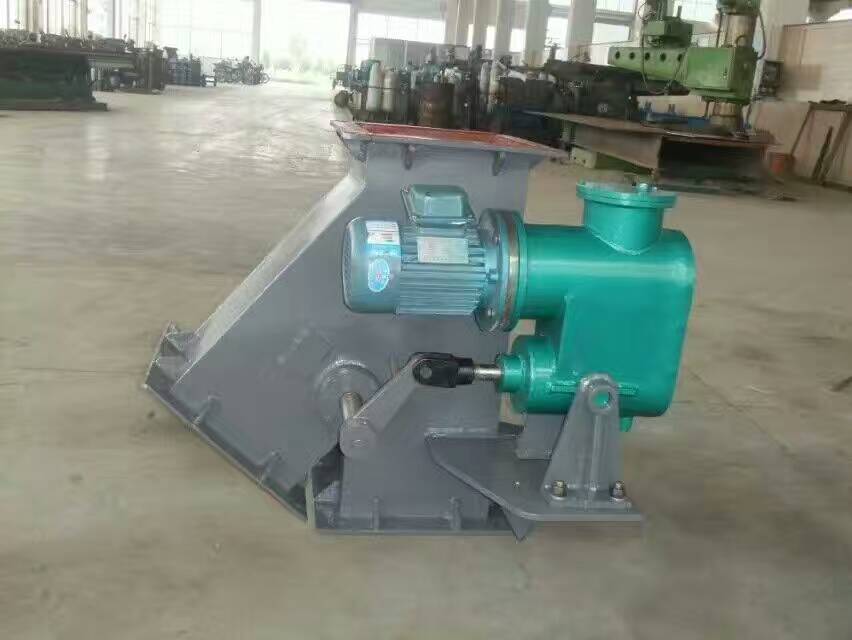

Three-way distributors are available in two types: straight and side. They come in electric-hydraulic, electric, pneumatic, and manual options. Product Description:The DSF-A (B, C, D, E) type electro-hydraulic three-way分流器 utilizes an electro-hydraulic actuator as its power source. It features automatic overload protection; if the operation is obstructed, the oil circuit pressure increases to the set limit, and the overflow valve quickly and accurately discharges, implementing overload protection. The motor operates within its rated values without burning out. When the actuator reaches the set travel limit, an automatic locking mechanism is designed in the oil circuit module of the electro-hydraulic actuator, stopping the motor and locking the piston rod in place, maintaining pressure.

The DSF-A (B) type electro-hydraulic three-way分流器 is suitable for material reversing/diverting processes. It also allows for reversing while material flow is present. The DSF-C (D, E) type electro-hydraulic three-way分流器 is used for material reversing/diverting processes as well, featuring gate kinetic energy. It also serves the function of simultaneously cutting off or allowing the flow of materials.

Among themDSF-A (B) type electro-hydraulic three-way分流器 is suitable for material reversing/diversion processes. It allows for directional changes while material flow is present; it also has the kinetic energy of a gate; and it simultaneously controls the cutting off or flow of materials.

The working principle is to control the flip valve's flipping through the rotation mechanism of the three-way manifold, powered by an electro-hydraulic actuator, achieving the purpose of material directional change.

This product can directly connect the top flange under the hopper of the tape machine head or at the discharge interface of other equipment. It is generally used for applications where the bulk density is less than or equal to2.8t/m, with high abrasiveness and harsh working conditions. Due to its large structural dimensions and weight (thicker wear-resistant lining), the upper flange cannot bear its own weight. Additional support is required based on actual conditions.

1. Electro-hydraulic three-way分流阀 - Compact, lightweight, and low resistance

2. Smooth operation;

3. Low failure rate

4. Quick disconnection of materials.

 Star discharge valves, screw conveyors, dust humidifiers, heavy-duty flip valves, electro-hydraulic three-way distributors, electro-hydraulic jaw valves, pneumatic sector valves, air ventilation butterfly valves, explosion-proof doors, manual sliding gate valves, dust removal frames, dust bags, and other full range of dust removal accessories in various models.
