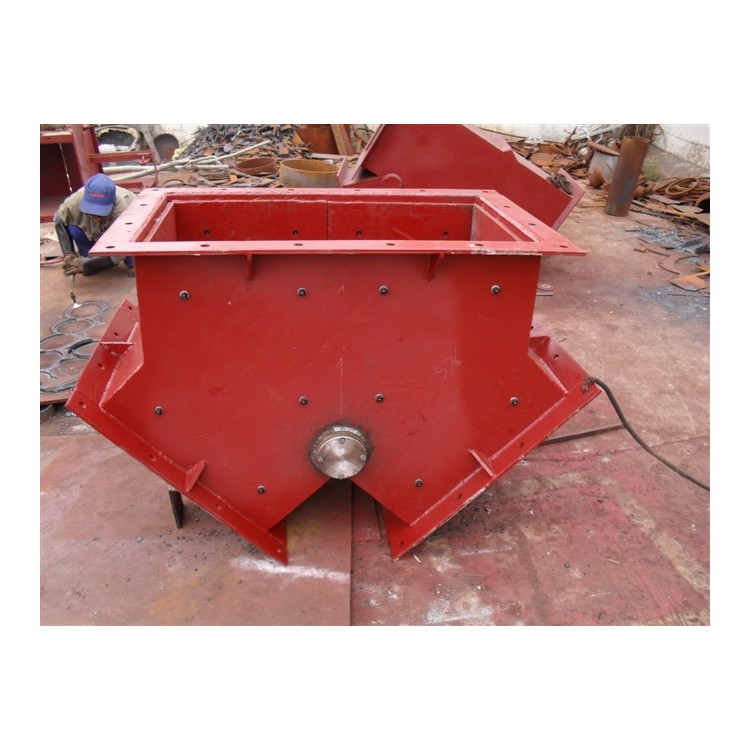

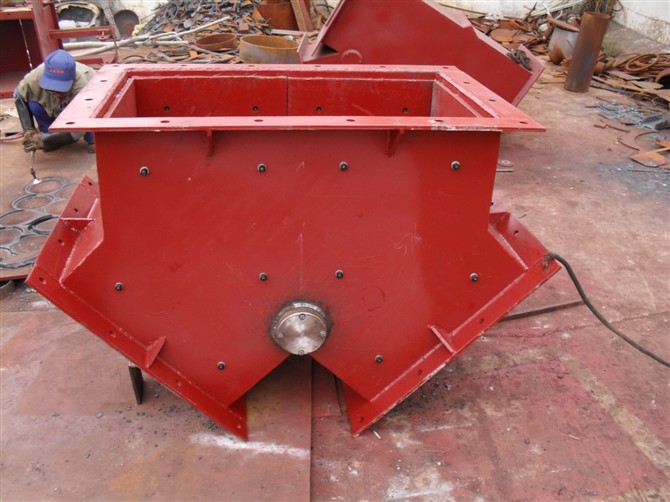

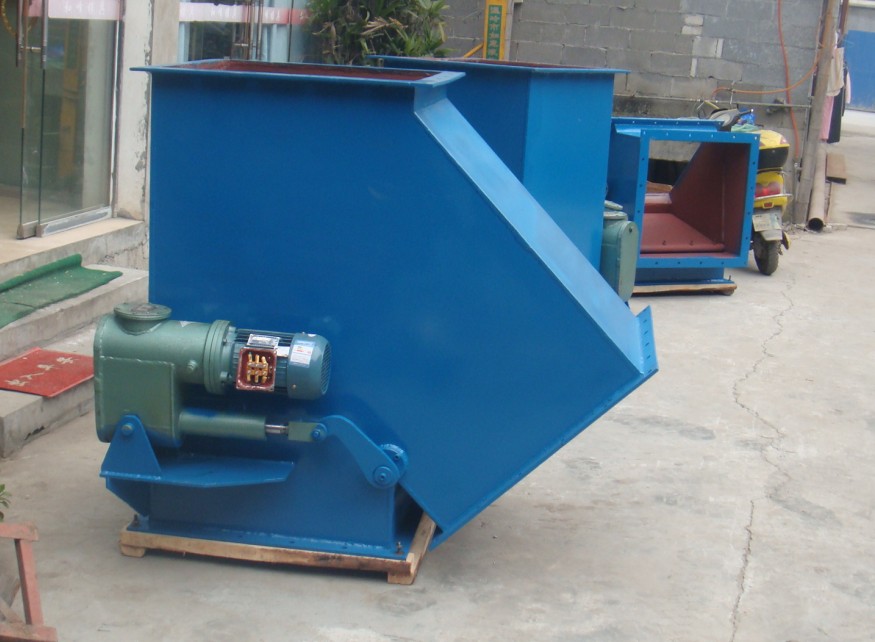

DSF-500 Electrohydraulic Three-way分流Valve, Three-way Directional Control Valve, Coal Silo Three-way Valve

Electro-hydraulic three-way分流阀简介

1. The three-way diverter is suitable for various bulk materials such as ores, coal, coke, slag, and chemical products with a bulk density of ≤2.5t/m³. When used under corrosive or high-temperature conditions, the material of the gate can be replaced. In explosion-proof areas, the XDGB type electro-hydraulic push rod or DYQB type explosion-proof electro-hydraulic rotary actuator can be used.

2. The A & B type tee distributors can directly connect the upper flange to the bottom of the hopper at the head of the belt conveyor or at the feeding interface of other equipment. The C, D, and E type tee distributors have the same connection method, but they are generally used under conditions of a heap density ≤ 2.8 t/m3, with high abrasiveness and harsh working environments. Their structure and dimensions are larger (liner plates are also thicker), making them heavier, and additional support is required based on actual usage. The A, B, C, D, and E type distributors can all achieve bidirectional switching and分流 of materials.

Electro-hydraulic Three-way分流阀Product Features

1. Well-designed, with complete specifications and models, featuring a series of products for easy selection, strong versatility and comprehensive compatibility, simple operation, and easy maintenance.

2. If all gates are powered by electro-hydraulic rotary actuators or electro-hydraulic push rods, they can achieve rapid and flexible opening and closing, with the ability to start under load and overload protection. This helps prevent motor burnout, ensuring smooth and reliable operation. The entire unit is compact, lightweight, energy-efficient, low-noise, and easy to install.

3. Full-liquid power transmission, with both thrust and pull force capable of infinite adjustment, offering a wide range of driving power. Adjust reciprocating stroke, position locks automatically, control gate flow by adjusting the gate opening.

4. Low investment. Due to the standardized and serialized design of all gate models, cost reduction is facilitated. Each gate unit can be equipped with one or several electro-hydraulic rotary drives or electro-hydraulic push rods, enabling full hydraulic transmission. No separate hydraulic station is required, and there are no auxiliary equipment.

5. Wide Application Range. Considering the gate may operate in various environments, the design has maximized the range of gate models, specifications, types, and series to ensure comprehensive compatibility, making it suitable for the storage and transportation of bulk materials in various industries.

6. The distributed material gate is equipped with an electrically powered rotating drive or electric hydraulic actuator, which can achieve stroke control and signal display; centralized control without stroke and digital display; or 4-20mA microcomputer control for a wide range of applications.
