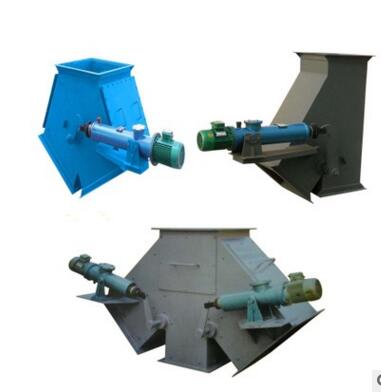

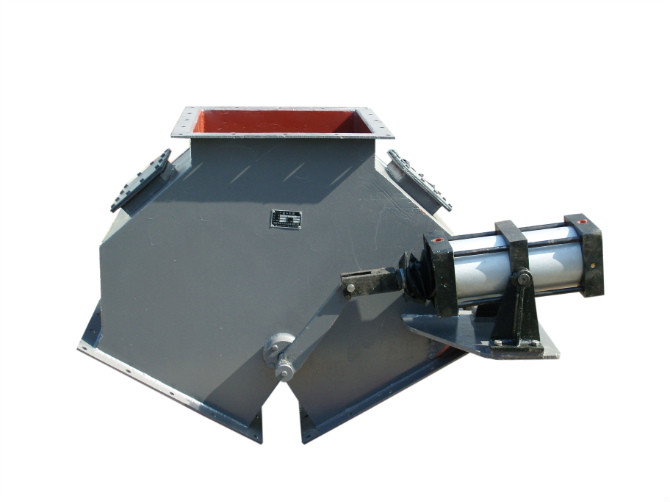

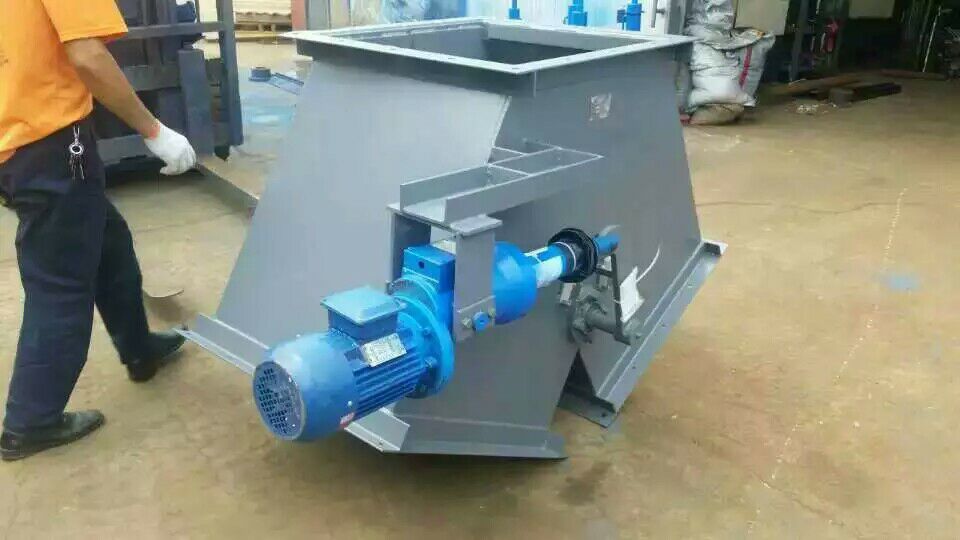

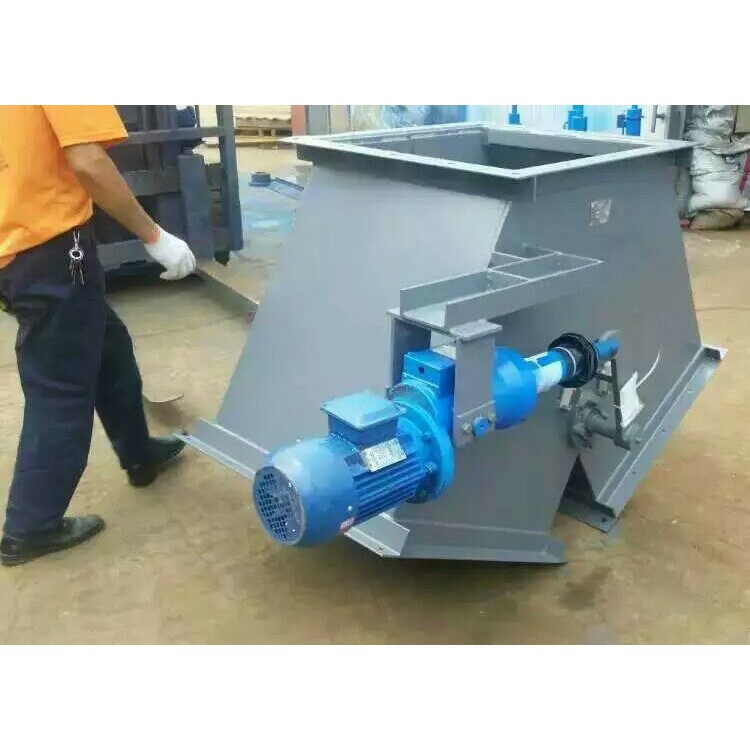

DSF-500 Electro-Hydraulic Three-Way Dividing Valve, Three-Way Butterfly Valve, Mine Three-Way Discharge Valve

Electro-hydraulic Three-way Diverting Valve Brief Introduction

1. The three-way diverter is suitable for various bulk materials such as ore, coal, coke, slag, and chemical products with a bulk density of ≤2.5t/m3. When used under corrosive or high-temperature conditions, the material of the gate can be replaced. In explosion-proof areas, the XDGB type electro-hydraulic actuator or DYQB type explosion-proof electro-hydraulic rotating drive can be used.

2. The A & B type Tee Diverters can directly connect the upper flange to the bottom of the hopper on the conveyor head or to the discharge interface of other equipment. The C, D, and E type Tee Diverters are connected in the same manner, but they are generally used under conditions of a bulk density ≤ 2.8t/m3, with high abrasiveness and harsh working environments. Due to their larger structural dimensions (including thicker liners), they are heavier and require additional support based on actual conditions. Both the A, B, C, D, and E type Tee Diverters can achieve bidirectional material switching and分流.

Electro-hydraulic three-way分流阀产品特点

1. Well-designed, with complete specifications and models, the product series is easy to select. It boasts strong versatility and comprehensive compatibility, simple operation, and ease of maintenance.

2. If all gates are equipped with electro-hydraulic rotary drives or electro-hydraulic actuators as power sources, they offer fast and flexible operation, along with load-starting capability and overload protection. This prevents motor burnout, ensuring smooth and reliable equipment operation. The entire unit is compact, lightweight, energy-efficient, low-noise, and easy to install.

3. Full-liquid power transmission, with infinite adjustment for both thrust and pull forces, offering a broad range of driving power. Adjust reciprocating stroke, position locks automatically, control gate flow by adjusting the gate opening degree

4. Low investment. Due to the standardized design and serial production of all models of gates, it is beneficial to reduce costs. Additionally, a single gate can be equipped with one or several electro-hydraulic rotating drives or electro-hydraulic push rods to achieve full hydraulic transmission. No need for a dedicated hydraulic station or any auxiliary equipment.

5. Broad Application Range. Considering that the gate may operate in various environments, the design has maximized the range of gate models, specifications, types, and series, ensuring a comprehensive matching design. This allows for widespread application in the storage and transportation of bulk materials across various industries.

6. The distributed material gate is equipped with an electrically powered rotating drive or an electro-hydraulic actuator, which can achieve stroke control and signal display; centralized control without stroke and digital display; or 4-20mA microcomputer control for a wide range of applications.
