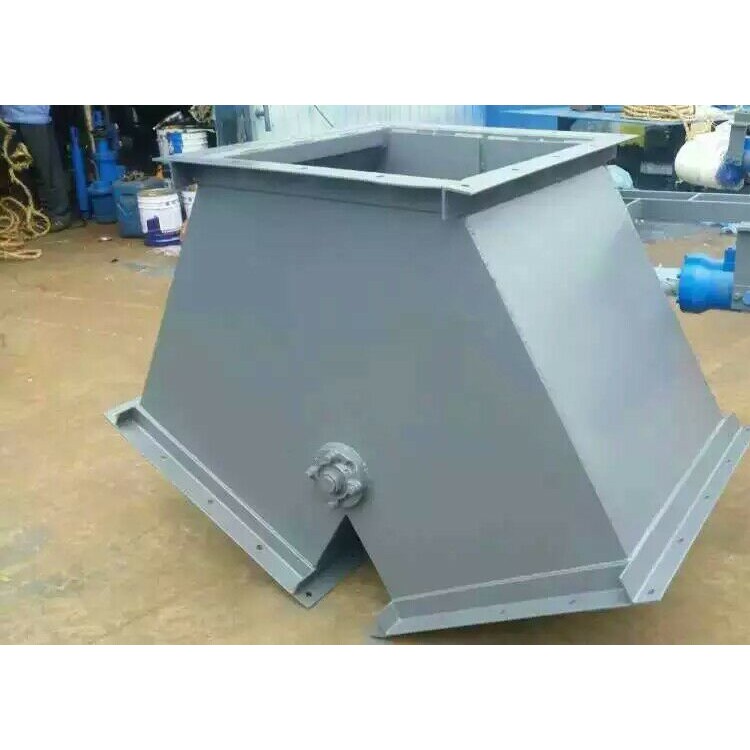

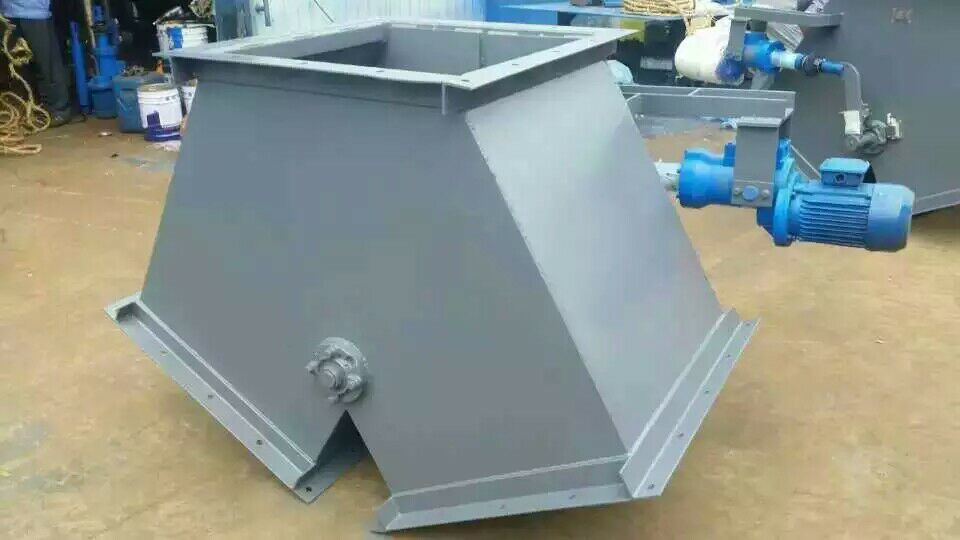

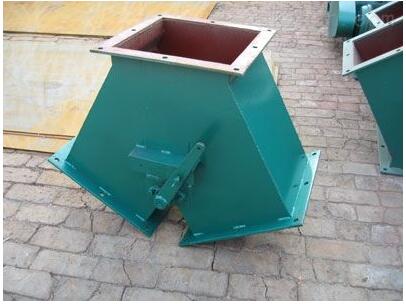

Discharge Valve STF-400 Electro-hydraulic Three-way Diverting Valve Mining Three-way Chute

The electro-hydraulic three-way分流阀 is a new series developed by our factory, based on market demands and multiple improvements. It utilizes electro-hydraulic actuators (hydraulic actuators), electro-hydraulic rotary actuators, cylinders, and hydraulic cylinders as actuators. It is an ideal equipment for achieving quick material direction changes in material conveying systems and is widely used in the transportation of solid particles and powdered materials in industries such as construction materials, metallurgy, mining, light industry, power, and grain.

Features

   This product utilizes   Carbon steel plate welded structures, featuring compact size, light weight, and low resistance. Driven by electro-hydraulic push rods, they operate smoothly, have a low failure rate, and can quickly switch material flows.

 Accepts signals from tuning or transmitters for automatic control.

Working Principle

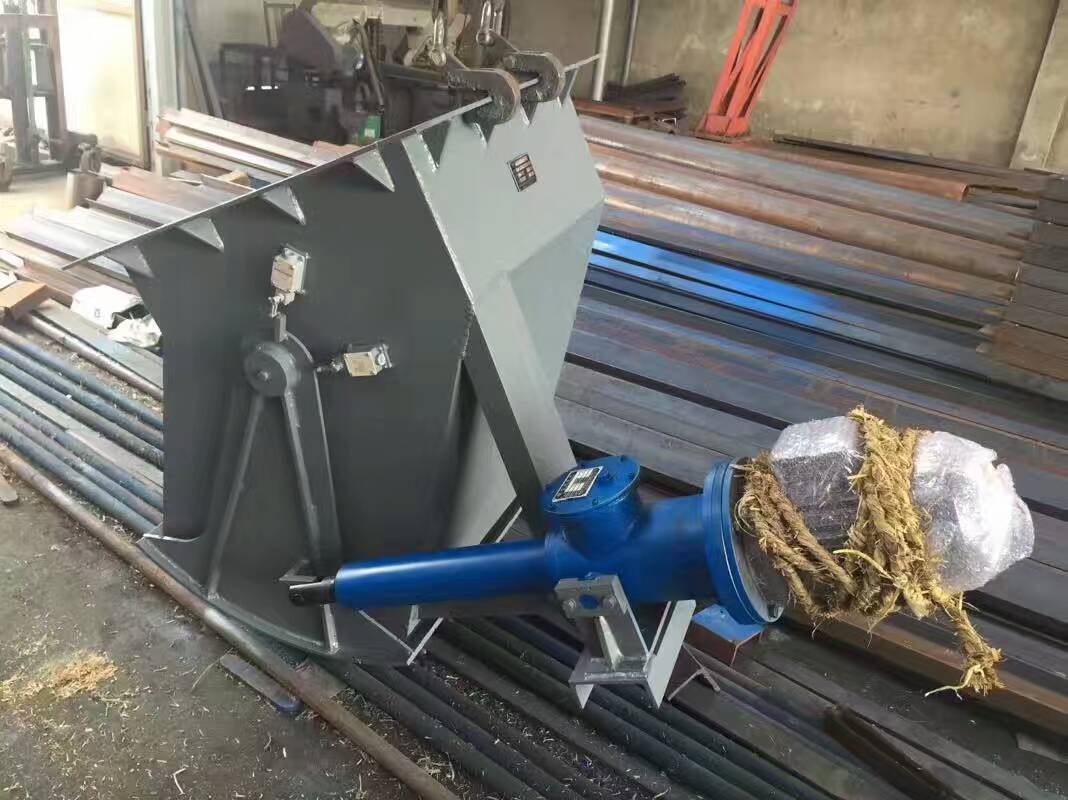

    The product is mainly composed of the valve body, valve shaft, valve plate, crank mechanism, and electro-hydraulic push rod. During operation, the linear reciprocating motion of the electro-hydraulic push rod is transmitted through the crank mechanism to drive the valve shaft and valve plate.  Angle orientation

 Actuates to convey materials, control the flow and flow rate of materials.

Product Name: Electric Three-Way Diversion Valve,Electric Side Tee Divert Valve

Product Specifications:200*200-1000*1000

Applicable Medium: Powder, dusty solid particles

Operating Temperature:≤350℃

Power Voltage:380V 50HZ

Air Source Pressure:0.4-0.6MPa

3Model Numbering Guidelines

DElectric Push RodS— ManualDyElectro-hydraulic Push RodQ— Pneumatic Push Rod

FcMaterial Distribution Valvea— Cutting Angle

Ⅰ—Three-way Tee Ⅱ—Straight Tee Ⅲ—Four-way Tee (Two In, Two Out) Ⅳ—Four-way Tee (One In, Three Out)

4Product Features and Working Principle

        Three-way分流阀 utilized   Welded steel plate structure, featuring compact size, light weight, and low resistance. Electric push rod used(Electro-hydraulic and pneumatic push rods)Drives that allow for quick switching of material flow.
