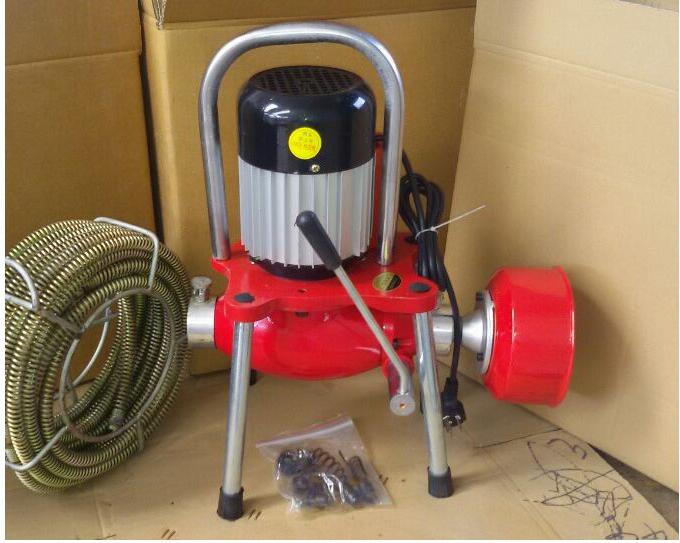

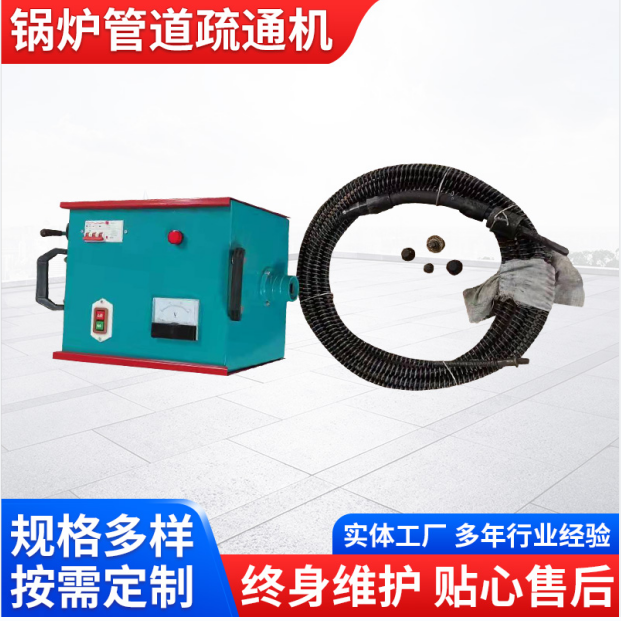

Boiler Pipe Cleaning Machine, Boiler Tube Cleaning Machine, 2.2kW Electric Auger

Boiler pipe descaling machine, boiler pipe cleaning machine Boilers, after being in use for a period, will accumulate soot and scale inside the flue pipes and water pipes, which can reduce the lifespan and thermal efficiency of the boiler.   Reduce fuel consumption. This machine is for  Scale on boilers and the like   Function: It is currently an ideal descaling equipment; the machine can also be used for cleaning and unblocking pipes in various industries such as chemicals, rubber, and cold storage.

  Pipe connection methods, overcoming the previous defect of easy fractures at the joints, extending the service life of the pipeline, Reliable performance, sturdy and durable, easy to operate, hoses used   Construction, easily replaceable flexible shaft; also equipped   Alloy drill bits, capable of clearing blocked pipes and boiler tubes.

Cautionary Notes ：

One, Before operation, please test the main unit in the direction indicated by the arrow to ensure the direction of rotation is correct, then connect the hoses.

Two, Maintain the flexibility of the hoses  Large bend, avoid sharp turns. Insert the drill bit into the pipe first, then start the motor, while simultaneously adding water for flushing. Do not drill dry. After completing one pipe, shut off the motor and pull out the hose.

Three, Washing time Guards are assigned to monitor the switches. Once the motor starts, the hand must not leave the (stop) button. If, during cleaning, the hose starts to jump violently or jams, shut off the machine immediately, pull out a little of the hose, and then restart.

Four For blocked furnace tubes or those with severe blockages, use an in-and-out cleaning method to prevent the hoses from jamming; do not force them in.

V. After cleaning, the hose should be promptly washed clean, lubricated with grease or oil, and then laid flat.

 Large cleaning diameter 80mm

RPM$14 per minute

Power1.5 kW

Flexible shaft diameter 13mm

Flexible shaft length 8m 10m 12m

Insulator Diameter 18mm

Blade Tip 23mm 29mm 35mm 45mm (   Custom specifications available)
