3 Working Principle

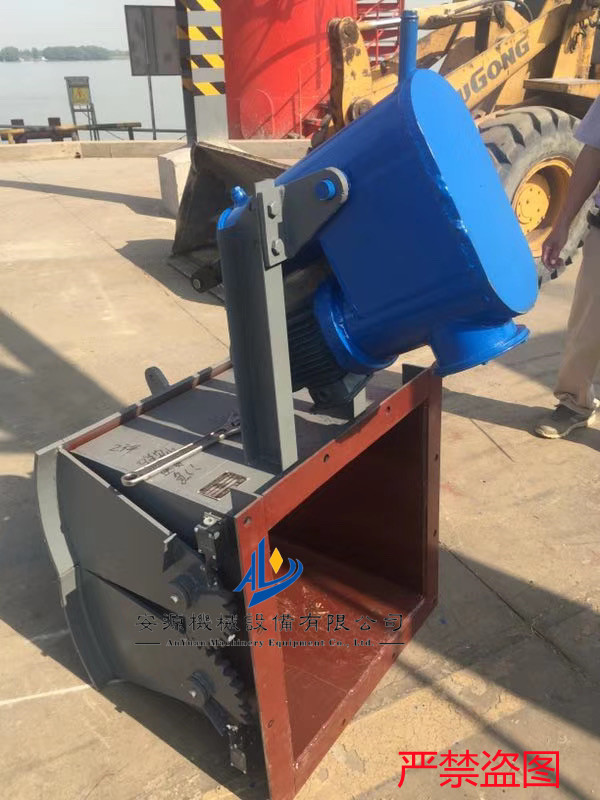

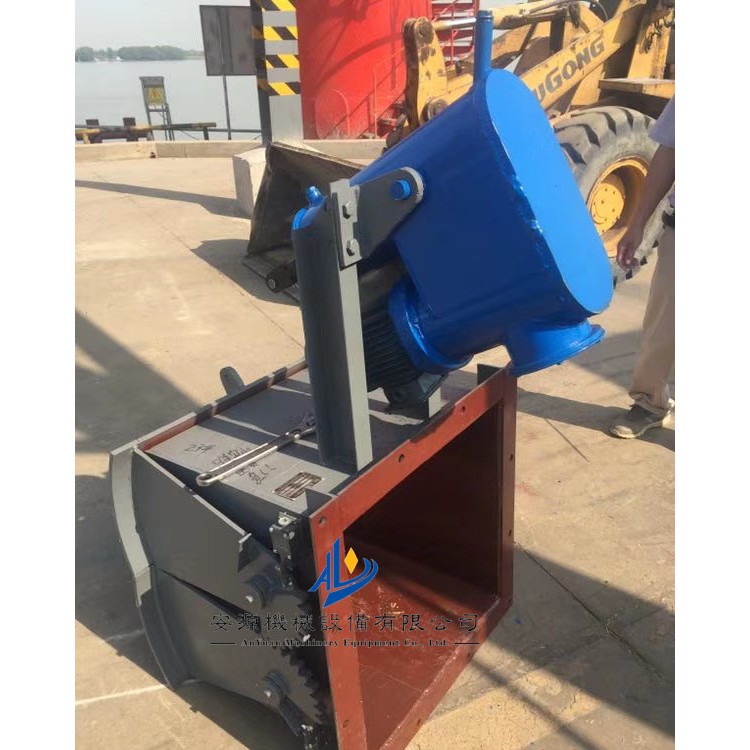

The hinge gate utilizes an electro-hydraulic push rod, featuring full hydraulic transmission with adjustable push and pull forces. Either manually or by an actuator, the lever is pushed, causing the gears to rotate the sector gate around the axis, opening the two sector gates to the sides, allowing materials to fall. Once the receiving device is fully loaded, the actuator drives the lever again to reset the sector gate, closing off the falling material.

4. Usage Instructions

Bib Gate[2] Please note the medium flow direction marked on the gate body during installation. When connecting the two flanges, a sealing gasket must be added and then the bolts must be tightened evenly. Secondly, during operation, identify the opening and closing direction of the gate plate. Ensure the actuator is properly wired. It is crucial to regularly apply lubricant to all transmission parts during operation to extend the service life of the gate valve. Improper operation will increase the wear on the gate valve.

5 Uses

Bib GateSuitable for various bulk materials such as ore, coal, coke, slag, chemical products, etc., with a specific gravity of ≤2.5t/m³, widely used in the bottom unloading of storage for industries such as building materials, metallurgy, chemicals, and glass.
