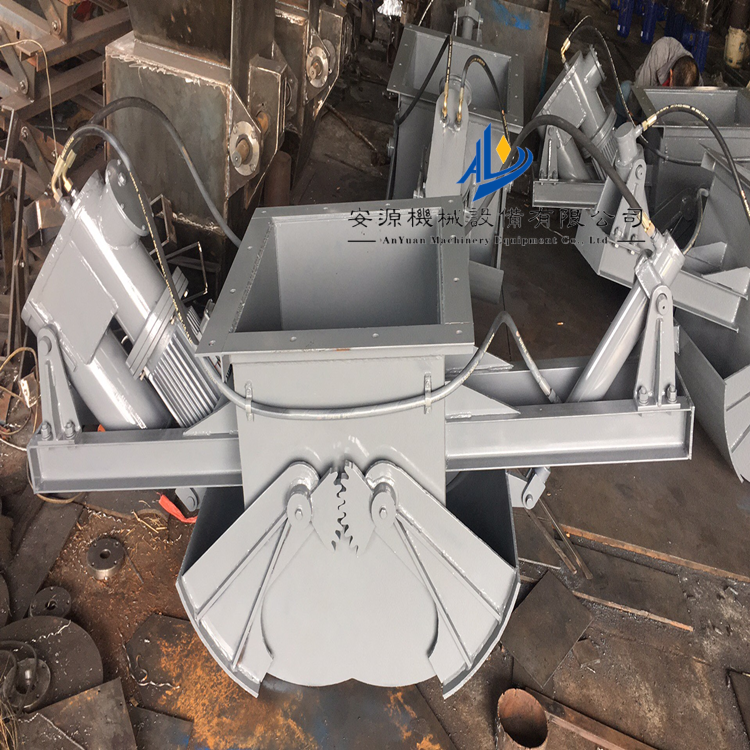

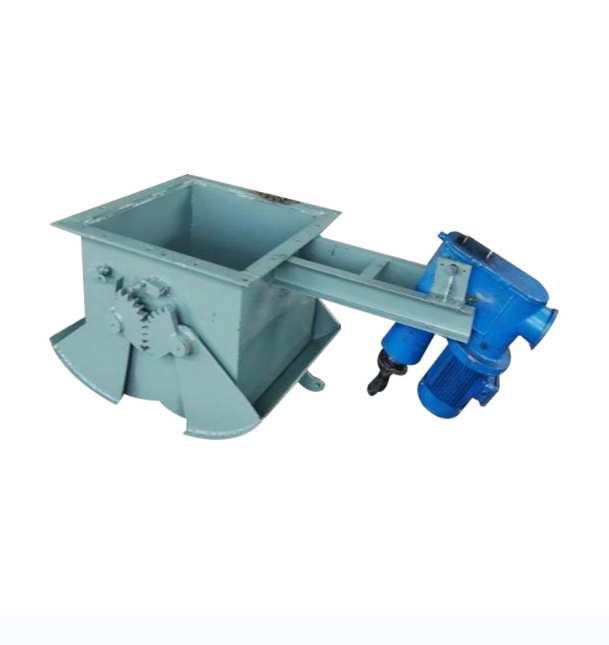

DEZ-100 Electric-Hydraulic Jaw Type Gate, Coal Silo Discharge Valve

Electromagnetic hydraulic flap gate with power failure reset is widely used in construction materials, metallurgy, mining, power, chemical industries, and serves as the unloading control device for various material discharge systems.

Structural Features

Easy to install, directly mounted below the material storage. Powered by electro-hydraulic actuators, compact design, and convenient for installation. Smooth operation, low failure rate, capable of quickly cutting off the material flow. During power outages, the electro-hydraulic actuator can automatically reset and close the gate to prevent spills.

Operating Principle

With power interruption resetElectro-hydraulic sliding gateThe unit is composed of main body, power-off reset electro-hydraulic push rod, sector gate, shaft, gears, seals, actuator, etc. The operation of the electro-hydraulic push rod causes the gears to rotate the sector gate around the axis, opening the two sector gates to the sides, allowing the material to fall. After the receiving device is fully loaded, the electro-hydraulic push rod resets the sector gate to close off the falling material.
