DSZ500 Dust Discharge Valve for Material Storage Room500 Electro-Hydraulic Actuated Butterfly Valve, Electro-Hydraulic Actuated Push Rod
Lip gates are suitable for bulk density≤2.5t/m3A variety of ore, coal, coke, slag, chemical products, and other loose materials, widely used for bottom unloading in storage for industries such as building materials, metallurgy, chemicals, and glass.
Structural Features:

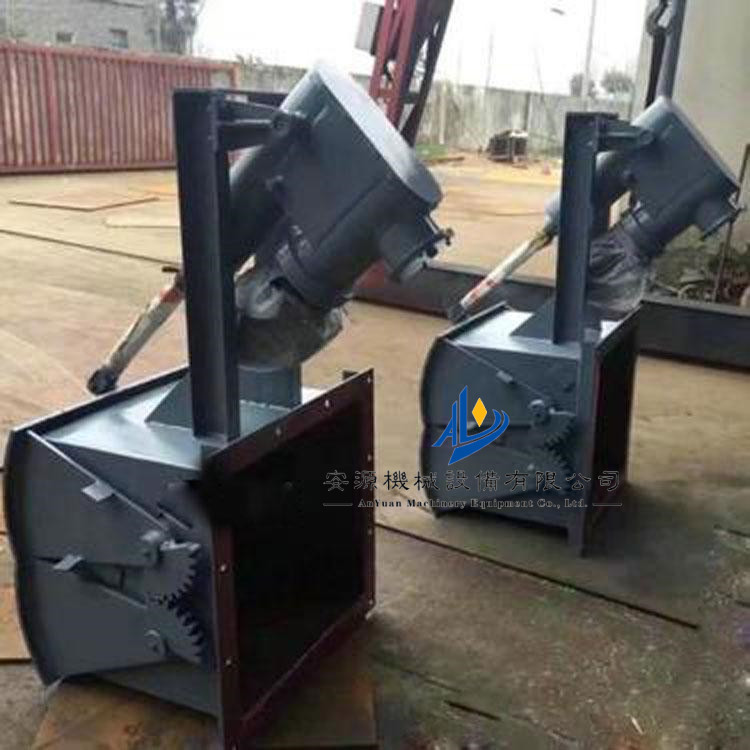

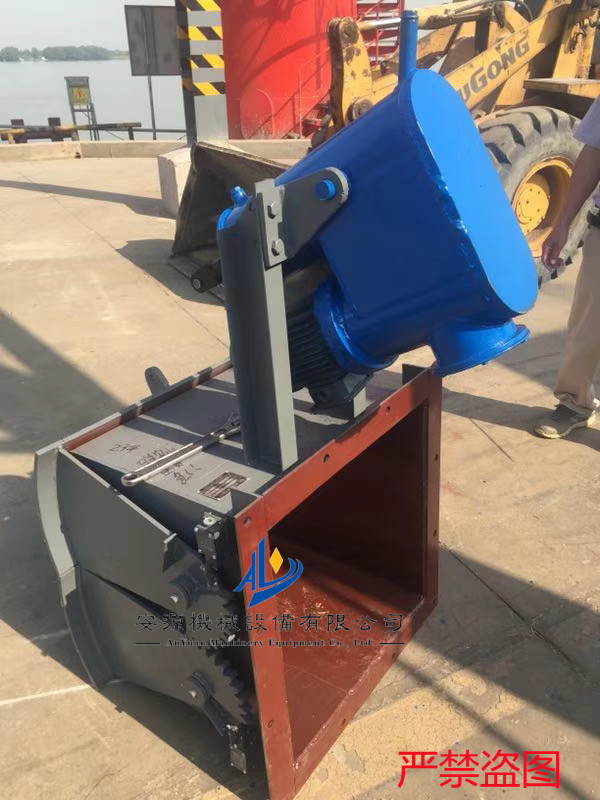

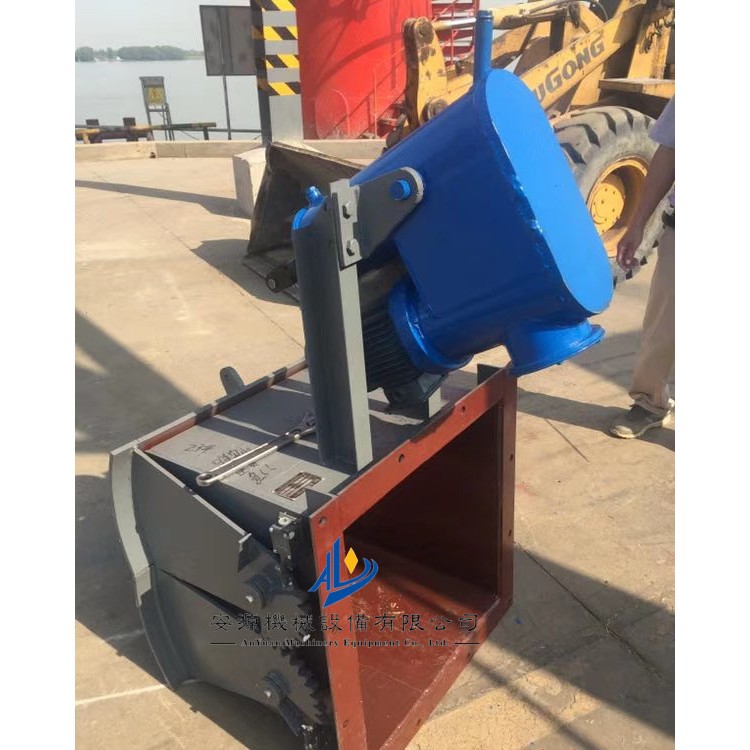

Pulley gates are made of carbon steel welded into a unique structure, offering flexible and reliable operation with no jamming. They can be paired with different drive systems to meet various working conditions. Electric jaw gates use electric actuators with overload protection to prevent motor damage, allowing for remote operation or programmable control, with reciprocating strokes that can be adjusted for position locking. Electro-hydraulic jaw gates are equipped with electro-hydraulic actuators and full hydraulic drive, allowing for variable speed adjustment of both pushing and pulling forces. Pneumatic jaw gates use pneumatic actuators, which can be remotely controlled or locally operated through accessory combinations.SEFFor manual,DEFFor electricYEFFor electro-hydraulic operationQEFPneumatic.
Performance Parameters
Applicable Temperature(℃) | Bulk Densityt/m3） | Applicable Medium | ||||||||||
≤300 | ≤2.5 | Crystalline solids, coal, coke, slag, chemical products, and various ores | ||||||||||
Operating Principle:

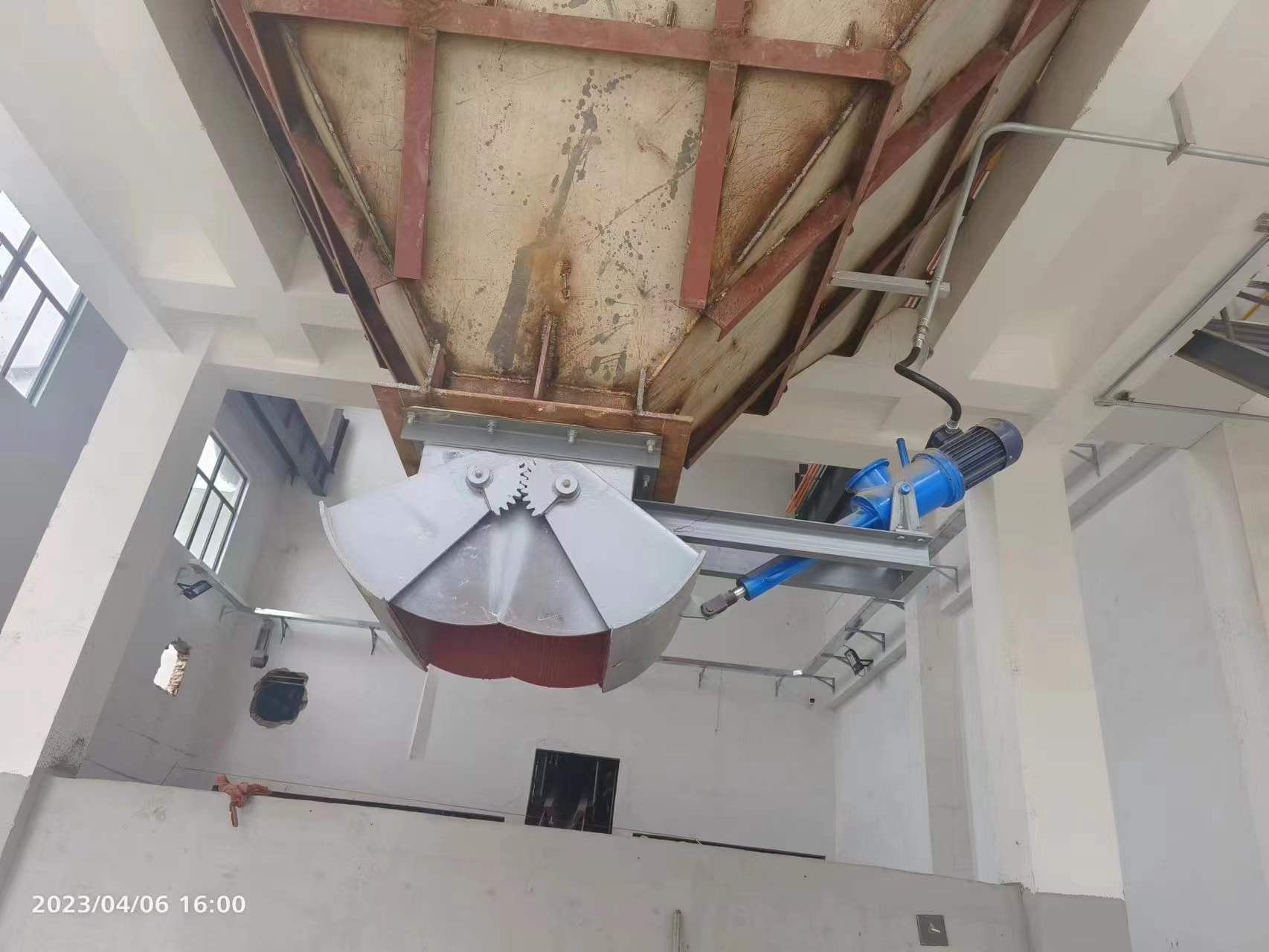

The gate valve consists of components such as the main body, a sector gate, shaft, gears, seals, and the actuating mechanism. By manually operating or through the actuating mechanism, the lever is pushed, causing the gears to rotate the sector gate around the shaft, thereby opening the two sector gates to the sides, allowing the material to fall. Once the receiving device is fully loaded, the actuating mechanism again moves the lever to reset the sector gate, closing off the falling material.
Instructions for Use:
l Please note the medium flow direction marked on the gate body during installation. When connecting the two flanges, it is essential to add a sealing gasket, then evenly tighten the bolts.
l Ensure you identify the direction of the butterfly valve switch during operation, and correctly wire the actuator.
l Please regularly lubricate all drive components during operation.
