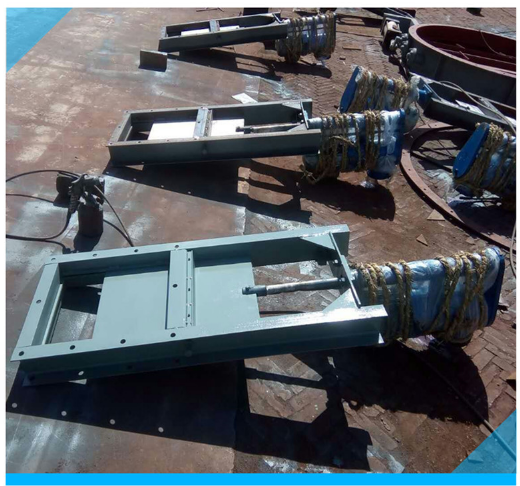

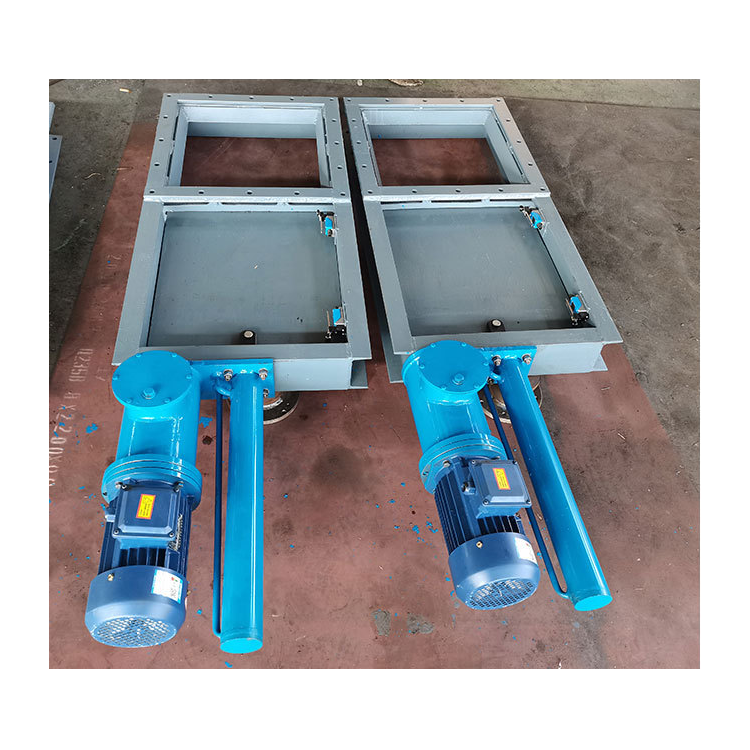

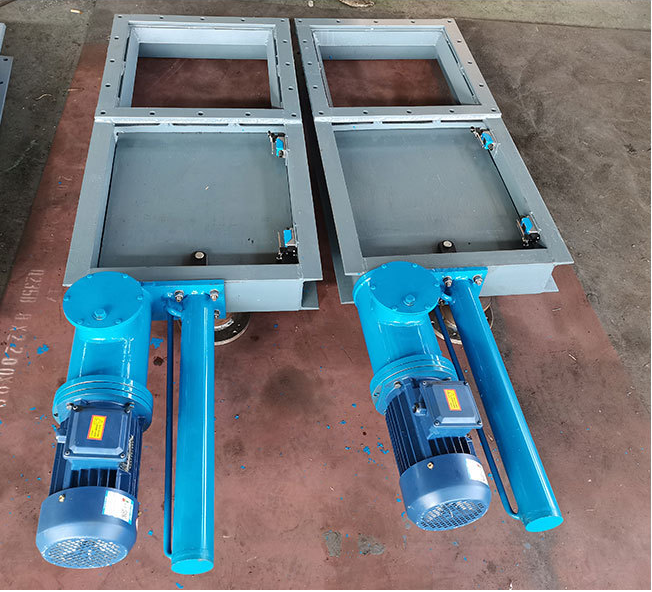

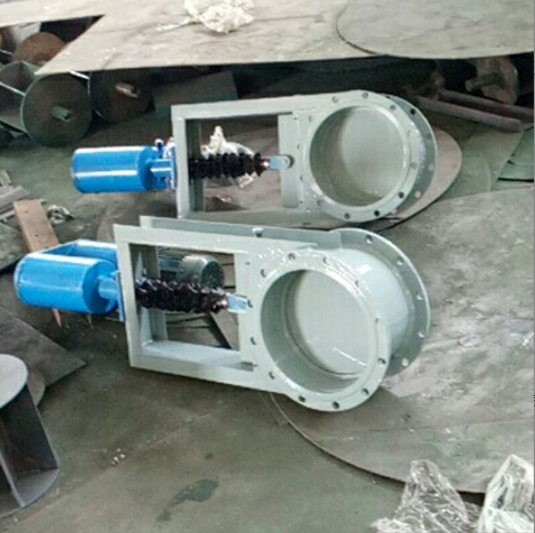

Electro-hydraulic Push Rod Plate Door, Manual Plate Valve, Bulk Storage Stop Plate Gate
Manual plug valveThe valve features a compact structure, excellent sealing, long service life, and easy maintenance. It is composed of upper and lower valve bodies, a pull plate, stainless steel screw, seals, bearing seats, and a handwheel. The valve body is a casting piece with high temperature resistance. Broadly applicable to pipelines and hoppers on dust flow control for industries such as building materials, metallurgy, mining, and chemical engineering.
Structure Description:
Key Technical Specifications:
Model | A | B | C | H | Open | Closed | Operating Temperature | N-φ | Nominal Pressurempa） |
Model 200 | 290 | 250 | 200 | 170 | 950 | 750 | ≤300℃ | φ13×8 | 0.6 |
Model 220 | 310 | 270 | 220 | 170 | 1010 | 790 | φ13×8 | ||
Model 240 | 330 | 290 | 240 | 170 | 1070 | 830 | φ15×8 | ||
Model 260 | 350 | 310 | 260 | 170 | 1130 | 870 | φ15×8 | ||
280 Model | 380 | 330 | 280 | 170 | 1190 | 910 | φ17×8 | ||
Model 300 | 400 | 350 | 300 | 170 | 1250 | 950 | φ17×8 | ||
Model 320 | 420 | 370 | 320 | 170 | 1310 | 990 | φ17×8 | ||
Model 340 | 440 | 390 | 340 | 170 | 1370 | 1030 | φ17×8 | ||
Model 400 | 500 | 450 | 400 | 170 | 1480 | 1080 | φ17×8 | ||
440 model | 540 | 490 | 440 | 200 | 1600 | 1160 | φ17×8 | ||
Model 500 | 660 | 610 | 500 | 200 | 1850 | 1350 | φ17×16 | ||
Model 600 | 730 | 680 | 600 | 250 | 2350 | 1750 | φ17×16 |
