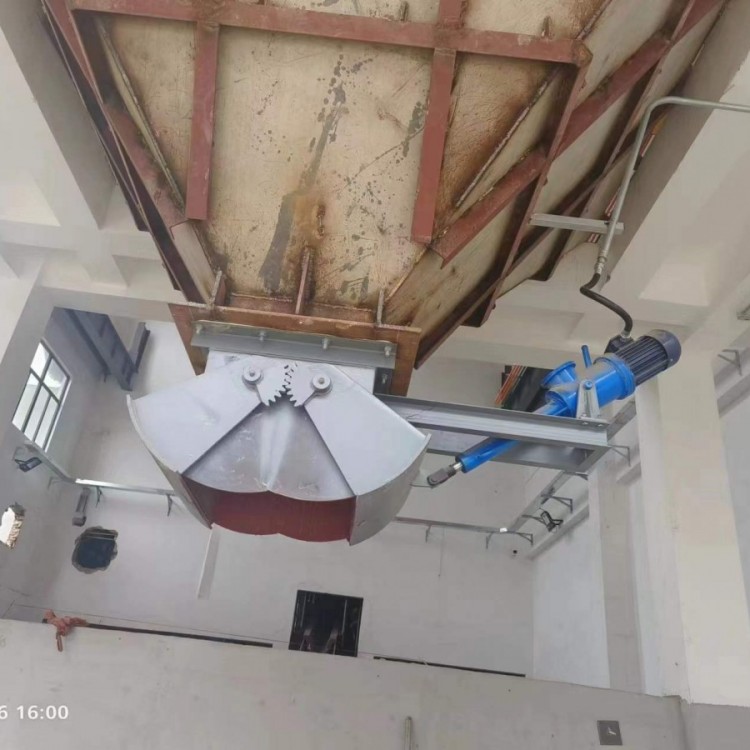

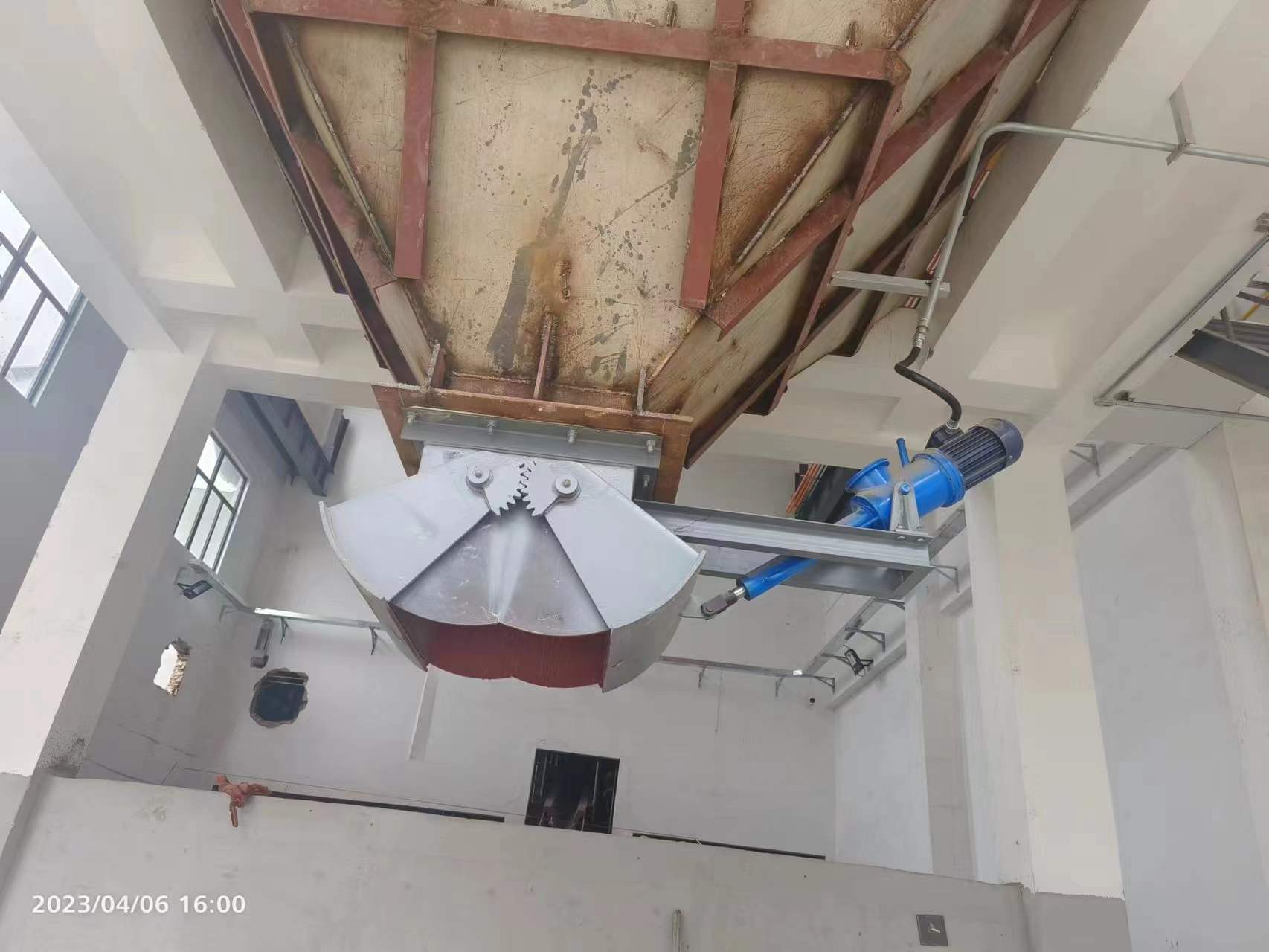

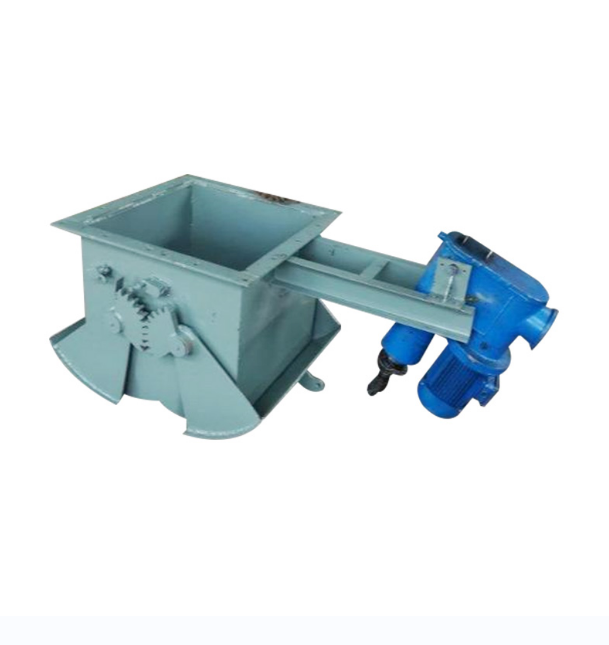

Electro-hydraulic Loading Gate DSF-600 Electric Sector Gate Coal Silo Arc Valve

Electro-hydraulic rod drive, smooth operation, low failure rate, capable of quickly cutting off material flow. Widely used in industries such as construction materials, metallurgy, mining, power, chemicals, light industry, and grain, serving as the unloading control device for various drop material systems.

Key Performance Parameters

（1Applicable Medium: Crystals, solid particle materials, powdered materials.

（2Application Temperature:≤300°C

（3Medium Flow Rate:≤28m/s

（4Power Voltage:380V50Hz

（5Adjustment Characteristics: Two-position switch

（6Electro-hydraulic Actuator Model:DGSeries Electric Push RodsDYTSeries Electro-Hydraulic Push Rods

The hydraulic-biased flap valve is made of carbon steel with welding forming, featuring a unique structure, flexible operation, and reliable performance without any jamming issues. It can be paired with different transmission devices to meet various operational requirements.

The electro-hydraulic diaphragm discharge valve is equipped with an electric actuator featuring an overload protection device, preventing motor burnout. It allows for remote operation or programmable control, and the reciprocating stroke can be adjusted for position locking.

The electro-hydraulic gate valve utilizes an electro-hydraulic push rod, featuring full hydraulic transmission, and both thrust and pull forces can be achieved with stepless speed adjustment.
