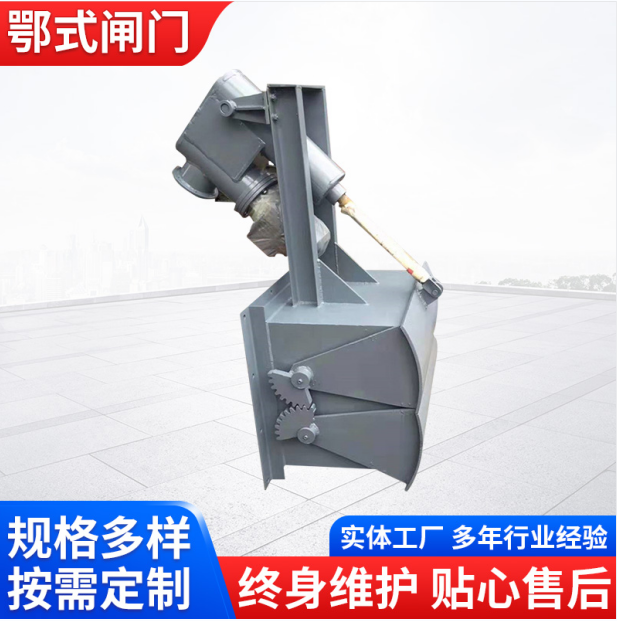

Electro-hydraulic sector gate, sector discharge valve (for construction, coal mining, chemical industry, metallurgy, etc.)

I. Model Description

EZ□□

 ┬ ┬ ┬

 │ │ │

 │ │ └─────────────Material in and out port dimensionsdm

 │ └──────────────-Drive Method1Electro-hydraulic Push RodY(N/A)2ManualS（3PneumaticQ

 └────────────────Electro-hydraulic flap gate

Structural Features and Applications:

   Hinged gate series features simple structure, easy operation, and material unloading  Long service life, flexible operation, utilizing   Welded from steel plates, driven by an electric (hydraulic) push rod for smooth operation and low failure rate, capable of quickly cutting off the material flow. Widely used in industries such as construction materials, metallurgy, mining, power, chemicals, light industry, and grain, it serves as the unloading control device for various drop-off systems.

Key Performance Parameters

（1Applicable Media: Crystals, solid granular materials, powdered materials.

（2Applicable Temperature:≤300°C

（3Medium Flow Rate:≤28m/s

（4Power Voltage:380V50Hz

（5Adjustment Characteristics: Two-position switch

（6Electro-hydraulic Push Rod Model:DGSeries electric push rodsDYTSeries Electro-hydraulic Push Rods

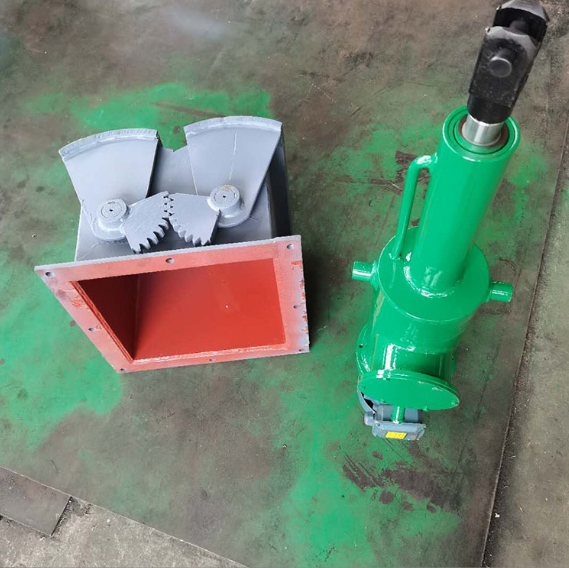

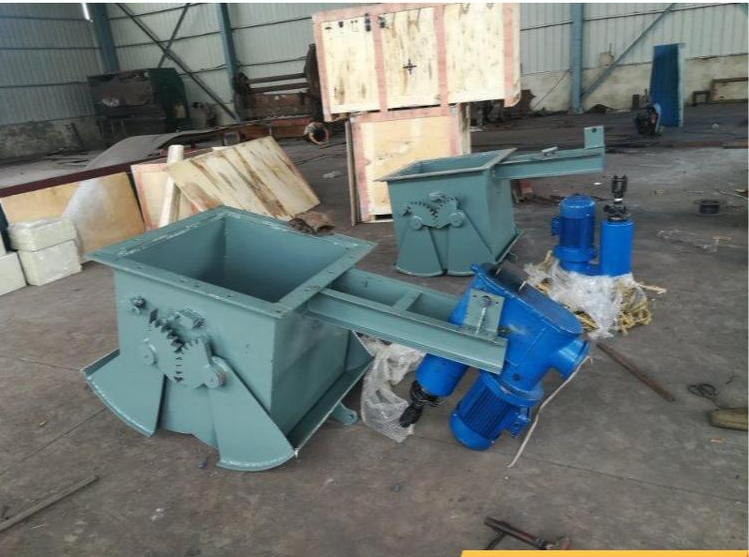

Electro-hydraulic bucket-style discharge valve utilizes   Carbon steel welded forming, structure Operates flexibly and reliably with no jamming issues. Equipped with different transmission devices, it can meet various operational requirements.

Electro-hydraulic bucket type discharging valve uses an electric actuator with an overload protection device, preventing motor burnout. It can be remotely controlled or programmed, and its reciprocating stroke can be Adjustable positioning with self-locking feature.

The electro-hydraulic bucket discharging valve utilizes an electro-hydraulic actuator, featuring full hydraulic transmission, and both push and pull forces can be adjusted continuously.

Electro-hydraulic bucket-type discharging valve structural features and applications:

This electro-hydraulic guillotine unloading valve features a simple structure, easy operation, and unloading  Long service life, flexible operation, and other features, widely used in metallurgy, building materials, mining, and power industries.

Pleated gates are the ideal control devices for various batching systems.
