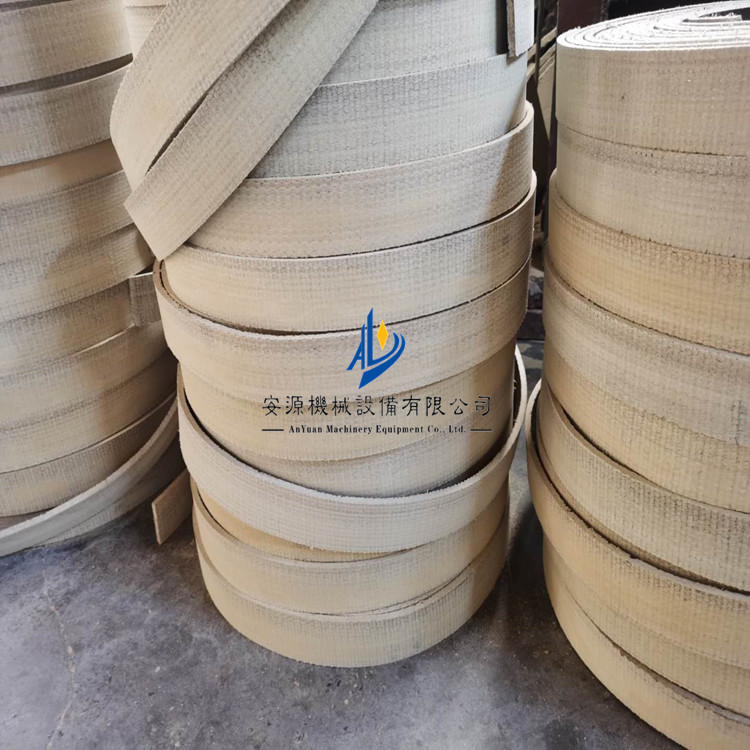

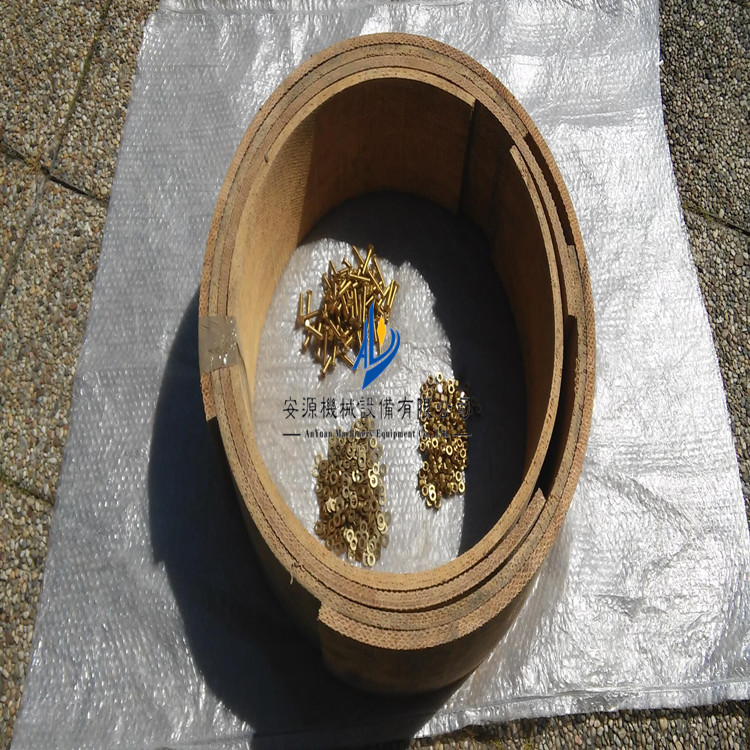

100*10mm Asbestos Rubber Copper Wire Brake BeltlatheEquipment brake pads Brake shoe
Product Technical Data:
One, Adopt Standard
1.GB/T 11834-2011
2. Braking bands for agricultural and industrial machinery, code ZD2
3. Braking pads for agricultural and industrial machinery, code ZP2
II. Performance Specifications
Main technical specifications are as follows:
1. Density: 1.80 ± g/cm³
2. Hardness: HRL 50-90 3. Bending Strength: ≥55 (N/mm²)
3、 High intensity:≥15（10-3mm／mm）
4. Friction and wear performance meets requirements:
Temperature: 100, 150, 200, 250, 300, then 100
Friction Coefficient: 0.45 ± 0.06, 0.45 ± 0.07, 0.45 ± 0.08, 0.45 ± 0.09, 0.45 ± 0.10, 0.45 ± 0.06.
Wear rate ≤0.18, ≤0.24, ≤0.20, ≤0.19, ≤0.26, ≤0.24.
Section 3: Key Product Advantages:
1. Appropriate and stable coefficient of friction
Coefficient of friction is a measure used to evaluate any type of friction material. Key performance indicators are crucial to the quality of the friction disc's transmission and braking functions.
2. ExcellentAbrasion-resistantPerformance
3. Excellent mechanical strength and physical properties
4. Wide application fields for products:
Brake blocks and various custom-shaped brake pads suitable for port, steel mill cranes, construction machinery, drilling equipment, hydro-turbine machinery, hydropower, wind power, ships, elevators, etc.
【Specs】Thickness (5-40" x width (30-400mm) x 8 meters per piece.
Product Performance: Bonded with pure rubber adhesive, free of... Adhesive with high bonding strength, good elasticity, high tensile strength, sensitive braking, low wear, excellent heat resistance, and good fitment. The braking belt features a high copper wire content, durability, and a high tensile strength.
【Application Range】Suitable for friction brakes in industries such as construction machinery, agricultural machinery, mining equipment, metallurgy, coal mines, ships, textiles, and food processing. Also widely used for transmitting torque in friction presses.
