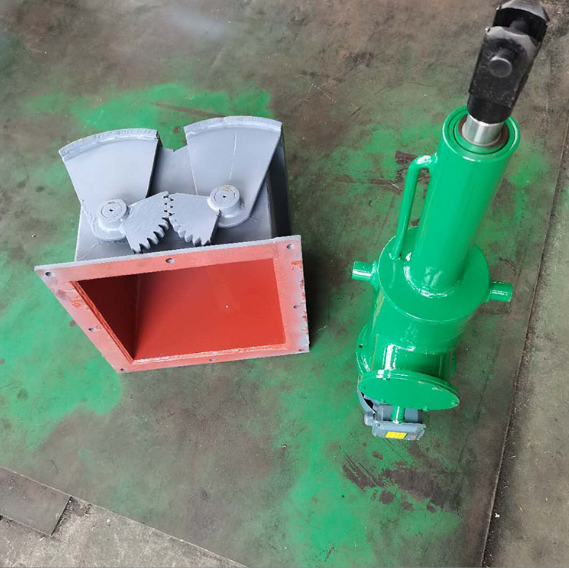

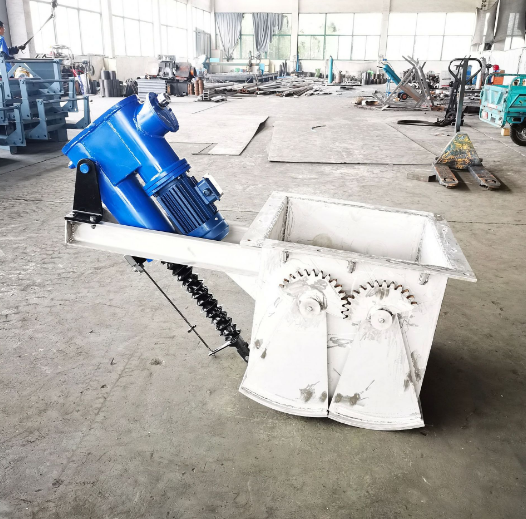

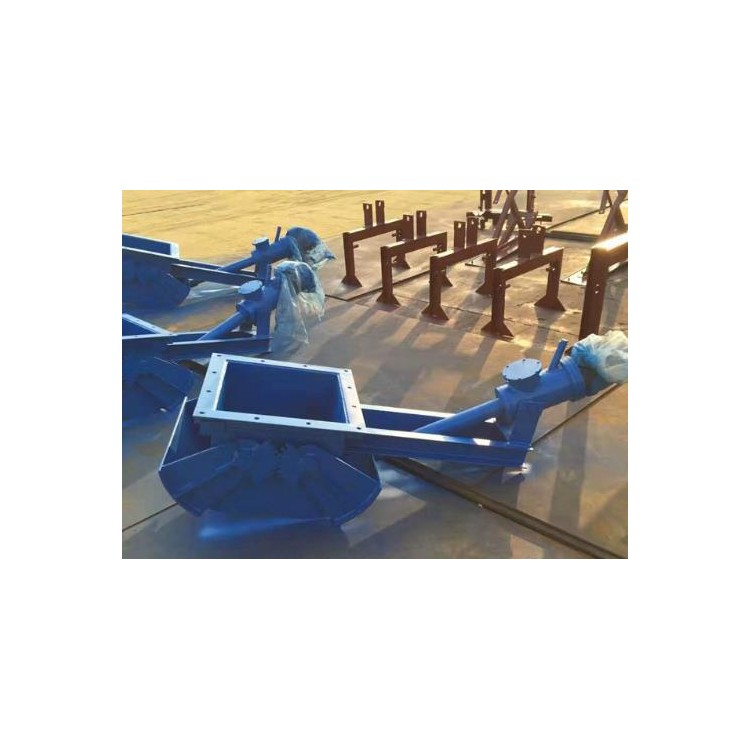

DSZXElectro-hydraulic sector gateAliasElectro-hydraulic sector valveSuited for flange size700mm to 1200mm openings, DSZX electro-hydraulic actuated sector gateElectro-hydraulic Push RodAs a drive, it is commonly used for discharging materials from coal silos (or other material storage silos).Loading gateAlso known as an annular loading gate, it falls under the category of intermittent loading gates.
Electro-hydraulic sector gate Basic Parameters
Alias:Electro-hydraulic sector valve | Main Material: Carbon SteelCustomizable | Power Voltage:380V, 50Hz* Customizable |
Drive Method:DYT Series Electro-Hydraulic Push Rod | Medium Flow Rate:≤28m/s | Applicable Temperature:≤300℃ |
Connection Type: Flanged Connection | Adjustable Performance: Variable Switch | Applicable Media: Solid granular materials, powdered materials |
Structural Features
1. Utilizes a split hydraulic cylinder actuator, offering high driving force, simple overall structure, smooth operation, low failure rate, and quick material flow cutoff.
2. The bilateral drive design ensures greater flexibility and reliability during the opening and closing of the gate, resolving the issue of the gate being jammed or stuck when using the original single-side drive.
3. By utilizing a power pack and two actuating cylinders for transmission, it significantly reduces the lateral space required and the instability of structural fixation during installation that was commonly associated with the original electro-hydraulic push rod drive.
4. Easy installation: Simply fix the electro-hydraulic actuator directly onto the gate body. It can be mounted as a component directly on the bottom of the material storage, eliminating the hassle of on-site positioning for users. Additionally, it is compatible with other gates of the same diameter and type.
5. Compared to the standard type of sector gate, the cost of use and maintenance is lower.
6. Particularly suitable for larger diameters, higher material density, and irregularly shaped material blocks that are prone to clogging. This structural design is a key product recommended by our company.
Technical Specifications Sheet
Model | Main Dimensionsmm） | Electro-hydraulic Push Rod Model | Power(KW) | |||
A | B | H | N×a | |||
DSZ-50A-III | 500 | 626 | 560 | 3×190 | YZW-l-530 | 1.5 |
DSZ-60A-III | 600 | 726 | 620 | 3×224 | YZW-l-630 | |
DSZ-70A-III | 700 | 826 | 720 | 4×193 | YZW-l-730 | |
DSZ-80A-III | 800 | 950 | 800 | 4×222 | YZW-l-835 | 2.2 |
DSZ-90A-III | 900 | 1050 | 880 | 5×198 | YZW-l-930 | |
DSZ-100A-III | 1000 | 1150 | 960 | 5×218 | YZW-l-1035 | |
*Note: The above data has been standardized and can be designed and manufactured according to customer requirements.
Selection and Ordering
1. Please specify material characteristics, such as particle size, humidity, and required throughput.
2. Due to varying electrical control requirements, electrical control components are not normally included. Please specify if required at the time of ordering.
3. For use in explosion-proof areas, explosion-proof electro-hydraulic actuators can be selected as the power source; for use in extremely cold regions, please specify.
