Vane Discharge Gate DEZ-500 Electro-Hydraulic Jaw Discharge Valve Hydraulic Sluice Gate
Brand:Anyuan Model:DSZ Material: Carbon Steel Connection Type: Flanged Applicable Medium: Crystalline Solids, Granular Materials, Powdery Materials Pressure Environment: Atmospheric Pressure Standard: National Standard Actuation Method: Electro-hydraulic Push Rod Operating Temperature: Ambient Specification: See Below Table Type (Port Position): Straight-Through Appearance: Medium Size

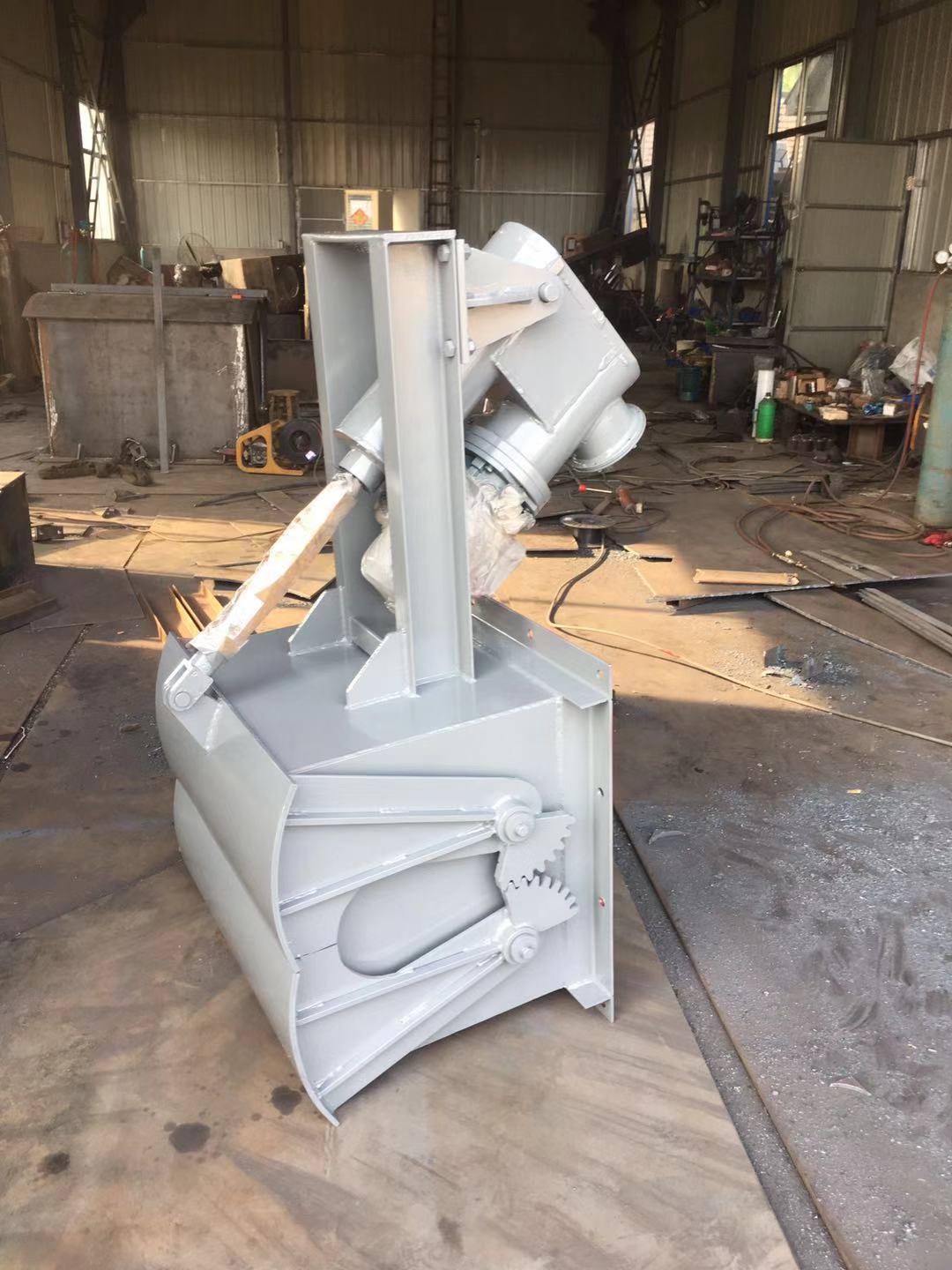

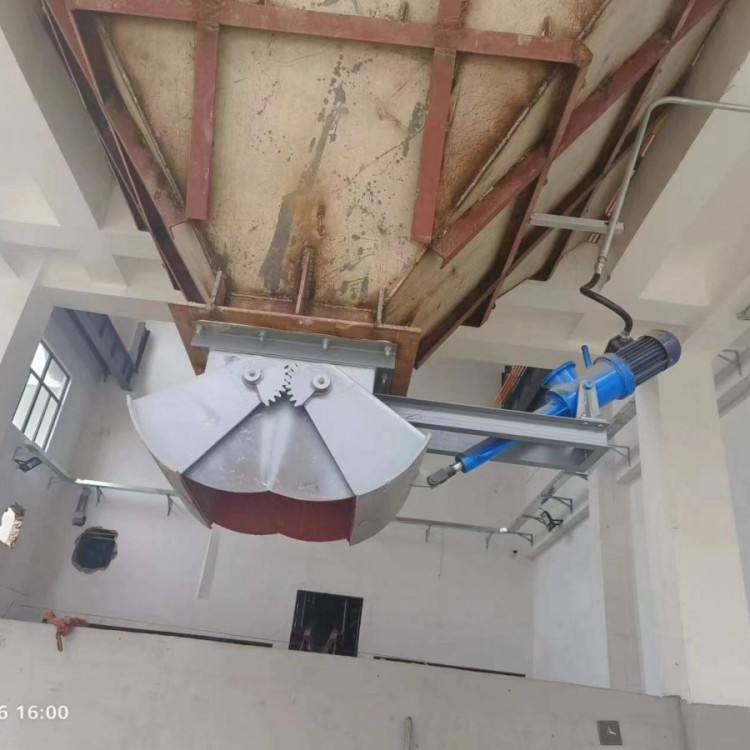

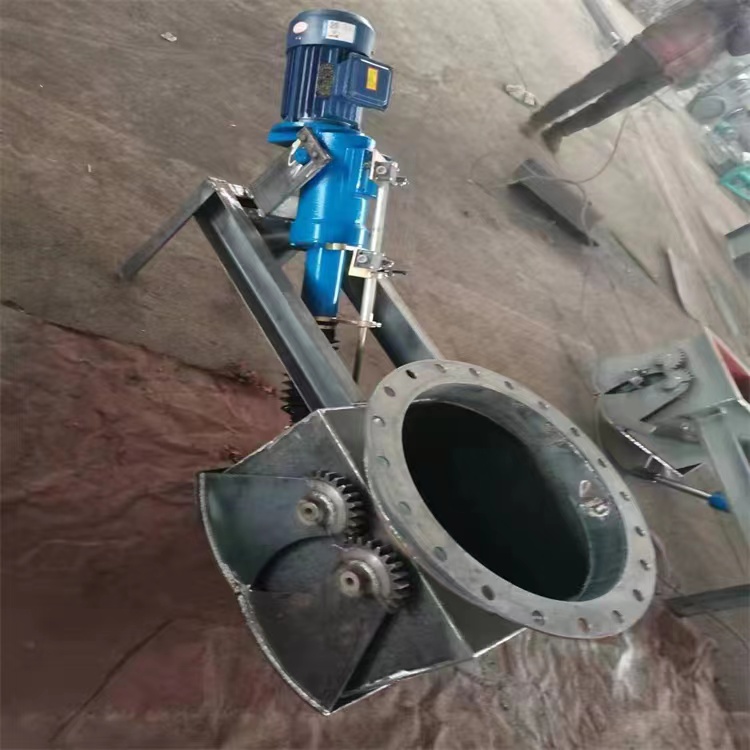

Operating PrincipleElectro-hydraulic sector gates are composed of the main body, sector gate plate, shaft, seals, and electro-hydraulic push rods, etc. The electro-hydraulic push rod drives the gear to rotate the sector gate plate around the shaft center, enabling the sector gate to... The gate opens to one side, allowing the material to fall. Once the receiving device is fully loaded, the electric-hydraulic push rod drives the sector gate back to its original position, closing off the falling material.
Standard models and hydraulic/electric push rods accessories
1. DEZ-A Type Electro-Hydraulic Scissor Gate
Model | Electro-hydraulic Push Rod Model |
DSZ-20A | DYT700-200 |
DSZ-30A | DYT700-260 |
DSZ-40A | DYT700-280 |
DSZ-50A | DYT1000-210 |
DSZ-60A | DYT1000-230 |
DSZ-70A | DYT1000-350 |
2. DEZ-B Type Electro-hydraulic Sluice Gate Parameters
Model | Electro-hydraulic Push Rod Model |
DSZ-20B45° | DYTZ700-130 |
DSZ-20B60° | DYTZ700-150 |
DSZ-30B45° | DYTZ700-150 |
DSZ-30B60° | DYTZ700-180 |
DSZ-40B45° | DYTZ700-180 |
DSZ-40B60° | DYTZ700-240 |
DSZ-50B45° | DYTZ1000-230 |
DSZ-50B60° | DYTZ1000-270 |
DSZ-60B45° | DYTZ1000-260 |
DSZ-60B60° | DYTZ1000-360 |
Structural Features
1. Simple structure
2. Runs smoothly.
3. Low failure rate;
4. Quick disconnection available.
The DSZ type electro-hydraulic butterfly gate is more convenient than the manual butterfly gate and more durable than the electric butterfly gate.
