Manual Sealing Plug Valve DPZ-500 Electric Actuator Flat Sluice Gate

Electro-hydraulic flat plate gates are now widely used in metallurgy, mining, construction materials, and other industries, serving as an ideal device for controlling dust material flow.

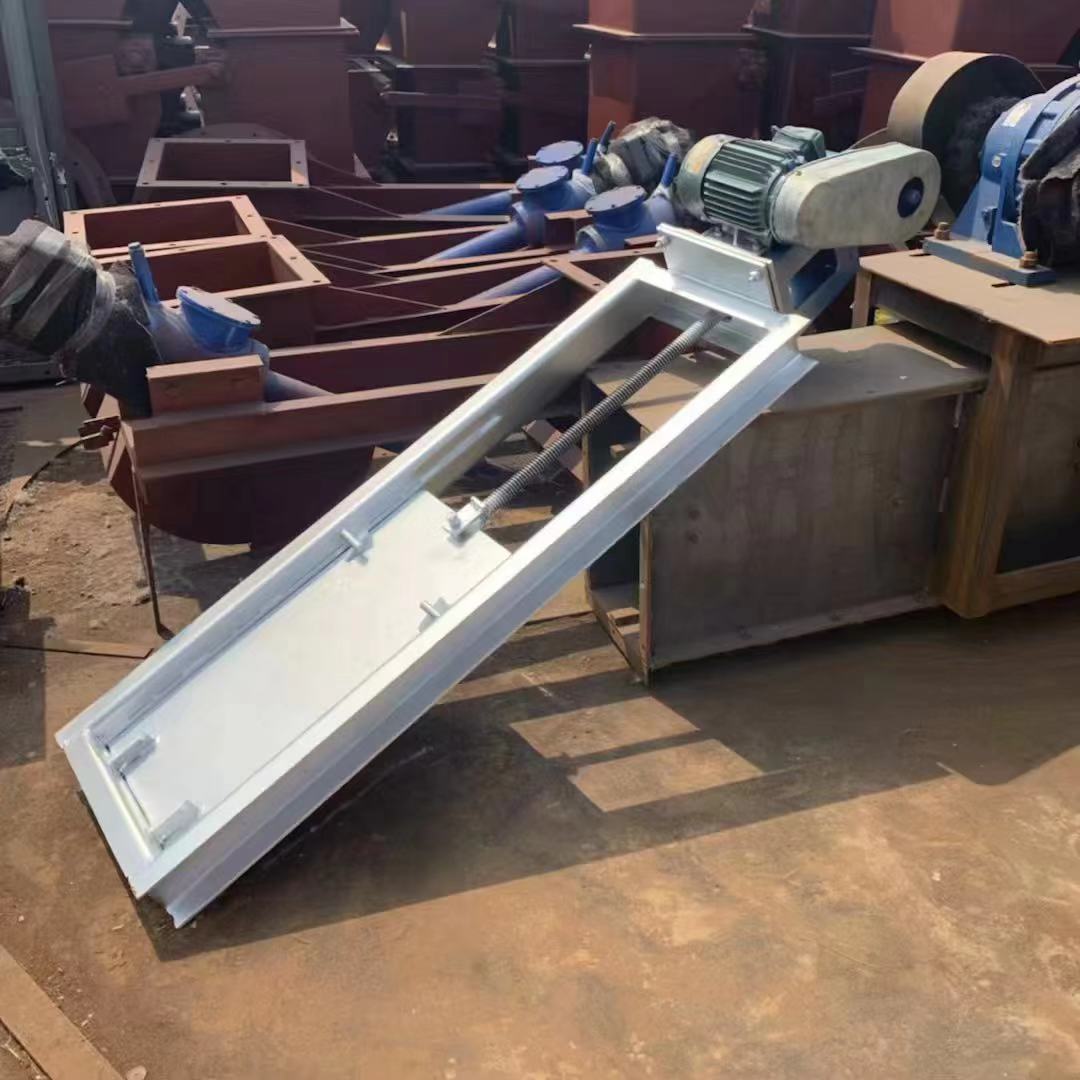

2. Working Principle: The electro-hydraulic flat gate is mainly composed of a frame, screw nut, handwheel (chain wheel), and gate plate. As the handwheel (chain wheel) rotates, the screw drives the screw nut and gate plate to move back and forth horizontally, achieving the purpose of opening and closing the valve.

3. Composition

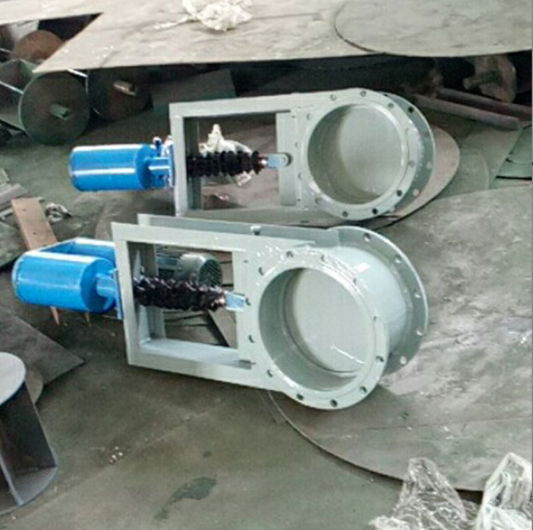

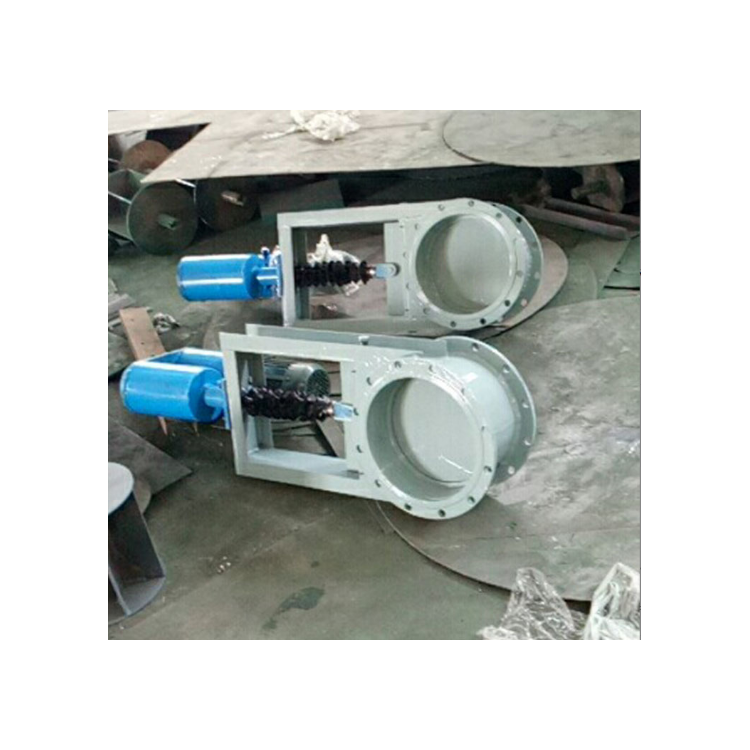

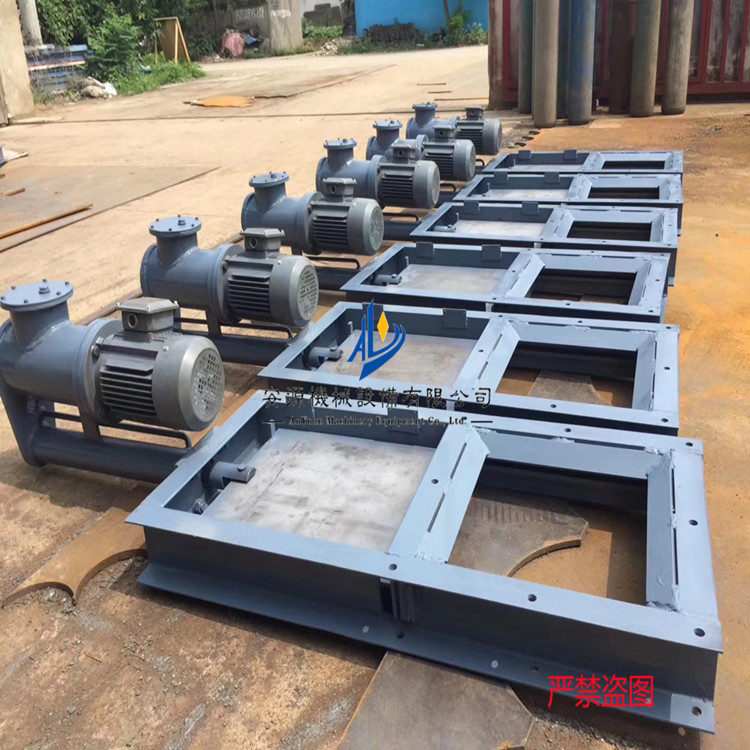

The electro-hydraulic flat gate is mainly composed of components such as the frame, gate plate, and electro-hydraulic unit.

4. Structural Features:

Electro-hydraulic flat gate structure is simple, operation is flexible, lightweight, free from jamming, and quick to cut off. It is particularly suitable for various solids and powders without viscosity, as well as granular materials with a particle size less than Φ10mm. It is ideal for conveying and flow regulation of granular materials, with installation not restricted by angle and easy operation, allowing for instant adjustment of the opening. The valve comes in two operating modes: a handwheel (Type I) and a chainwheel (Type II). It is available in two structural types: LZD for one-way and LZS for two-way.

5. Performance Parameters

Our company operates: Gate ValvesTDSZ—□ Type Electro-Hydraulic Butterfly Gate, DPZ Electro-Hydraulic Flat Gate, DEZ Type Electro-Hydraulic Sluice Gate, DSZ Type Electro-Hydraulic Butterfly Gate, Electric Butterfly Gate and its accessories

Electric hydraulicDYTP Parallel Electro-Hydraulic Push Rod, DYTZ Vertical Electro-Hydraulic Push Rod, DYTF Detachable Electro-Hydraulic Push Rod, TDT Synchronous Electric Push Rod, DT Electric Push Rod, Explosion-Proof Electro-Hydraulic Push Rod, Ear-Hook Electro-Hydraulic Push Rod, Ear-Shaft Electro-Hydraulic Push Rod, and their accessories
