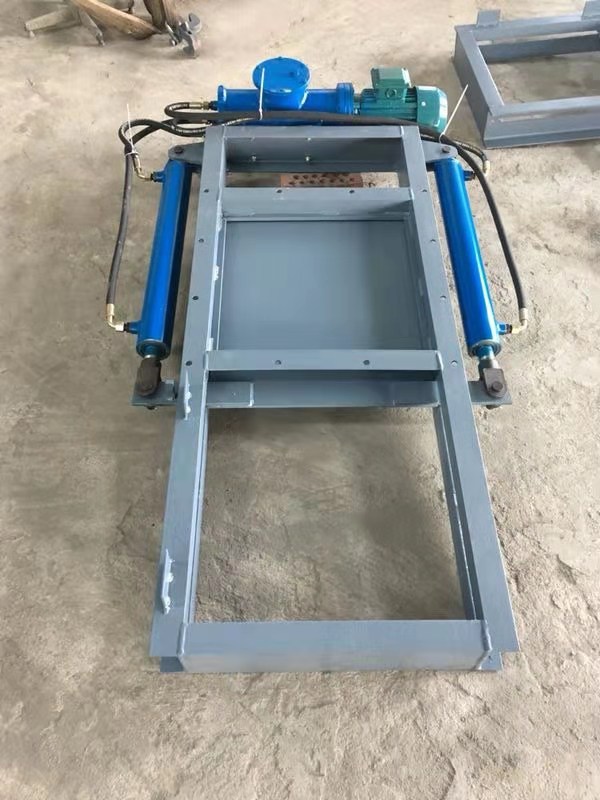

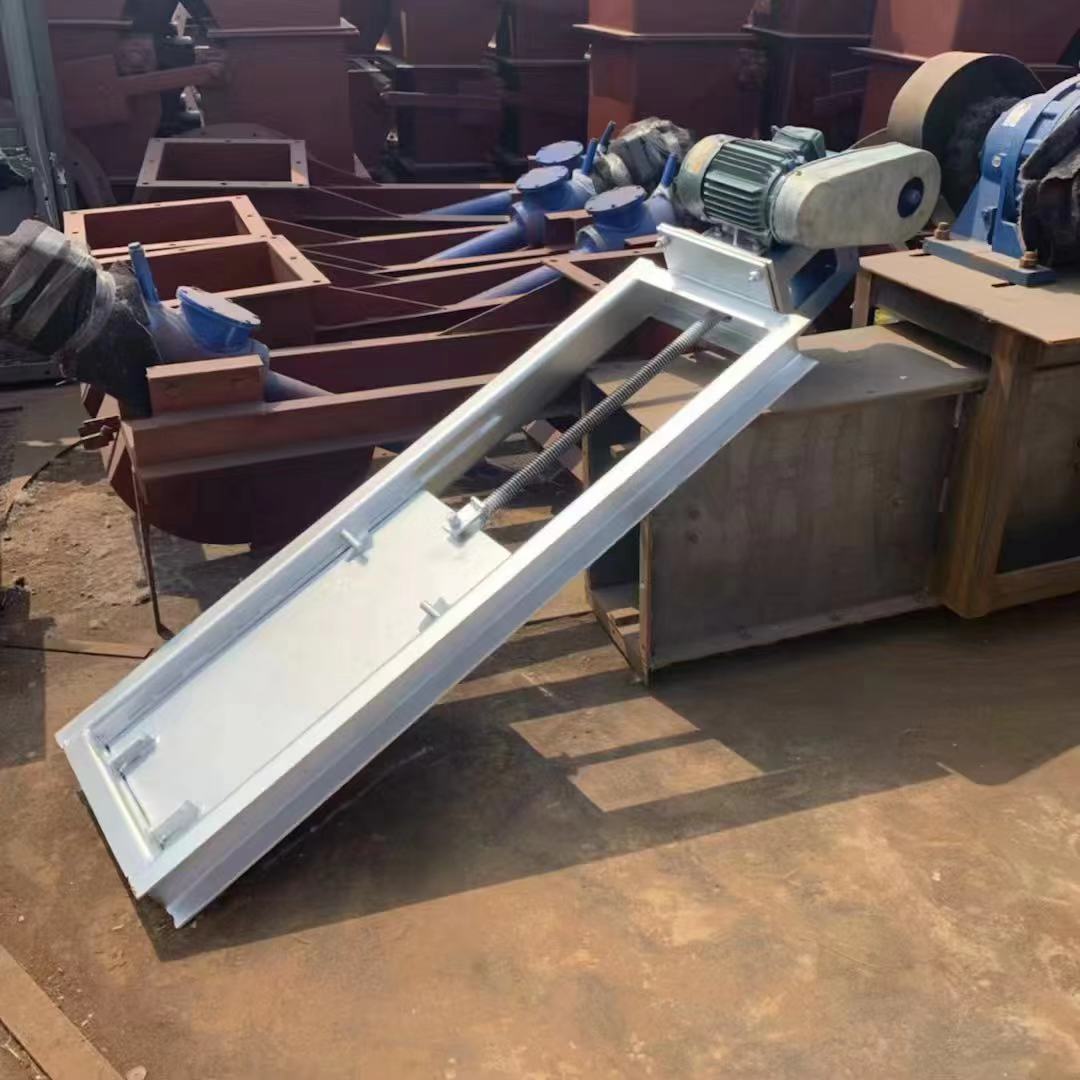

Electro-mechanical/Electro-hydraulic Push Rod Sliding Gate Plate

　　1. Principle of Operation: The electro-hydraulic push rod is powered by an electric motor, which, through forward (reverse) rotation, drives the hydraulic oil to be output as pressure oil via a bidirectional gear pump. The oil then travels through an integrated oil circuit block to the working cylinder, thereby achieving reciprocating motion of the piston rod.

　　2. Overload Automatic Protection Function: During the operation of the electro-hydraulic actuator, if the external force on the piston rod exceeds the rated output force or the piston reaches the end position, and the motor continues to rotate, the oil pressure in the circuit increases to the set pressure. The relief valve then quickly and accurately overflows, achieving overload automatic protection. Although the motor is still rotating, it will not be damaged.

　　3. Self-locking Function: A pressure self-locking mechanism is integrated into the oil circuit module of the electro-hydraulic push rod, ensuring that the piston rod immediately stops when the motor stops rotating.  The position, the pressure oil is in a pressure-holding state.

　　4. Speed can be infinitely adjusted within the designated speed range as per customer requirements.

　　5. Push and pull force can be infinitely adjusted within the designated output power range as per customer requirements.

　　6. Can be infinitely adjusted within the designated travel range according to customer requirements.

Section 3: Comparison with Similar Products:

Hydraulic push rods offer the following advantages compared to electric push rods, electric actuators, hydraulic cylinders, and pneumatic cylinders:

　　1. Boasts reliable overload auto-protection, ensuring the motor operates normally even under overload or at the end of its stroke, without damaging or burning other components. Electric actuators and actuators simply can't compete.

　　2. Electro-hydraulic push rods can be started under load, whereas it is quite difficult for electric push rods and electric actuators to do so.

　　3. The same electro-hydraulic push rod can be infinitely adjustable within its rated push-pull force range, thus offering a wide driving force range, which is not achievable with electric push rods or cylinders.

　　4. With the same thrust and speed, the electrical-hydraulic push rod consumes half the electrical energy of an electric push rod and an electric actuator.

　　5. The electro-hydraulic push rod utilizes full-liquid transmission, offering sensitive operation, smooth running, and effectively reduces external impact forces. It provides accurate stroke control, whereas cylinders, electric push rods, and electric actuators cannot achieve this.

　　6. The electro-hydraulic push rod features a fully enclosed mechanical, electrical, and hydraulic integrated structure. The working oil circuit circulates within a pressure-free, sealed steel cylinder, offering a compact design, no oil leakage, and ease of installation and maintenance. It is dust-proof, waterproof, and resistant to internal rust in harsh environments, with a longer service life than cylinders, electric push rods, and electric actuators.   。

　　7. Low investment but requires expensive air compressor stations for cylinder installation, with vulnerable air pipelines prone to leaks, unstable pressure, and high noise levels; hydraulic cylinders necessitate the construction of hydraulic stations, while electro-hydraulic actuators can be put to use simply by connecting to the power supply.

　　8. Easy to repair.   In such cases, the electro-hydraulic push rod can simply be replaced, whereas the hydraulic cylinder requires a thorough investigation of the fault cause before a meticulous repair can be carried out, which will affect the normal operation of the entire work.
