Electro-hydraulic Push Rod Flat Gate Valve DYLV-0.6/400400 Electric Actuator Plug Valve

Usage

   This gate valve is an improved product from our factory, featuring advanced technology and reliable quality. It is widely used in industries such as metallurgy, mining, and building materials, and is an ideal equipment for controlling the flow of dust materials.

Features

1. This valve is easy to operate and has a simple structure.

2. High performance, long service life.

Working Principle

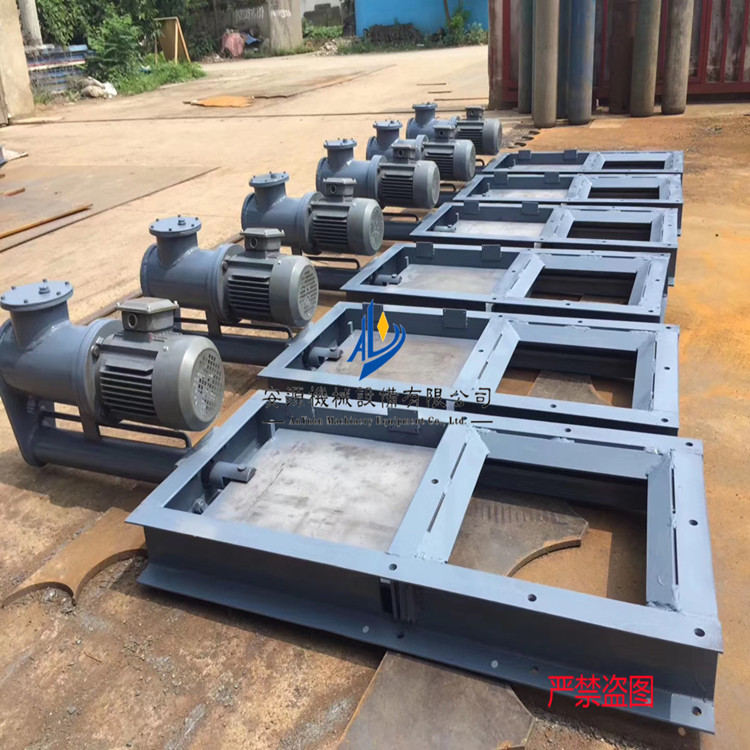

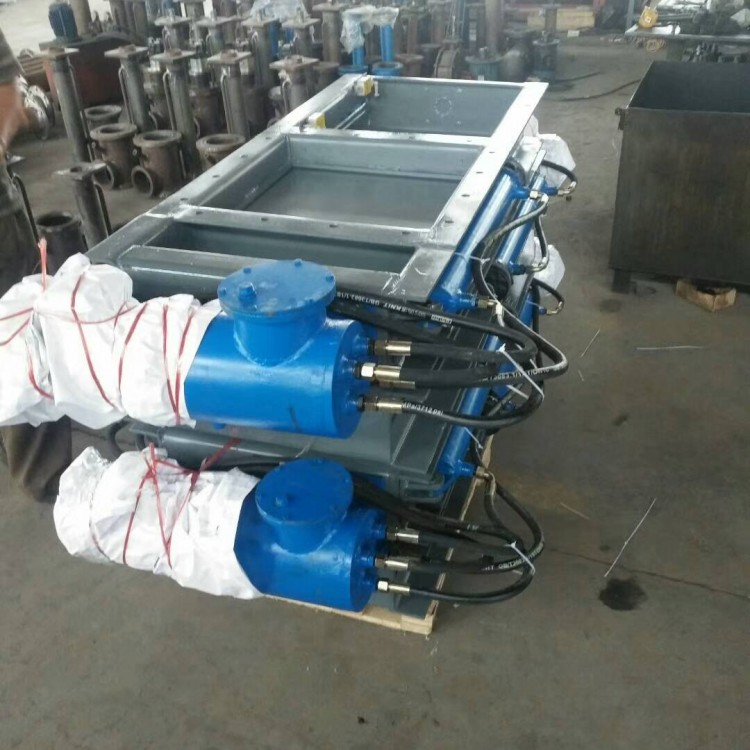

The gate valve is mainly composed of the frame, gate plate, electro-hydraulic unit, and other components. In operation, the piston rod is driven by hydraulic pressure to make the gate plate move back and forth horizontally, achieving the opening and closing of the gate.

Usage：

　　 The gate valve is widely used on pipelines for controlling dust material flow in industries such as building materials, metallurgy, and mining, and is an ideal device for controlling dust material flow.

Features:

　　 The gate valve features a simple structure, light weight, flexible operation, and easy installation and disassembly.   Carbon steel manufacturing with high strength, excellent performance, and long service life; the screw and nut are equipped with a soft protective cover structure, unaffected by external dust.

Operating Principle:

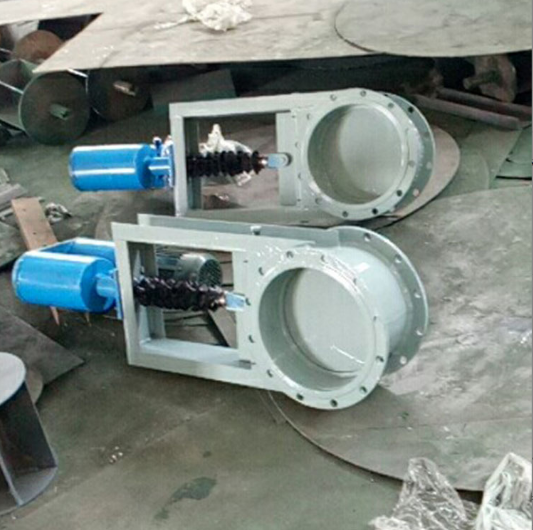

　　 Manual flat gate is mainly composed of frame, screw nut, handwheel, and gate plate. Handwheel(The Sprocket) rotates, causing the screw, nut, and gate to move reciprocally horizontally. The electro-hydraulic flat gate valve operates by the cylinder to reciprocate the gate, achieving the purpose of opening and closing the valve.

Application：

Slab gates are the primary control equipment for the flow and输送量 of powdered, granular, pelletized, and small-sized materials. They are widely used in industries such as metallurgy, mining, construction materials, grain, and chemicals, in storage tops, bottoms, and feed openings, and are the ideal equipment for controlling large flow changes, frequent opening and closing, and rapid cutting off.

Features：

The gate structure is simple, operation is flexible, lightweight, free of jamming, quick cutting, and particularly suitable for various solid materials andφ50 around block material conveying and flow adjustment, installation is angle-free. Easy to operate, with the ability to adjust the opening at any time.
