Belt Conveyor Diverting Valve, Double-Head Unloading Device, Electro-Hydraulic Push Rod Plow Type Unloader

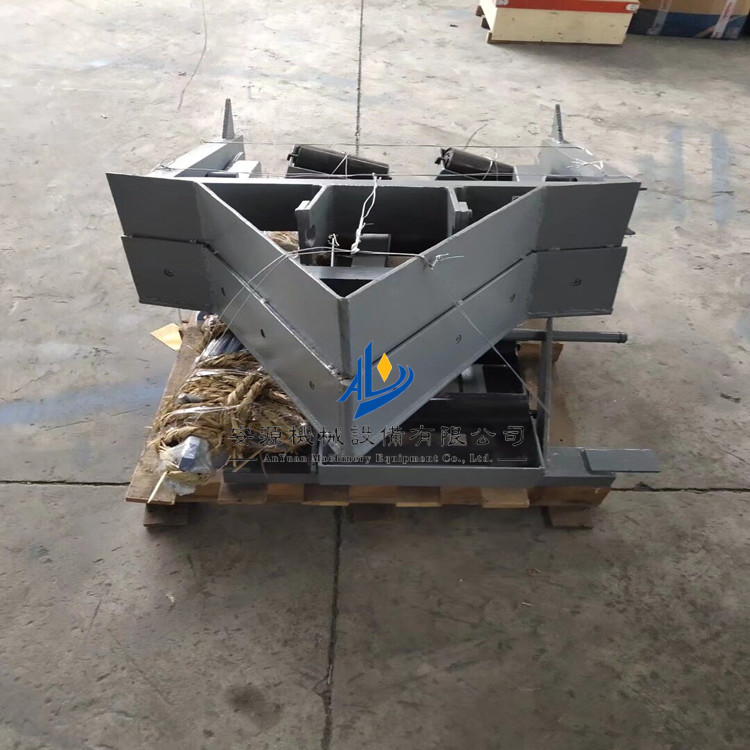

DYTLXThe type hydraulic-electric automatic balancing scraper unloader is powered by an electric hydraulic rod, which drives the rod extension to lower the scraper blade. Then, through a linkage mechanism, the lifting roller assembly is simultaneously lifted, ensuring the scraper blade's lower edge is tightly sealed against the belt surface, allowing materials on the belt to be discharged into the designated area. After unloading is complete, the drive rod retracts, lifting the scraper blade, while the lifting roller assembly descends through the linkage mechanism, allowing the material to pass smoothly. The product features are as follows:
aMost structures utilize mechanical connections, particularly linkage mechanisms, thereby relatively reducing friction and extending the service life (up to)5-10Annual, no change required (yearly, no replacement necessary).
bDriven by electro-hydraulic push rods, it overcomes the shortcomings of electric push rods, such as poor overload capacity, easy motor burnout, and easy bending of lead screws.
cThe plow blade of the main plow and the flip plate of the locking gas funnel are both made of high-chromium manganese.Abrasion-resistant Materials, small plow headsAbrasion-resistantMade of rubber, it significantly reduces maintenance workload, thereby saving costs.
YAYLCThe Type Self-Controlling Dust Removal Discharging Equipment (Heavy Discharging Truck) is designed based on the absorption and integration of advanced technologies and experiences from both home and abroad. It can be widely used in industries such as metallurgy, mining, power, coal, building materials, and refractory materials. Its main structural features are:
1The main drive unit employsYEJType built-in motor, worm gear reducer, and transmission mechanism composed, featuring simple structure, high efficiency, easy adjustment, and smooth operation.
2Adopt Conducting line power supply unit, ensuring reliable power supply without distance limitations.
3The overall layout of the unloading system is reasonable, with the main drive wheel having a high wheel pressure, which eliminates the slipping phenomenon during startup. The movement is smooth, and the stopping position is accurate and reliable; there will be no displacement of the unloading vehicle due to the strong tension of the belt. At times, the material can run in the direction of the conveyor belt or against it.
4The directional drum is made of high-strength material, capable of withstanding greater belt tension.
5The frame structure is rational, with good strength and rigidity.
6The funnel chute is lined withAbrasion-resistant Liner, long-lasting.
