Double-Plow Electric Coal Plow,犁式卸料器, DYTN-800 Electro-Hydraulic Coal Discharging Device

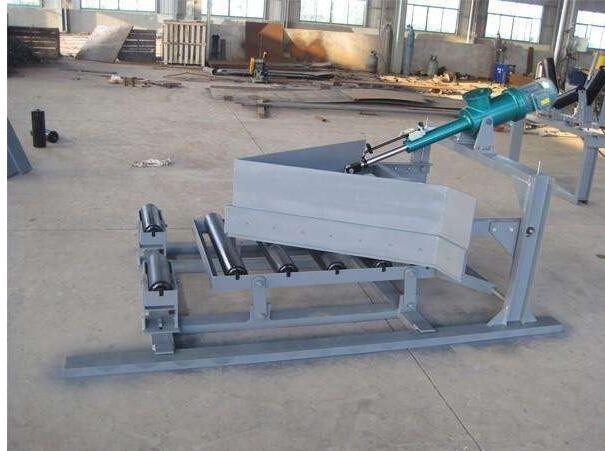

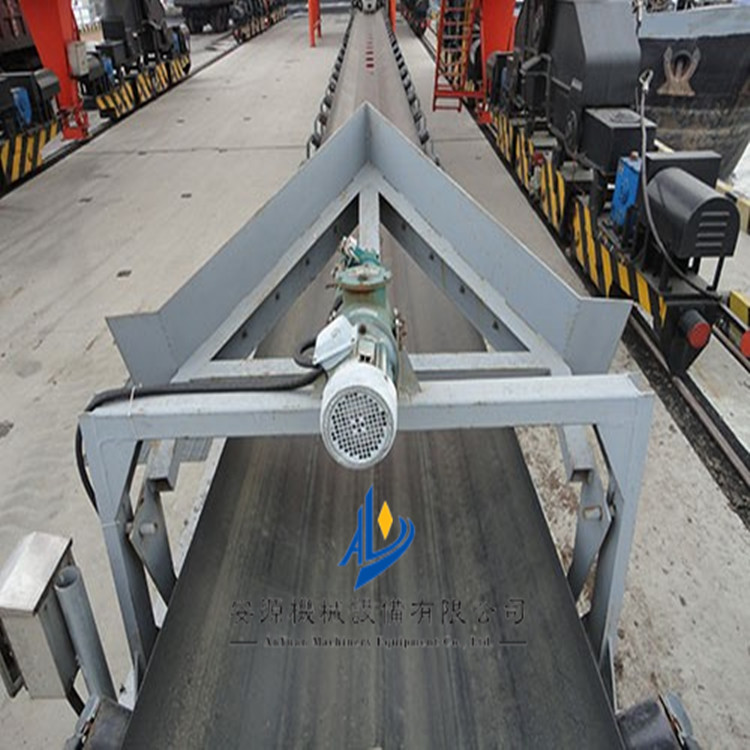

DYTNThe electro-hydraulic variable slot angle unloading device is mounted on the middle frame of a belt conveyor, capable of uniformly and continuously discharging materials transported by the belt into a hopper or conveying auxiliary equipment as required. This unloader, built upon the foundation of older models, has added variable slot angle bars and a plow blade.Friction-resistant Manufactured from high molecular polyurethane materials with a small Mooney viscosity coefficient, and powered by an electro-hydraulic push rod. Overcomes the defects of the old unloader, such as insufficient material discharge, belt scratching, poor overload capacity of electric push rods, frequent motor burnouts, bent lead screws, and easy mechanical damage. For the domestic market currently, etc.   An advanced unloader. Key features:

1Discharge status: Plow blade drops down, the middle flat support roller assembly rises, and the ends' grooved support rollers change to flat support rollers.

2In non-discharge state: The plow blade is raised, the middle flat carrier roller group descends, the end support rollers change to a trough shape, and materials pass normally.3This product features advanced design, compact structure, easy operation, and the ability to lift the plow blade through motorized forward and reverse movement, with sensitive action.

4Hydraulic push rods are used as the power source, overcoming the drawbacks of electric push rods such as motor burnout and jamming, making the unloader more perfect and reliable.
