Mining stone loadingGate Cylinder Gate ValveDEZ-600Electro-hydraulic jaw crusherRelease materialsValve
Lip gates are suitable for bulk density≤2.5t/m3A variety of ore, coal, coke, slag, chemical products, and other loose materials, widely used in the bottom unloading of storage for construction materials, metallurgy, chemicals, and glass industries.
Structural Features:

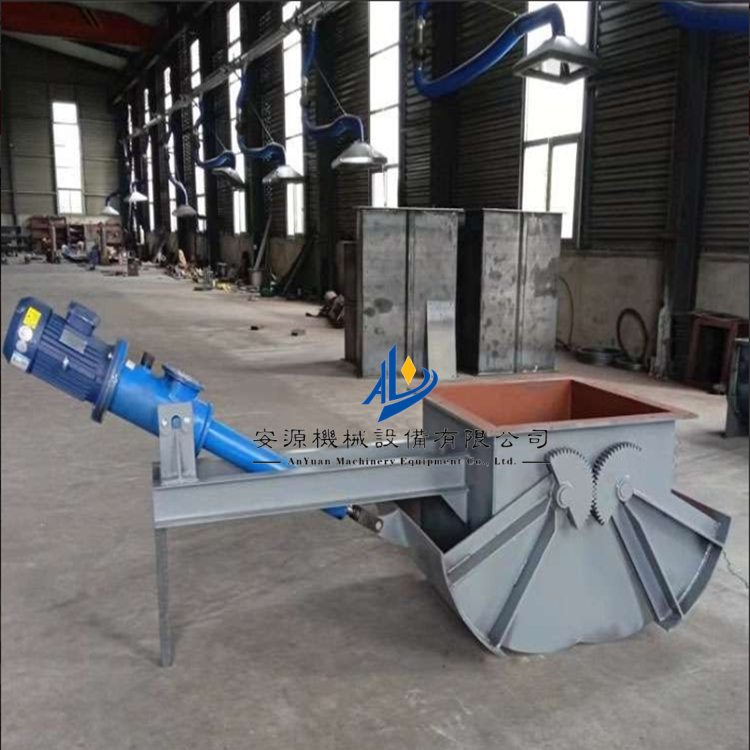

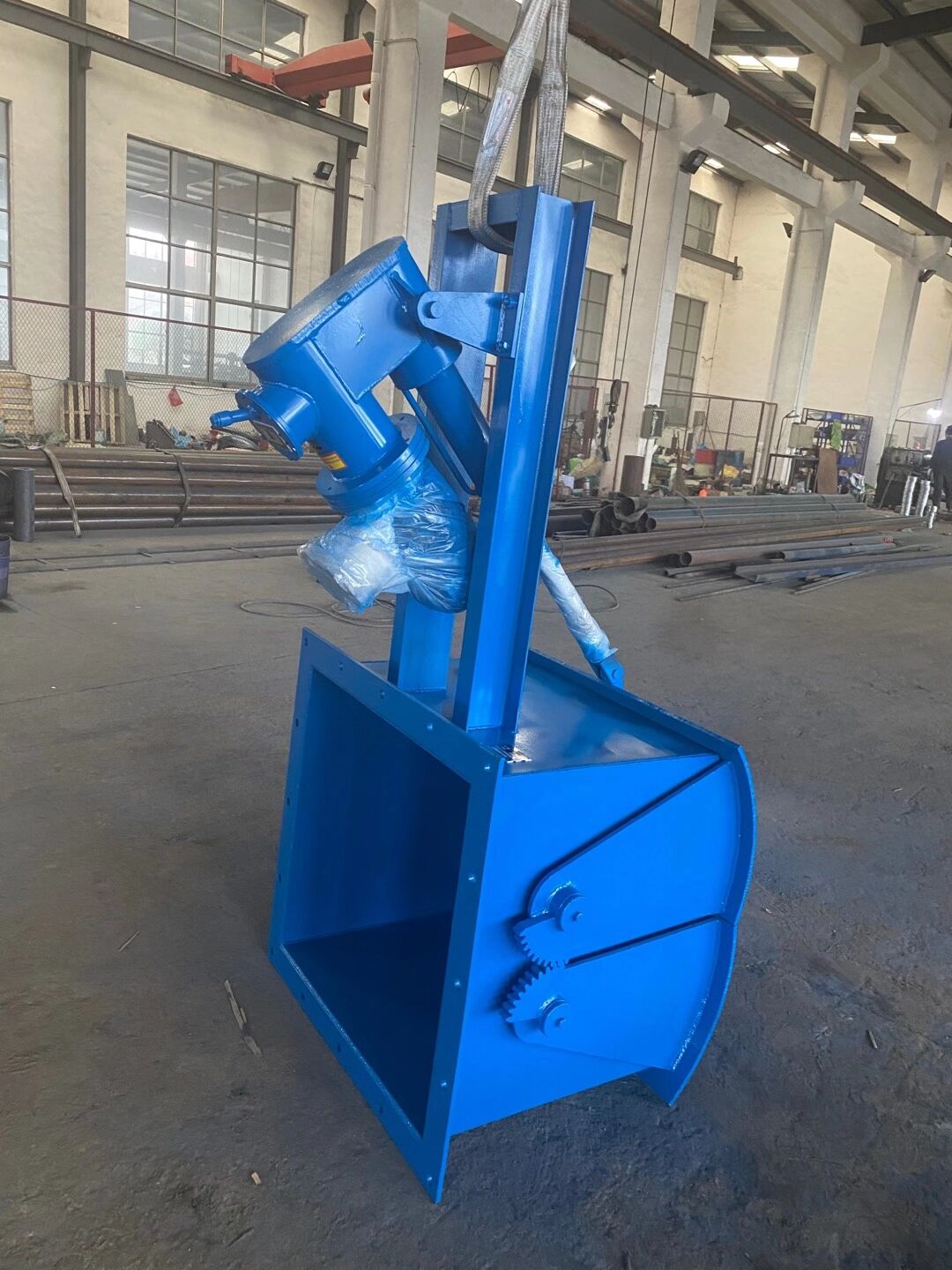

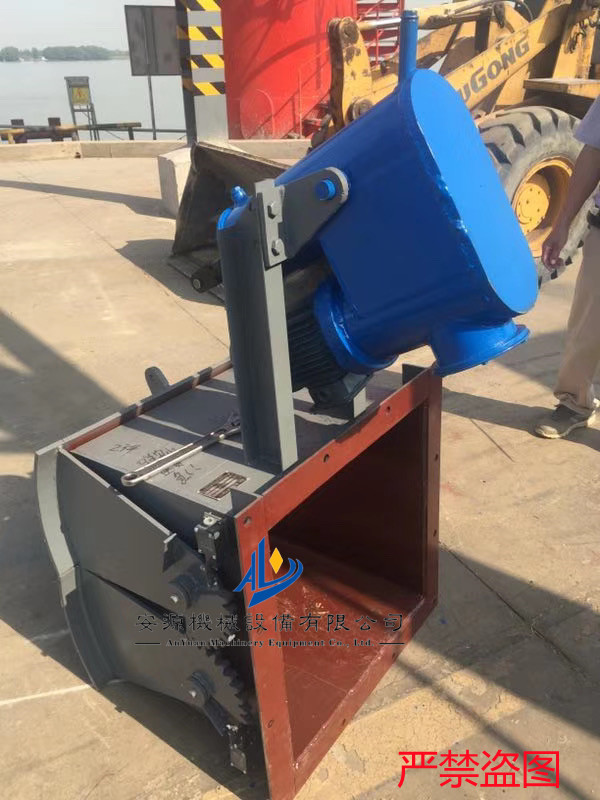

Pleated gate is made of carbon steel welded into shape, structure Operates flexibly and reliably with no jamming issues. Different transmission devices can be used to meet various working conditions. The electric jaw gate is equipped with an electric push rod featuring an overload protection device, which prevents motor burnout. It can be remotely controlled or programmatically operated, with a reciprocating stroke that can Adjustable positioning with automatic locking. The electro-hydraulic jaw gate utilizes electro-hydraulic push rods, featuring full hydraulic transmission with infinite speed adjustment for both pushing and pulling forces. The pneumatic jaw gate is equipped with pneumatic push rods, which can be remotely controlled or locally operated through component assembly.SEFFor manual,DEFFor electricYEFFor electro-hydraulic operationQEFPneumatic.
Performance Parameters:
Applicable Temperature(℃) | Bulk Densityt/m3） | Applicable Medium | ||||||||||
≤300 | ≤2.5 | Crystalline solids, coal, coke, slag, chemical products, and various ores | ||||||||||
Working Principle:
The gate valve consists of components such as the main body, sector gate plate, shaft, gears, sealing sets, and actuator. A handwheel or actuator moves the lever, causing the gears to rotate the sector gate plate around the shaft, opening the two sector gate plates to the sides, allowing materials to fall. After the receiving device is fully loaded, the actuator drives the lever again to reset the sector gate plate, closing off the falling material.
