Double Cylinder Electro-Hydraulic Actuated Sluice Gate,鄂式Gate Valves, Manual (Electro-Hydraulic) Plunger Valves
Electro-hydraulic sector gate at the discharge outlet is equipped with a dust cover, preventing dust from flying: It uses an electro-hydraulic actuator as the power source, replacing cylinder transmission, thus saving engineering investment costs; The electro-hydraulic sector gate valve body adopts a stepped structure, reducing material flow impact; The critical parts of the valve body are lined with a grate structure.Friction-resistant Liner, reduces direct wear on the liner
This series of electro-hydraulic toggle gate is used in industries such as metallurgy, mining, power, chemicals, and building materials. It serves as the unloading device for various particle discharge systems.

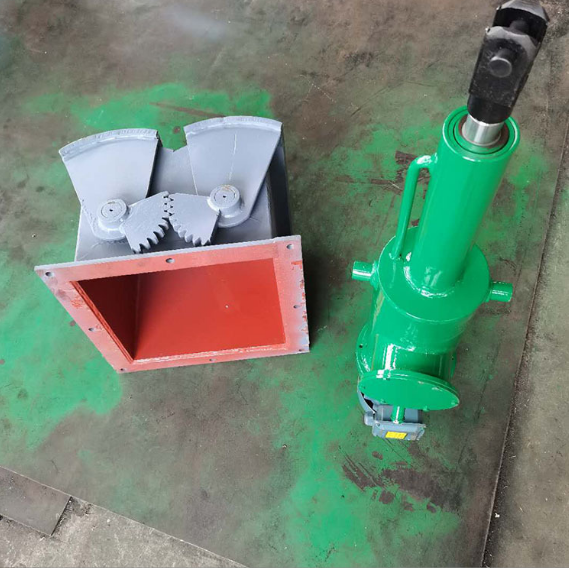

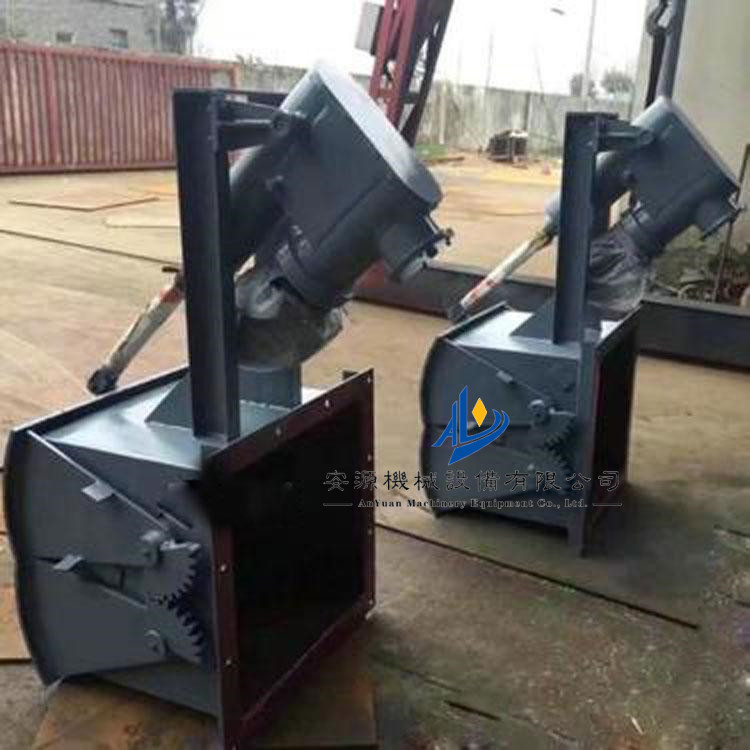

1. The DEZ type jaw gate features a simple structure and adopts Welded from steel plate, powered by electro-hydraulic drive and gear transmission, operates smoothly with low failure rate, easy maintenance, and capable of quickly cutting off the material flow.

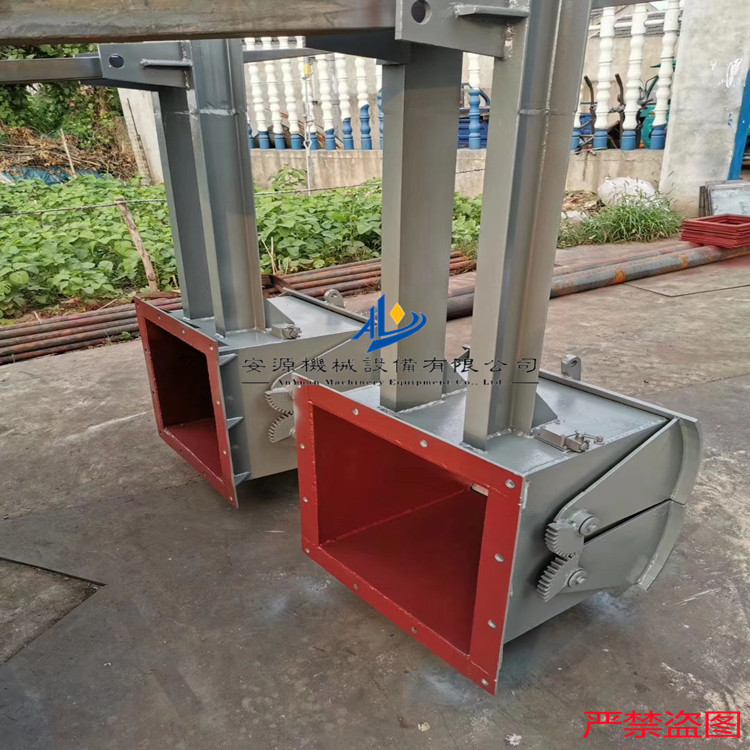

2. The HDEZ type environmental-friendly jaw gate features a fully enclosed structure, compact design, electro-hydraulic actuator drive, and gear transmission. It operates smoothly with a low failure rate, no material jamming, easy maintenance, and can quickly cut off the material flow while being environmentally friendly.
Operation of Electro-hydraulic (Electric) Sluice Gate (Gateshut): First, please note the medium flow direction marked on the gate body during installation. When connecting the two flanges. Seal the gaskets and then tighten the bolts evenly. Next, during operation, identify the direction of the fan-shaped gate valve and properly connect the actuator. It's in operation. Regularly apply lubricant to all transmission parts to extend the lifespan of the labial valve. Improper operation will increase the wear on the labial valve.
Electro-hydraulic flat gate working principle: The electro-hydraulic flat gate is mainly composed of a frame, screw thread nut, handwheel, and gate plate. Handwheel(The Sprocket) Rotates, the screw thread drives the nut and gate plate to move reciprocally in a horizontal direction, achieving the purpose of opening and closing the valve.
