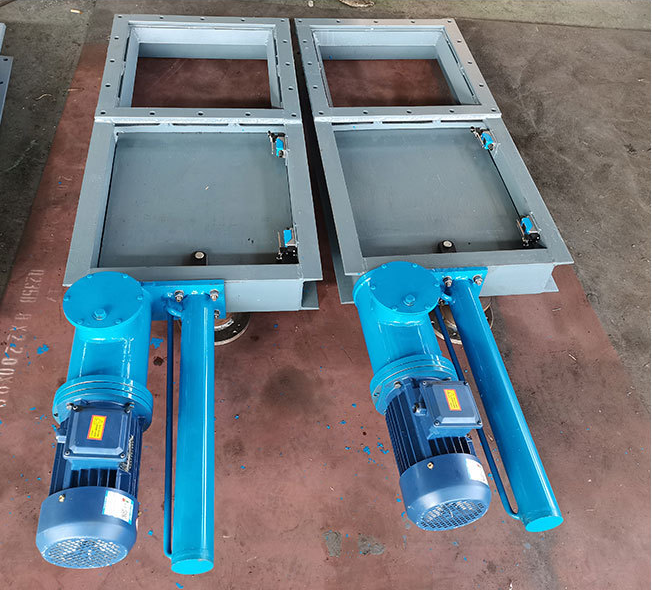

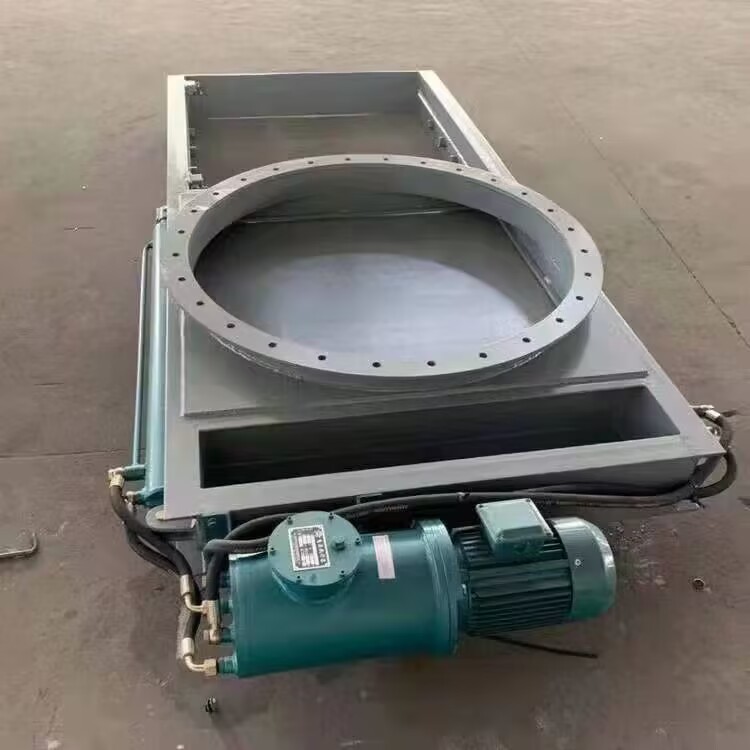

DPZ-600 Electric-Hydraulic Actuated Full Sealed Gate Valve
Usage
This gate valve is widely used in metallurgy, mining, building materials, and other industries, serving as an ideal device for controlling the flow of dust materials.
Features
1. This valve is easy to operate and has a simple structure.
2. High performance, long lifespan.
Operating Principle
The gate valve is primarily composed of components such as the frame, gate plate, and electro-hydraulic unit. During operation, the piston rod is driven by hydraulic pressure to cause the gate plate to move horizontally back and forth, achieving the purpose of opening and closing the gate.
Application：
This gate valve is widely used on pipelines for controlling dust material flow in industries such as construction materials, metallurgy, and mining, and is an ideal equipment for controlling dust material flow.
Features:
The gate valve features a simple structure, light weight, flexible operation, easy installation and disassembly, and is made of carbon steel, offering high strength, excellent performance, and a long service life. The screw and nut are equipped with a soft protective cover, which is unaffected by external dust.
Working Principle:

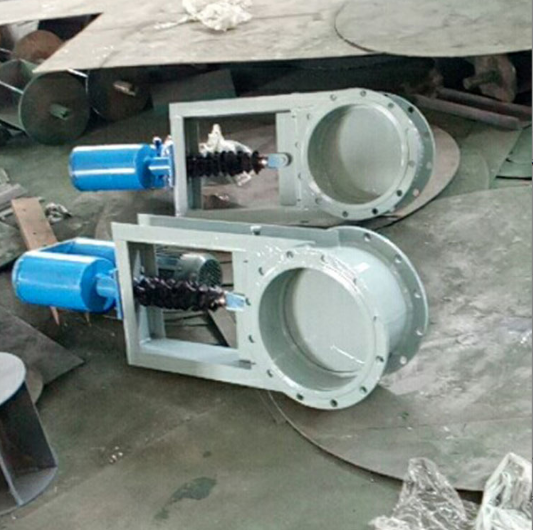

Manual flat gate is mainly composed of a frame, screw nut, handwheel, and gate plate, handwheel(The Sprocket) rotates, causing the screw and nut as well as the gate to move horizontally back and forth. The electro-hydraulic flat gate valve achieves the purpose of opening and closing the valve by the reciprocating motion of the gate driven by the cylinder.
Usage：
Sliding gate valves are the primary control equipment for the flow and conveying volume of powdery, granular, granulated, and small piece materials. They are widely used in industries such as metallurgy, mining, building materials, grain, and chemicals, in storage tops, bottoms, and feeding openings, and are ideal for controlling large flow variations, frequent opening and closing, and quick cutting.
Features：
The gate structure is simple, operation is flexible, lightweight, free from jamming, quick to cut off, and particularly suitable for various solid materials and substances.φ50 approximately block material conveying and flow adjustment, installation is angle-independent. Easy to operate, with the ability to adjust the opening at any time.
