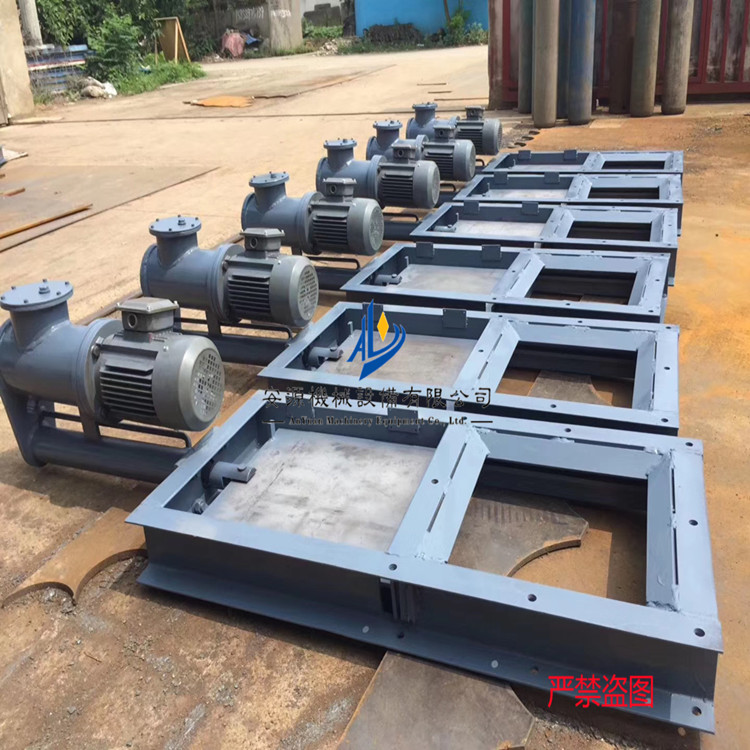

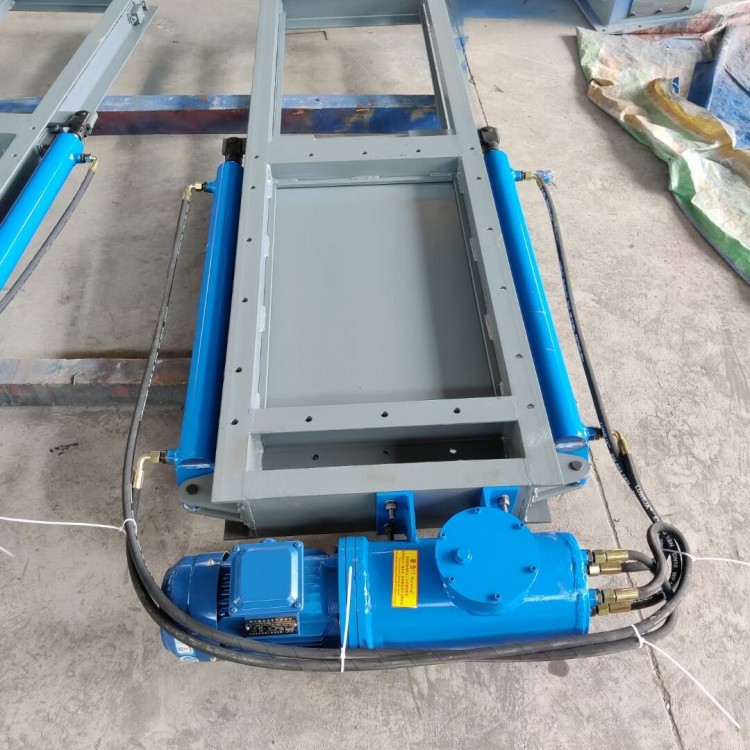

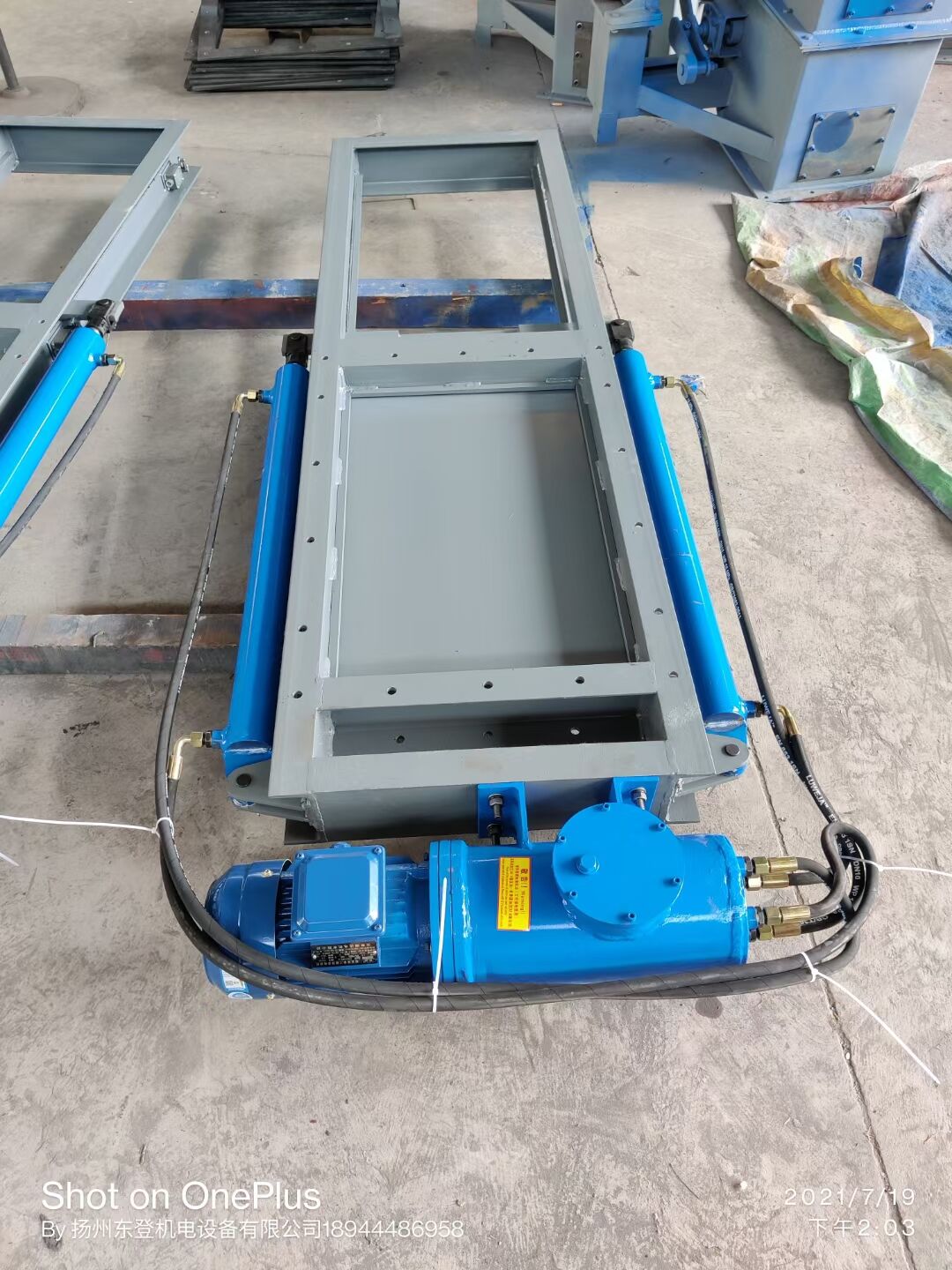

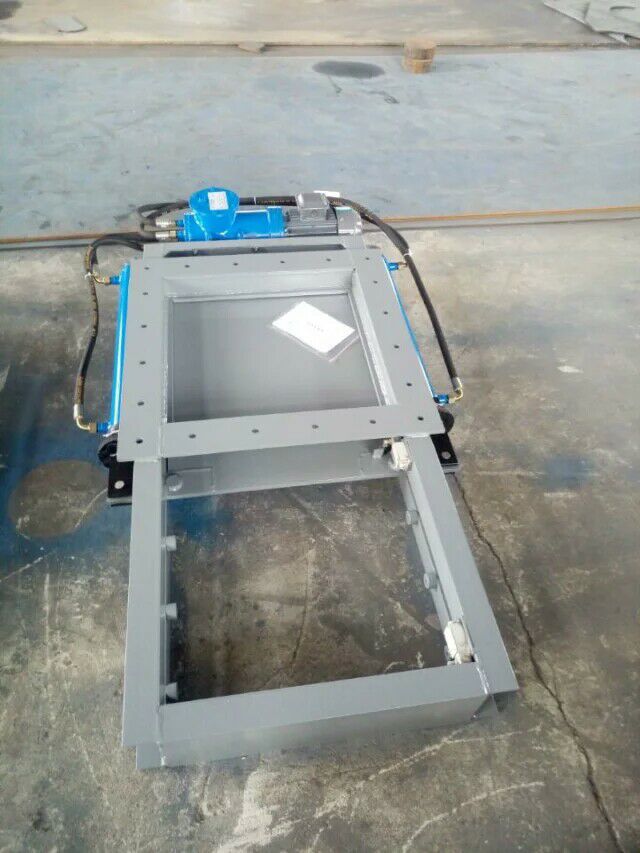

Coal ash plant one-stop dual-cylinder electro-hydraulic flat gate, manual plug valve

Manual single and double-direction spiral flat gate valves, primarily used for controlling flow and volume in powdery, granular, and particle materials as well as small pieces. Widely employed in industries such as metallurgy, mining, construction materials, grain, and chemicals, they are ideal for controlling areas like loading docks, feed openings in harsh environments, due to their ability to handle large flow variations, frequent opening and closing, and rapid cutoff.

bFeatures

The valve features a simple structure, flexible operation, light weight, no jamming, and quick cutting, making it particularly suitable for all types of solid materials and substances.f50Versatile conveyance of blocky materials with adjustable flow rates; installation is angle-independent. Easy to operate, with the flexibility to adjust the opening at any time.

cOperating Principle

The gate is primarily composed of a frame, screw nut, handwheel (chainwheel), and gate plate. As the handwheel rotates, the screw drives the screw nut and gate plate to perform reciprocating horizontal movement, achieving the opening and closing of the gate.
