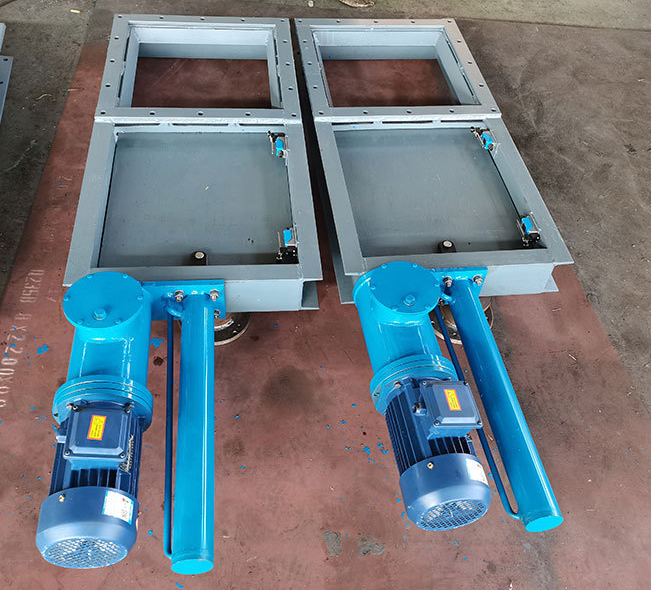

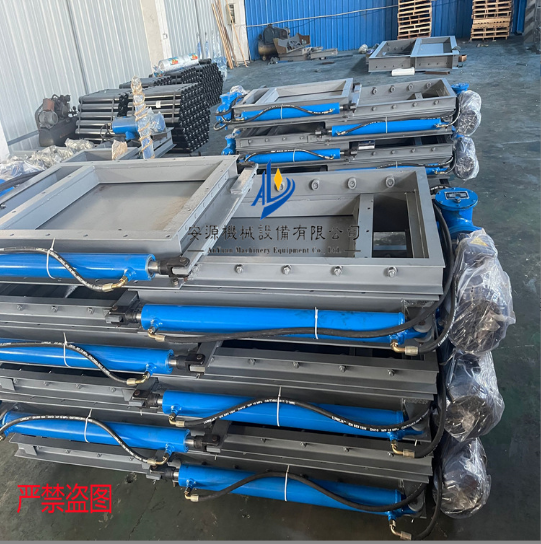

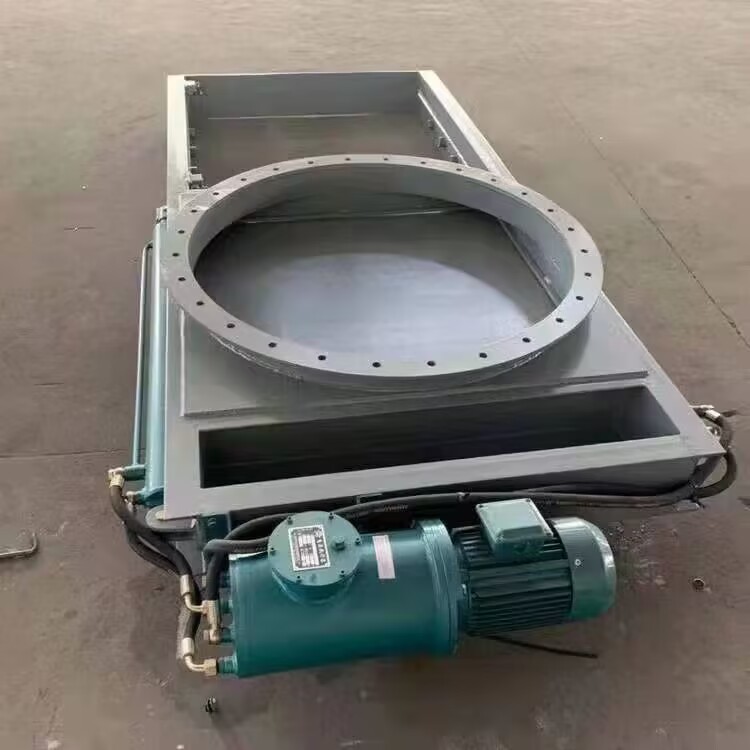

Material Storage Warehouse Cut-off Plate Gate DPZ-500 Electro-Hydraulic Discharging Plug Valve

Electro-hydraulic sliding plate gates are now widely used in industries such as metallurgy, mining, and building materials, serving as an ideal device for controlling dust material flow.

2. Working Principle: The electro-hydraulic flat gate is mainly composed of a frame, screw nut, handwheel (chain wheel), and gate plate. As the handwheel rotates, the screw rod moves the screw nut and gate plate in a reciprocating horizontal motion, achieving the purpose of opening and closing the valve.

3. Composition

The electro-hydraulic flat gate is mainly composed of components such as the frame, gate plate, and electro-hydraulic unit.

4. Structural Features:

Electro-hydraulic flat gate features a simple structure, flexible operation, light weight, no jamming, and quick cutting. It is particularly suitable for various solids, powders, and particles smaller than Φ 10mm, for conveying and flow regulation of granular materials. Installation is angle-independent, operation is convenient, and the opening can be adjusted at any time. The valve comes in two operation types: handwheel for Type I and chainwheel for Type II. It is available in two structural forms: LZD for one-way and LZS for two-way.

5. Performance Parameters

Our Company Operates: Gate ValvesTDSZ-□ Type Electro-Hydraulic Butterfly Sluice Gate, DPZ Electro-Hydraulic Flat Sluice Gate, DEZ Type Electro-Hydraulic Scissor Sluice Gate, DSZ Type Electro-Hydraulic Butterfly Sluice Gate, Electric Butterfly Sluice Gates and Accessories
