Electromagnetic actuator plug valve, electro-hydraulic full-sealed flat gate, long-term supply

Operating Principle

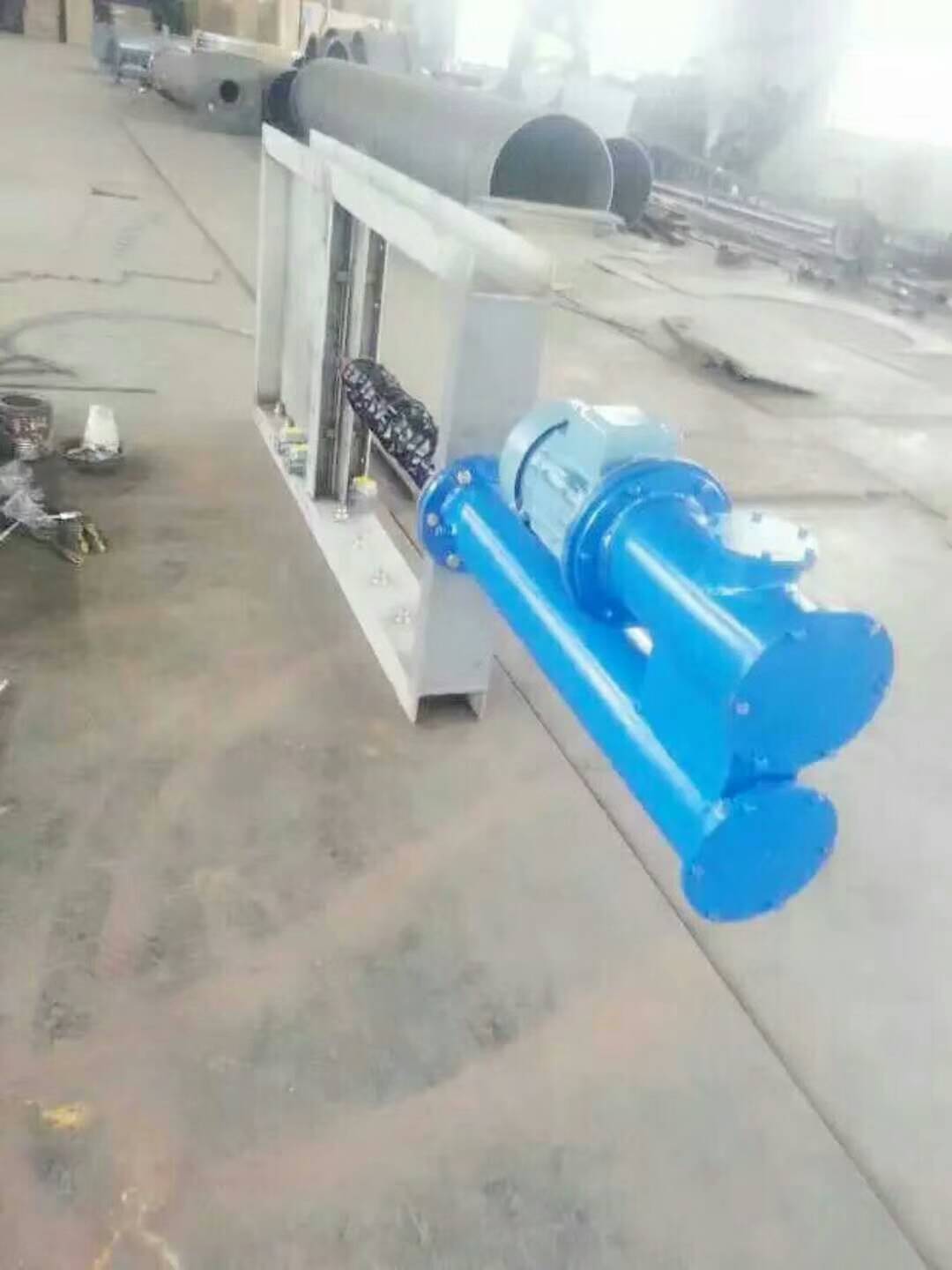

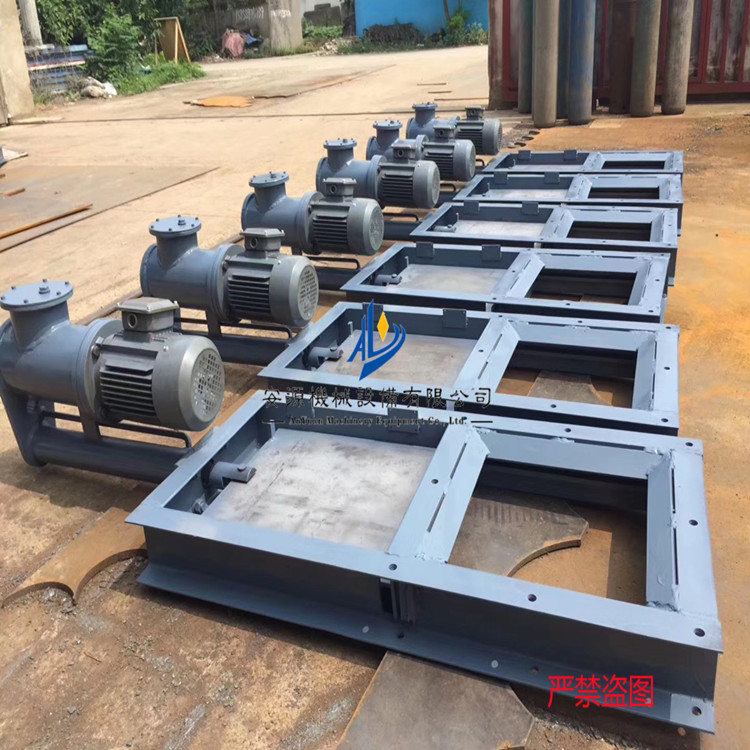

The gate valve is primarily composed of components such as the frame, gate plate, and electro-hydraulic unit. During operation, the piston rod, under the action of hydraulic pressure, drives the gate plate to move back and forth horizontally, achieving the purpose of opening and closing the gate.

 Application：

　　 The gate valve is widely used on pipelines for dust material flow control in industries such as building materials, metallurgy, and mining, and is an ideal equipment for controlling dust material flow.

 Features:

　　 The gate valve features a simple structure, light weight, flexible operation, easy assembly and disassembly, and is made of carbon steel, offering high strength, excellent performance, and a long service life. The screw and nut are equipped with a soft protective cover, ensuring they are not affected by external dust.

 Working Principle:

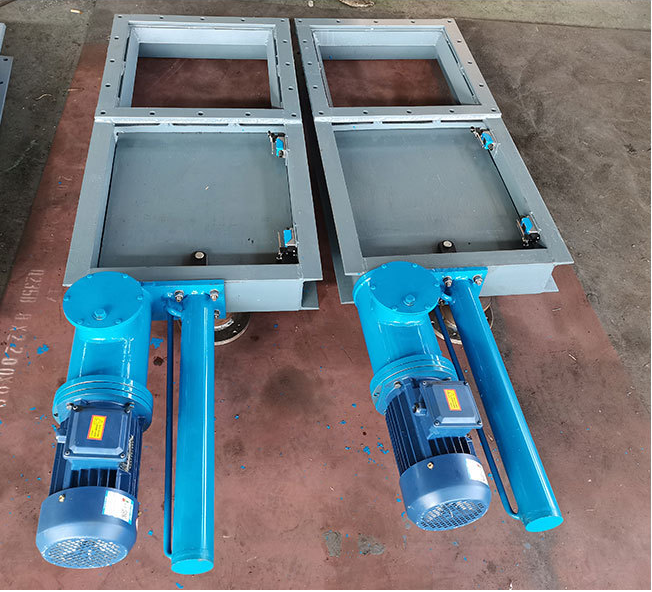

　　 Manual flat gate is mainly composed of frame, screw nut, handwheel, and gate plate. HandwheelThe sprocket rotates, causing the screw, nut, and gate to move horizontally back and forth. The electro-hydraulic flat gate valve operates by the cylinder driving the gate to reciprocate, achieving the purpose of opening and closing the valve.

Application：

Sliding gate valves are the primary control equipment for the flow and conveying volume of powdery, granular, and granulated materials, as well as small pieces. They are widely used in industries such as metallurgy, mining, building materials, grain, and chemicals, in storage roofs, bottoms, and feeding openings, and are the ideal equipment for controlling large flow changes, frequent opening and closing, and quick cutting off.

Features：

The gate has a simple structure, flexible operation, light weight, no jamming, quick cutting, and is particularly suitable for various solid materials andφ50 orifice material conveying and flow regulation; installation is angle-free. Easy operation, with the ability to adjust the opening at any time.
