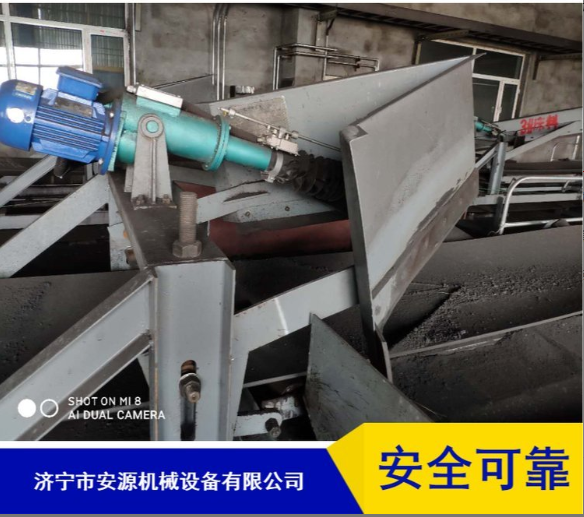

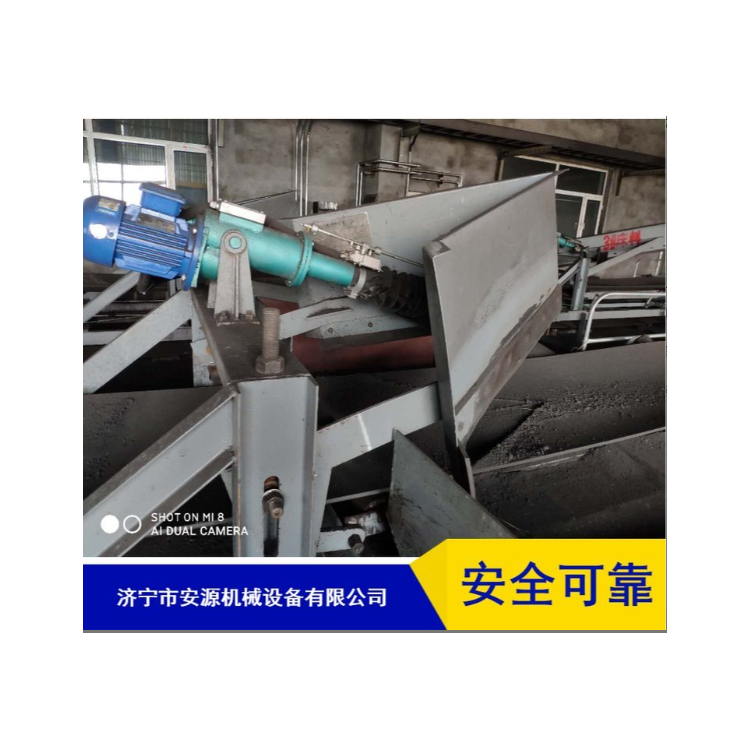

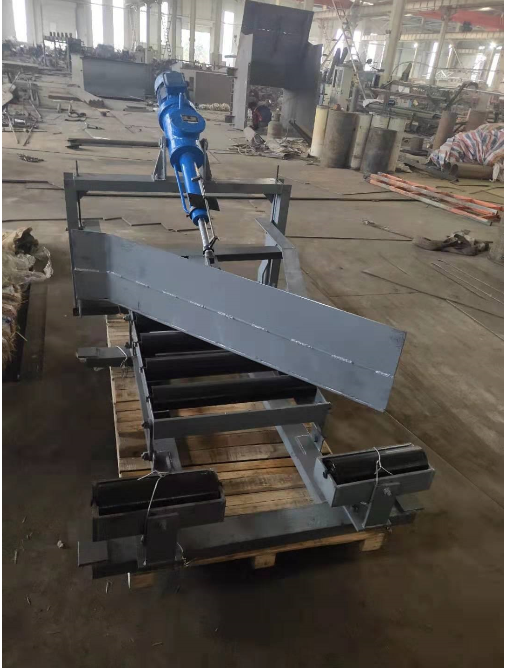

Belt Conveyor Double-Sided Plow-Type Discharge Device, Coal Separator, Electro-Hydraulic Push Rod Plow Coal Discharger
1. The plow head is available in single or double types. The front blade is made of chromium-nickel stainless steel, while the rear blade is constructed from high-density polyethylene. Both blades are replaceable, offering clean discharge and tape protection.
2. The plow lock mechanism has undergone significant improvements, ensuring reliable locking. The plow does not lift or vibrate during operation, and it can be adjusted for height. Prime location near tape, no material leakage.
3. The drive unit features an electro-hydraulic actuator, achieving mechanical and electrical integration. The oil circuit is a fully sealed structure, capable of operating in harsh environments. Depending on customer requirements, we can provide dual-purpose electro-hydraulic actuators (hand and electric) or mechanical self-locking electro-hydraulic actuators.

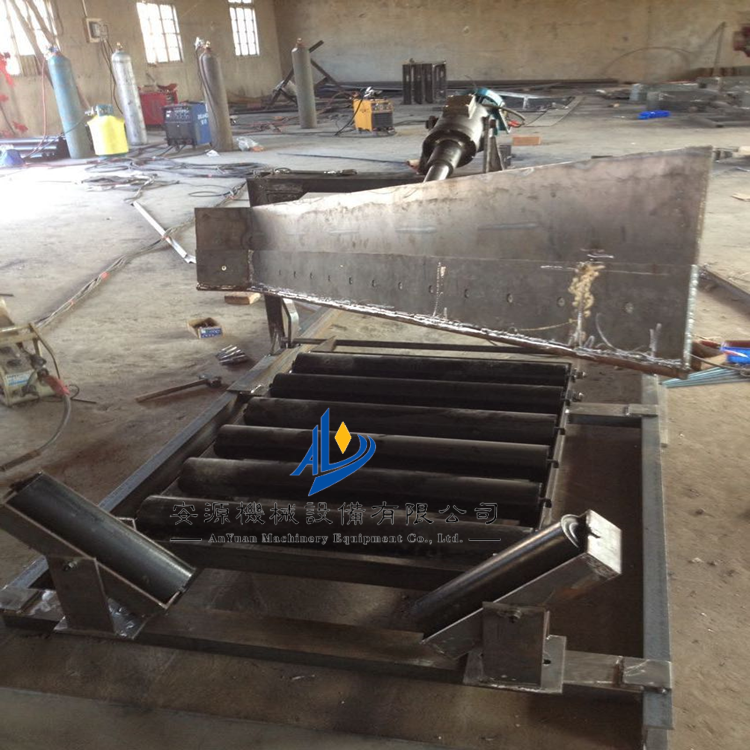

4. The deformed roller assembly works in synchronization with the electro-hydraulic push rod mechanism. With one working cycle of the push rod, the roller assembly automatically transitions from trough to flat and back to trough.
5. The motor protection grade is determined by the environment; for flammable and explosive conditions, use an IP54 motor.
