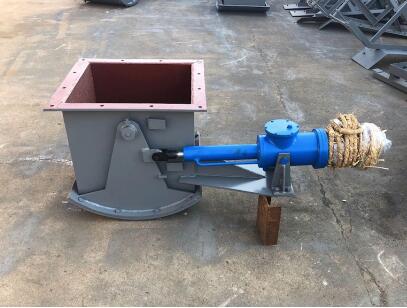

DSZ-A(B)-Ⅱ Electric-Hydraulic Scissor Gate

Application

The electro-hydraulic slide gate with power failure reset is widely used in industries such as construction materials, metallurgy, mining, power, and chemical industries, serving as the unloading control device for various drop material systems.

Structural Features

Easy to install directly below the storage bin. Driven by electro-hydraulic actuators, it occupies less space and is more convenient for fixation. Operation is smooth with a low failure rate, allowing for quick interruption of the material flow. During power outages, the electro-hydraulic actuator can automatically reset and close the gate to prevent spillage.

Working Principle

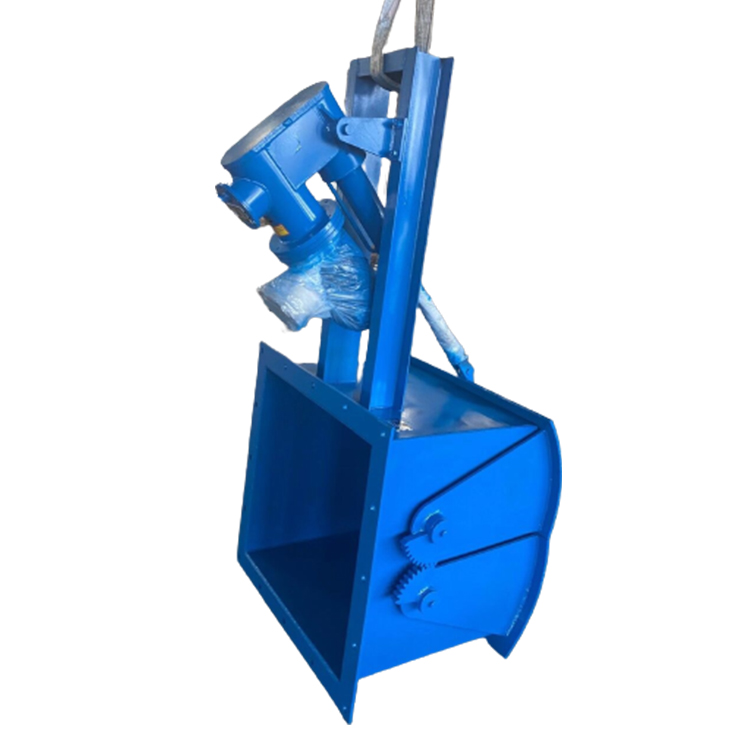

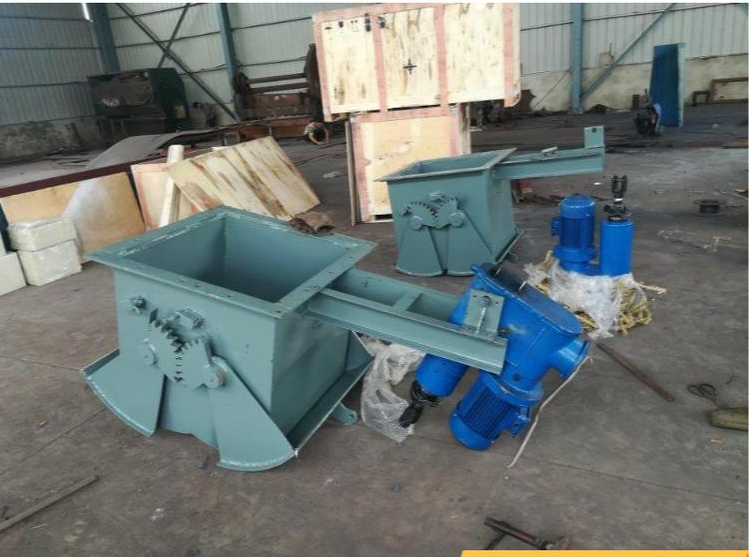

With power failure resetElectro-hydraulic gate with sliding shutterComposed of the main body, an electromechanical push rod with power-off reset, a sector gate, shaft, gears, seals, and an actuator, etc. The electromechanical push rod operates to rotate the sector gate around the shaft center, opening the two sector gates to the sides, allowing the material to fall. Once the receiving device is fully loaded, the electromechanical push rod then resets the sector gate, closing off the falling material.
