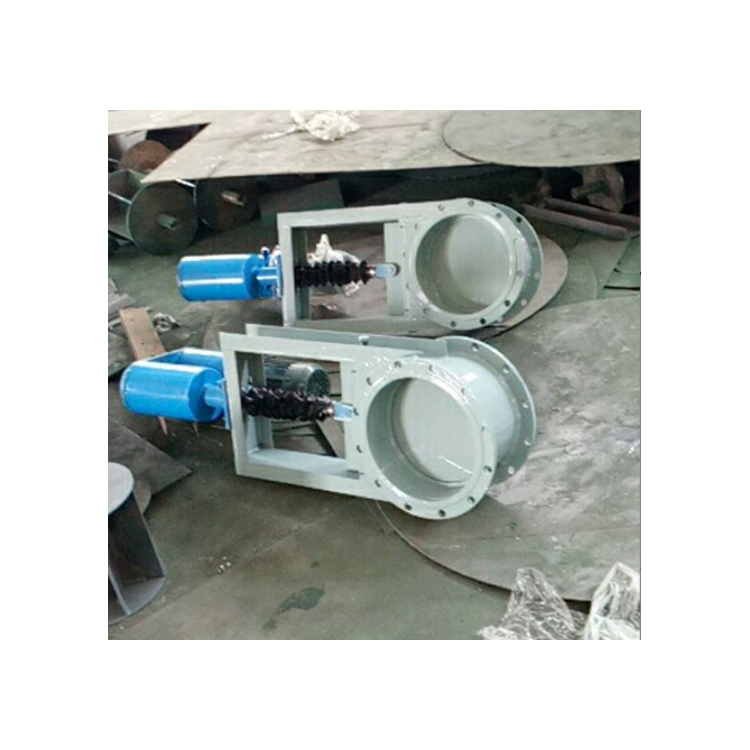

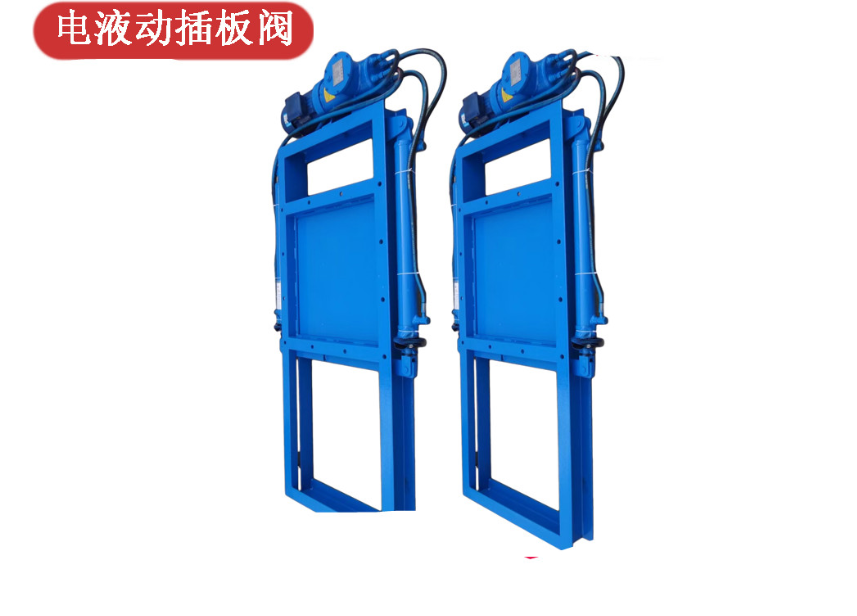

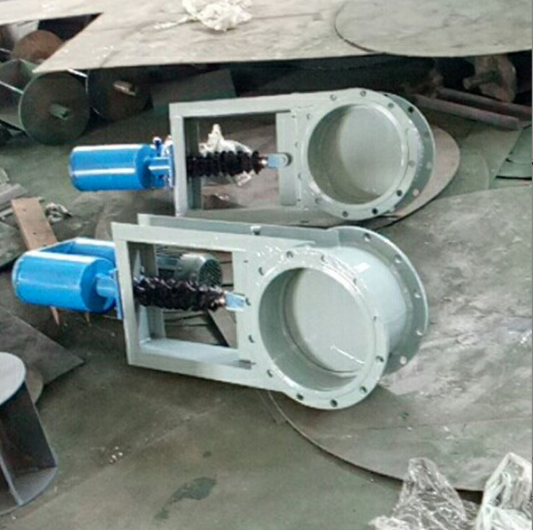

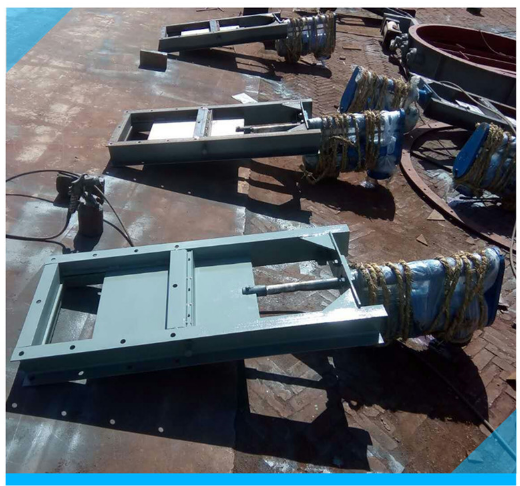

Electro-hydraulic full-sealed plug valve

Electro-hydraulic sliding plate gates are now widely used in metallurgy, mining, building materials, and other industries, serving as an ideal equipment for controlling the flow of dust-containing materials.

2. Principle of Operation: The electro-hydraulic flat gate is mainly composed of a frame, screw nut, handwheel (chain wheel), and gate plate. As the handwheel rotates, the screw rod drives the screw nut and gate plate to move back and forth horizontally, achieving the opening and closing function of the valve.

3. Composition

The electro-hydraulic flat gate is mainly composed of components such as the frame, gate plate, and electro-hydraulic unit.

4. Structural Features:

Electro-hydraulic flat gate structure is simple, versatile, lightweight, non-stuck, and quick-cutting. It is particularly suitable for various non-viscous solids, powders, and particle materials with a size less than Φ 10mm. It is ideal for conveying and flow adjustment of granular materials. The installation is angle-independent, easy to operate, and allows for instant adjustment of the opening size. The valve features two operating modes: handwheel for type I and chainwheel for type II. It comes in two structural forms: LZD for one-way and LZS for two-way.

5. Performance Parameters
