Sand and stone factory electro-hydraulic swing gate DEZ-600 Hubei gate valve Anti-clogging gate valve

Section 1: Operation Principle of鄂式Valve:

The鄂式valve is manually or mechanically actuated to move a lever, which in turn drives the gear to rotate the sector gate around its axis. This causes the two sector gates to open to the sides, allowing the material to fall. Once the receiving device is fully loaded, the actuator drives the lever again to reset the sector gate, closing off the falling material. The jaw gate valve is suitable for dry bulk materials with a specific gravity of 2.5t/m³, including various ores, coal, coke, slag, and chemical products, and is widely used in industries such as building materials, metallurgy, chemicals, and glass for bottom unloading of storage.

Section 2:鄂式阀 Structural Characteristics:

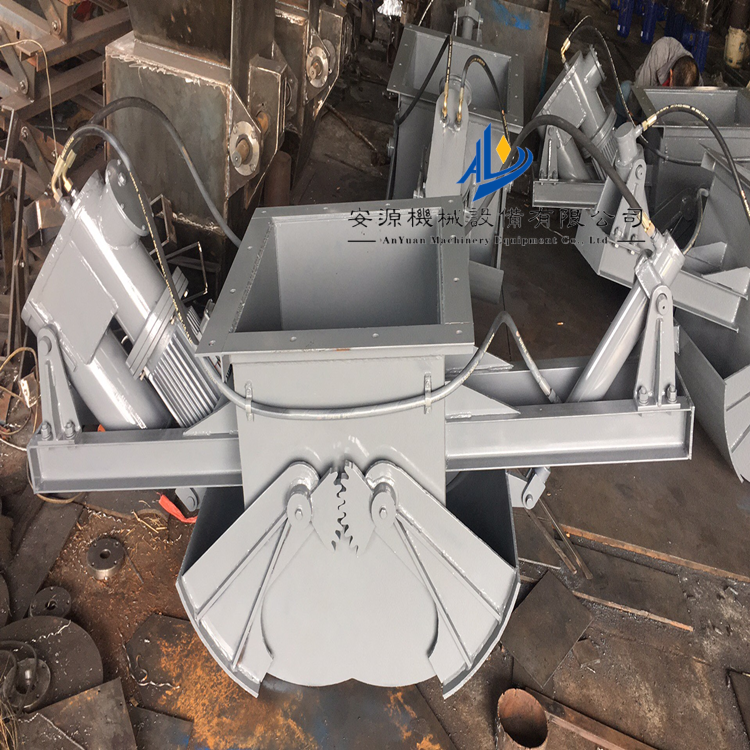

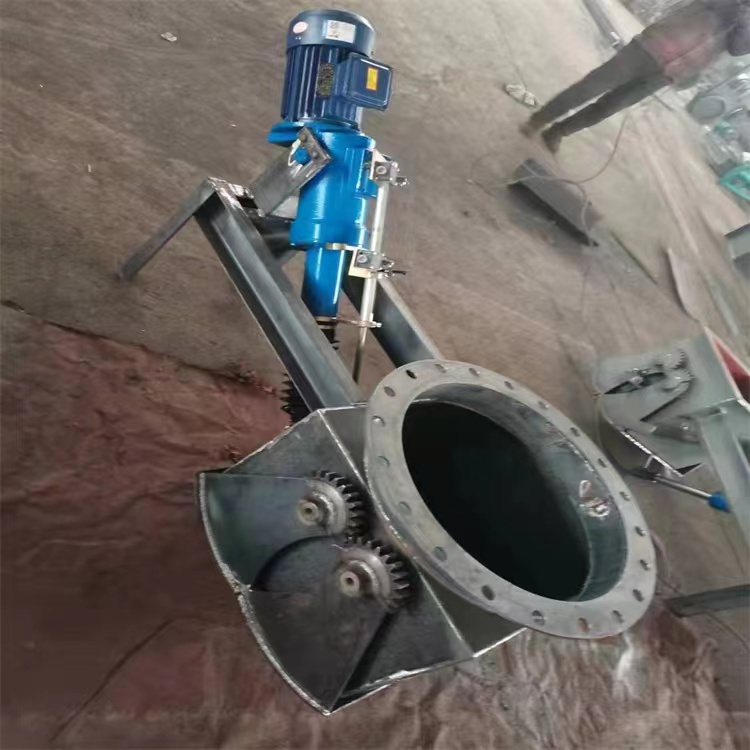

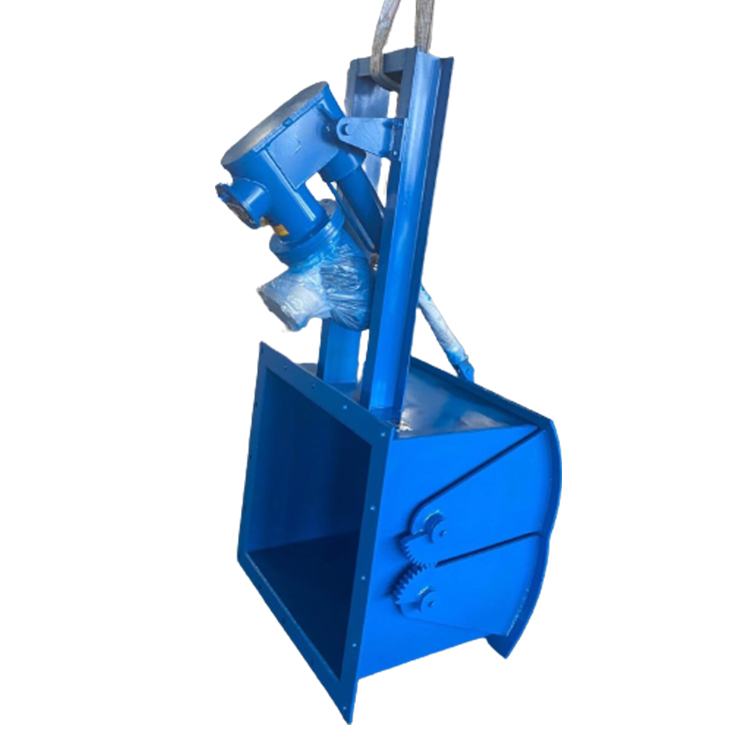

The鄂type gate valve consists of the body, sector gate, shaft, gears, seals, and actuator components. The lever is pushed by hand or the actuator, causing the gears to rotate the sector gate around the shaft, opening the two sector gates to the sides, allowing the material to fall. Once the receiving device is fully loaded, the actuator drives the lever to reset the sector gate, closing off the falling material.
