Electro-hydraulic Discharge Gate DEZ-600, Electro-hydraulic Hopper Bottom Deslagging Valve, Hopper Arch Discharge Valve
Brand:Anyuan Model:DSZ Material: Carbon Steel, Connection Type: Flanged, Suitable Medium: Crystalline Solids, Granular Materials, Powdered Materials, Pressure Environment: Atmospheric Pressure, Standard: National Standard, Drive Mode: Electro-hydraulic Push Rod, Working Temperature: Ambient Temperature, Specifications: See Below Table, Type (Port Position): Straight Through, Appearance: Medium Size
Working Principle

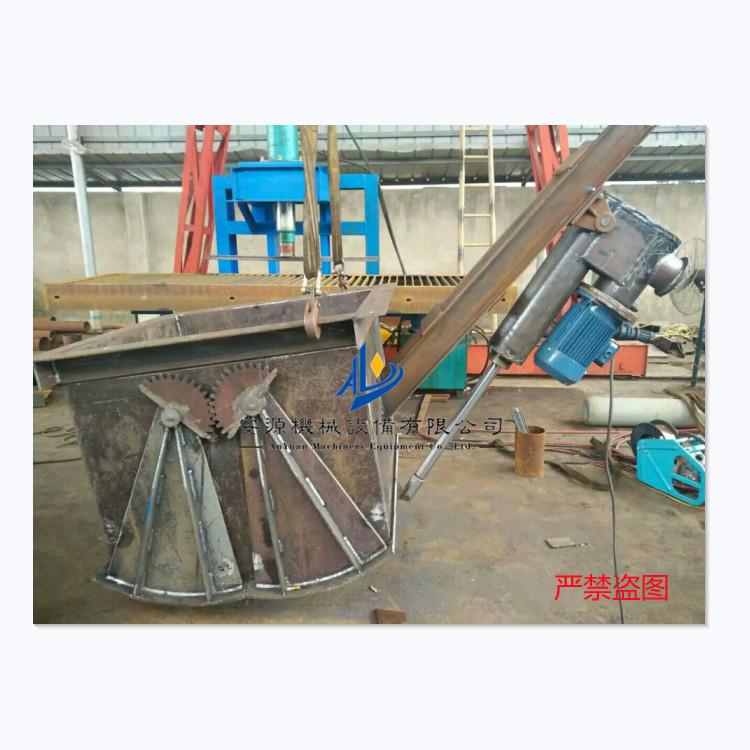

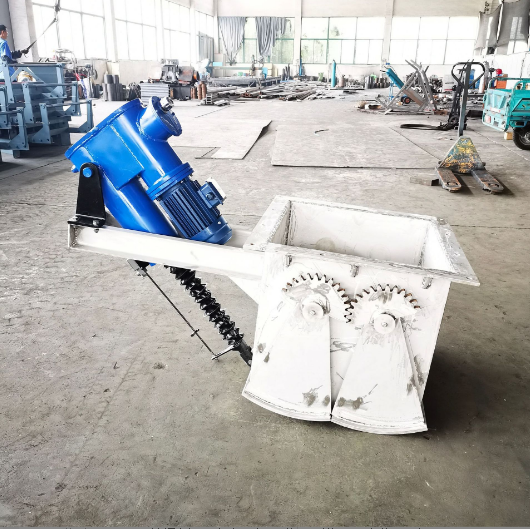

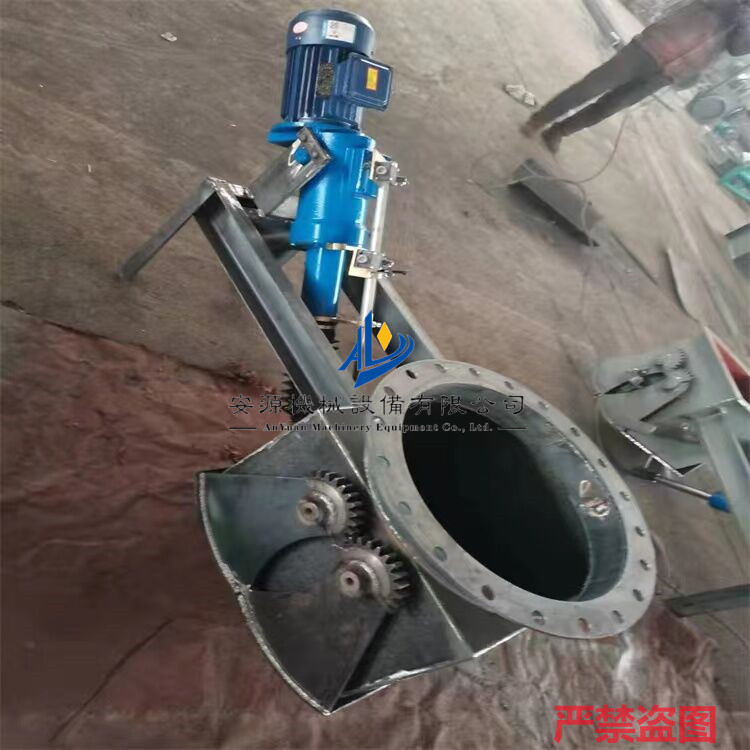

Electro-hydraulic sector gates are composed of the main body, sector gate plate, shaft, seals, and electro-hydraulic push rods, etc. The electro-hydraulic push rod drives the gear, which rotates the sector gate plate around the shaft axis, allowing the sector
The gate valve opens to one side, allowing the material to fall. Once the receiving device is fully loaded, the electric-hydraulic push rod drives the sector gate back into place, closing off the falling material.
Standard models and hydraulic/electric push rods accessories
1. DEZ-A Type Electro-Hydraulic Butterfly Gate Parameters
Model | Electro-hydraulic Push Rod Model |
DSZ-20A | DYT700-200 |
DSZ-30A | DYT700-260 |
DSZ-40A | DYT700-280 |
DSZ-50A | DYT1000-210 |
DSZ-60A | DYT1000-230 |
DSZ-70A | DYT1000-350 |
2. DEZ-B Type Electro-Hydraulic Butterfly Gate Specifications
Model | Electro-hydraulic Push Rod Model |
DSZ-20B45° | DYTZ700-130 |
DSZ-20B60° | DYTZ700-150 |
DSZ-30B45° | DYTZ700-150 |
DSZ-30B60° | DYTZ700-180 |
DSZ-40B45° | DYTZ700-180 |
DSZ-40B60° | DYTZ700-240 |
DSZ-50B45° | DYTZ1000-230 |
DSZ-50B60° | DYTZ1000-270 |
DSZ-60B45° | DYTZ1000-260 |
DSZ-60B60° | DYTZ1000-360 |
Structural Features
1. Simple structure
2. Smooth operation;
3. Low failure rate;
4. Quick disconnection available.
DSZ type electro-hydraulic sector gates are more convenient than manual sector gates and more durable than electric sector gates.
