Coal silo discharge loading valve, Electromagnetic hydraulic jaw valve, Q/Dy/SEZ gate valve

Features of Electro-hydraulic Sluice Gate
The electro-hydraulic sector gate at the discharge outlet is equipped with a dust cover to prevent dust from flying around. It uses an electro-hydraulic actuator as the power source, replacing the cylinder transmission, thus saving on engineering investment costs. The valve body of the electro-hydraulic sector gate features a stepped structure, reducing material flow impact. The critical parts of the valve body are lined with wear-resistant plates in a grid structure, minimizing direct wear on the plates.

This series of electro-hydraulic toggle gates is used in industries such as metallurgy, mining, power, chemicals, and building materials. It serves as the unloading device for various particle discharge systems.

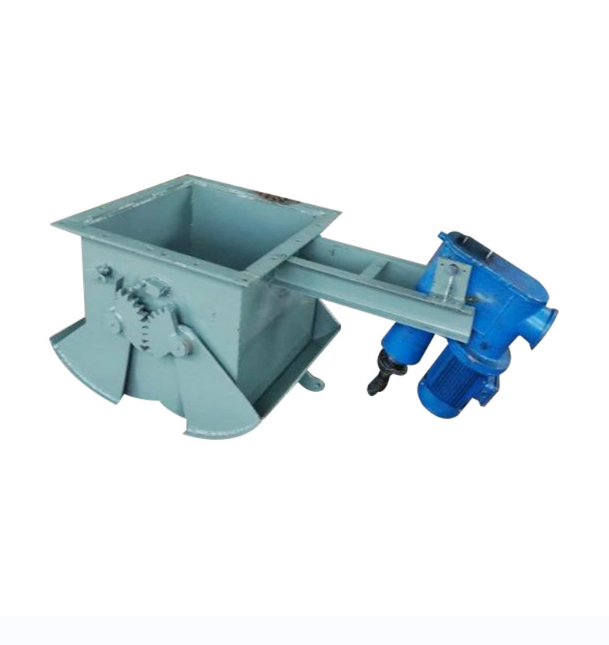

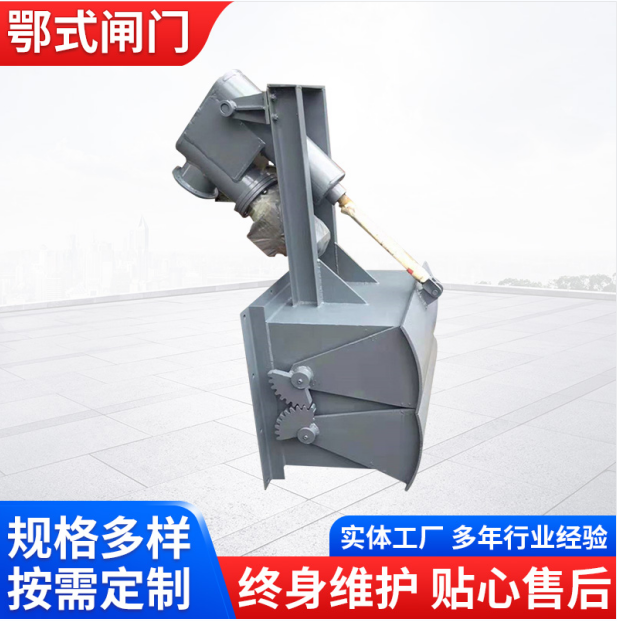

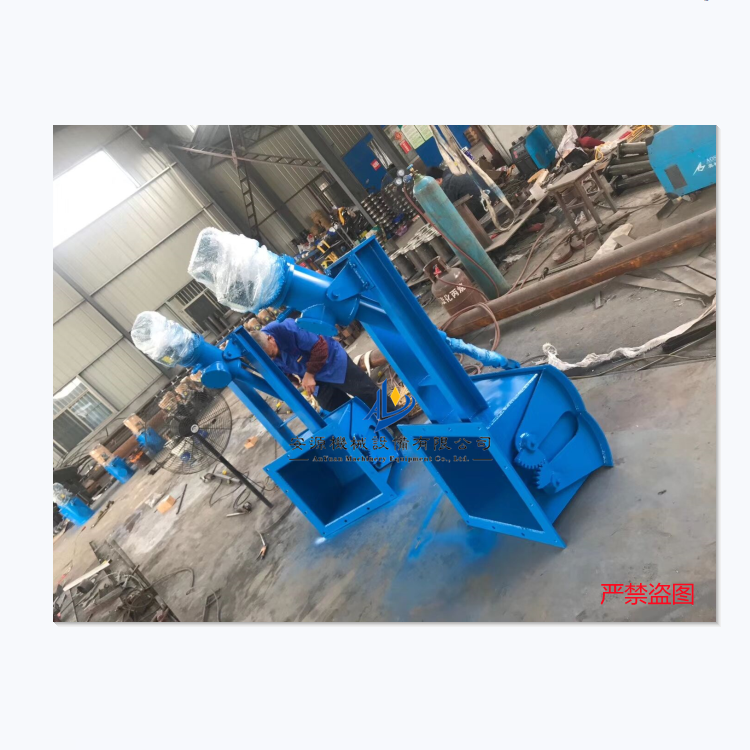

1. The DEZ type鄂式闸门 features a simple structure, constructed from steel plate welding. It is powered by electro-hydraulic drive and gear transmission, operates smoothly with a low failure rate, and is easy to maintain, allowing for quick cutoff of material flow.

2. The HDEZ type environmental-friendly jaw gate features a fully enclosed structure, compact design, electro-hydraulic push rod drive, and gear transmission, ensuring smooth operation with a low failure rate and no material jamming. It is easy to maintain, capable of quickly cutting off the material flow while being environmentally friendly.

Operation Instructions for Electro-hydraulic (Electric) Gate Valves (Sluice Gates): Please note the medium flow direction indicated on the gate body during installation. When connecting the flanges, be sure to add a sealing gasket, then evenly tighten the bolts. Next, during operation, identify the switch direction of the radial gate blade, and ensure the actuator is correctly wired. It is crucial to regularly apply lubricant to all transmission parts during operation to extend the lifespan of the labial valve. Improper operation can increase the degree of wear on the labial valve.

Electro-hydraulic flat gate working principle: The electro-hydraulic flat gate is mainly composed of a frame, screw nut, handwheel, and gate plate. HandwheelThe sprocket rotates, causing the screw and nut along with the gate plate to move horizontally back and forth, achieving the purpose of opening and closing the valve.
