Electro-hydraulic Push Rod鄂式Discharge Valve, Discharge Mouth Control Gate, DEZ-500 Jaw Valve

I. Model Description

EZ□□

 ┬ ┬ ┬

 │ │ │

 │ │ └─────────────Material in/out port dimensionsdm

 │ └──────────────-Drive Mode1Electro-hydraulic Push RodY(No marking required)2ManualS（3PneumaticQ

 └────────────────Electro-hydraulic butterfly valveDoor Structural Features and Applications: The palate gate series features a simple structure, easy operation, thorough unloading, long service life, and flexible opening and closing. Made of steel plate welding, it is driven by an electric (electro-hydraulic) push rod, ensuring smooth operation and low failure rate. It can quickly interrupt the material flow. Widely used in industries such as construction materials, metallurgy, mining, power, chemicals, light industry, and grain, it serves as the unloading control device for various drop-off systems.

Key Performance Parameters

（1Applicable Media: Crystals, solid granular materials, powdered materials.

（2Application Temperature:≤300°C

（3Medium Flow Rate:≤28m/s

（4Power Voltage:380V50Hz

（5Adjustment Feature: Two-position switch

（6Electro-hydraulic actuator model:DGSeries Electric Push RodsDYTSeries Electro-hydraulic Push Rod

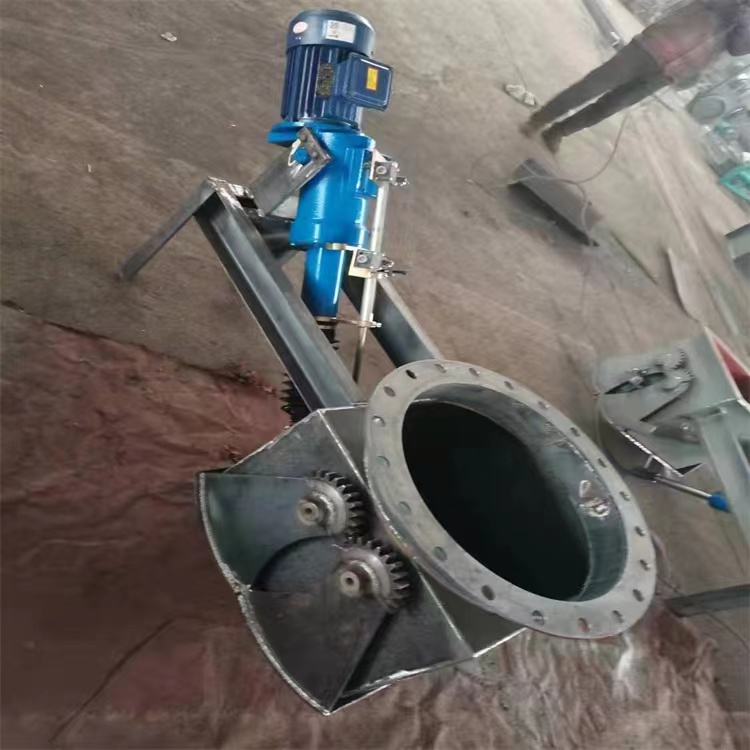

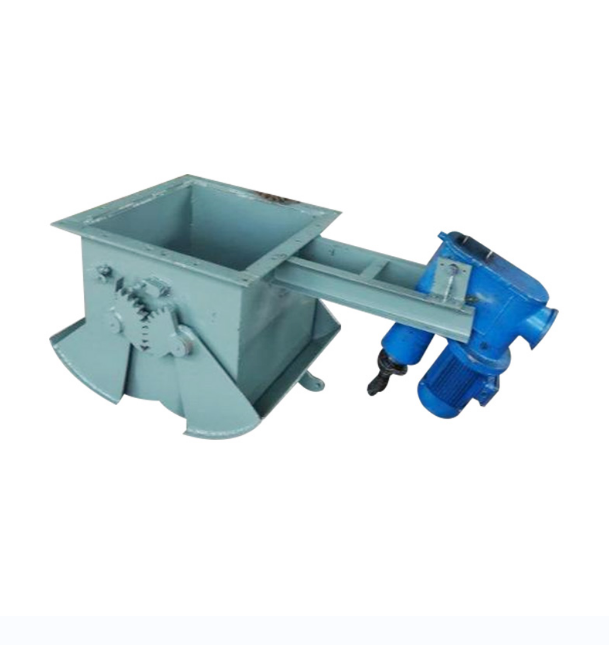

The electro-hydraulic butterfly discharge valve is made by welding carbon steel, featuring a unique structure, flexible operation, and reliable performance with no jamming. Equipped with different transmission devices, it can meet various working conditions.

The electro-hydraulic flip gate unloading valve is equipped with an electric push rod featuring an overload protection device, preventing motor burnout. It can be remotely operated or programmatically controlled, and the reciprocating stroke can be adjusted for position locking.

The electro-hydraulic bucket-type discharge valve is equipped with an electro-hydraulic actuator, featuring full hydraulic transmission and offering stepless speed adjustment for both thrust and pull force.

Electro-hydraulic gate valve structure features and applications:

This hydraulic-electric swing gate discharge valve features simple structure, easy operation, thorough discharge, long service life, and flexible opening and closing, and is widely used in industries such as metallurgy, building materials, mining, and power.

The palate gate is an ideal control device for various discharge systems.
