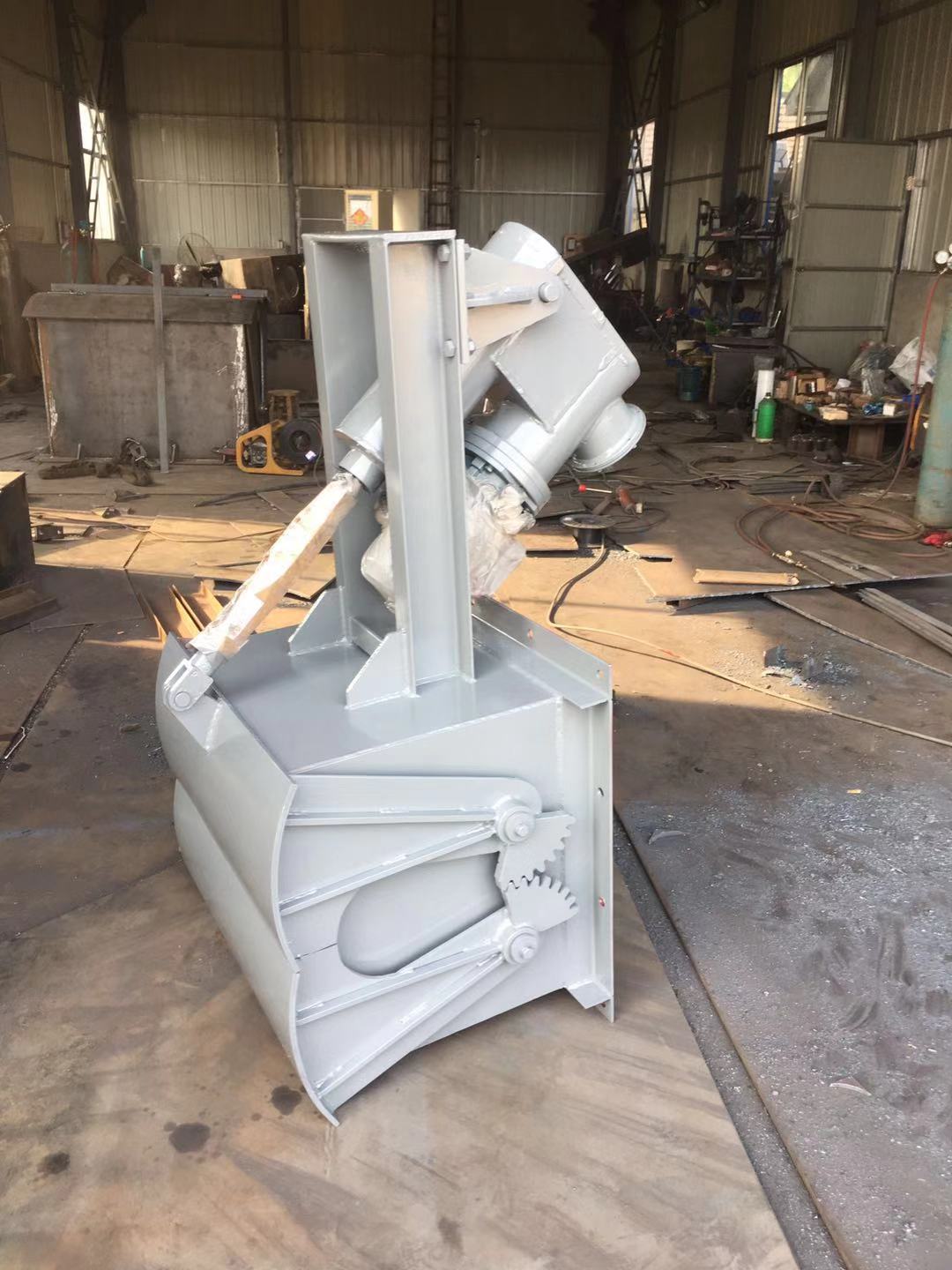

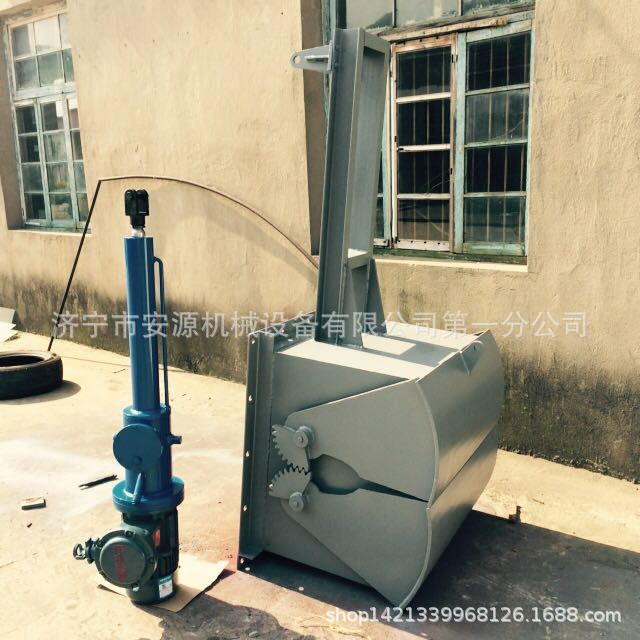

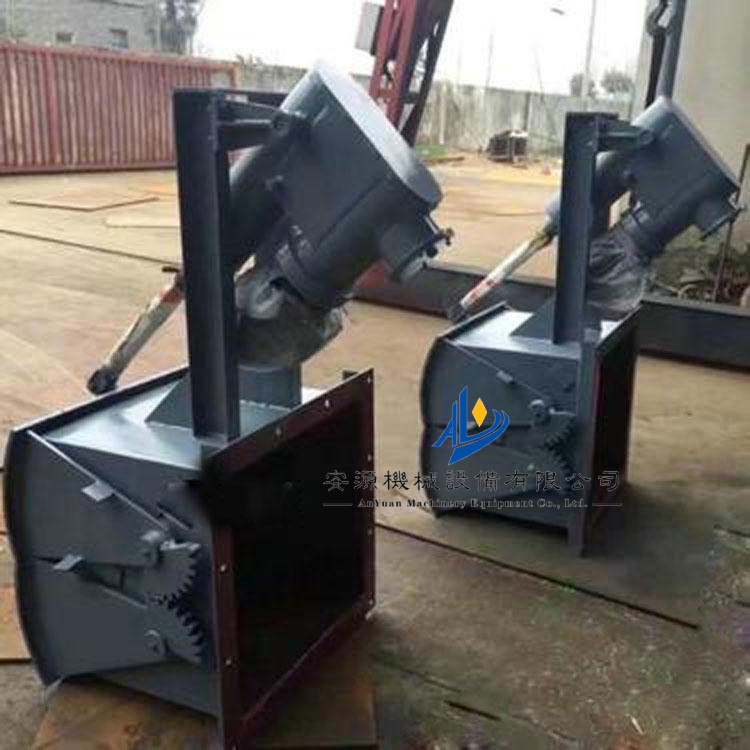

Coal storage discharging valve, Electric actuator jaw valve, Electro-hydraulic jaw discharging valve

Pleated gate[2]Please note the medium flow direction marked on the gate body during installation. When connecting the two flanges, seal washers must be added and the bolts must be tightened evenly.

Next, please identify the direction of the butterfly valve switch during operation and correctly wire the actuator. It's crucial to regularly apply lubricant to all transmission parts during operation to extend the lifespan of the plate valve.

Improper operation can increase the wear on the palate valve.

Pit gate applications

Pit GateSuitable for bulk materials such as various ores, coal, coke, slag, chemical products, etc., with a bulk density of ≤2.5t/m³, widely used in the bottom unloading of storage for industries like building materials, metallurgy, chemicals, and glass.

Our main business is:DT Electric Push Rod, DYTZ Electric Hydraulic Push Rod, Electro-hydraulic Swing Gate, Electric Jaw Gate, Electro-hydraulic Angle Drive, Imported Feed Hopper Dimensions

Electro-hydraulic push rod drives electro-hydraulic actuated flat gate valveDTZ Electric Push Rod, DYTP Electro-Hydraulic Push Rod, Explosion-proof Push Rod, DEZ鄂式闸门, Electro-Hydraulic Sector Gate, Electro-Hydraulic Discharge Feeder, Plow-type Discharge Feeder

Applicable Media: Dust, Fly Ash Ore, coal, coke, slag, square mouth abrasion-resistant manual jaw valve Model specifications are considered non-standard and special sizes in our industry; all are customized according to the size of the flange for the corresponding height.

Electric Jaw Valve Key Technical Parameters:

Nominal Bore Size:DN50mm～DN300mm（NPS2～12）；

Nominal Pressure:PN10MPa～16MPa（ANSI CLASS600～900）；

Note:SEF is manual, DEF is electric, Y is electro-hydraulic, QEF is pneumatic.
