Hydraulic jaw gate for cement and stone factories, Electro-hydraulic sector gate, Q/Dy/SEZ toggle gate for arch discharge

Brand:AnyuanModel: DSZ Material: Carbon Steel Connection Type: Flanged Applicable Medium: Crystalline Solids, Granular Materials, Powdered Materials Pressure Environment: Atmospheric Pressure Standard: National Standard Drive Type: Electro-hydraulic Push Rod Working Temperature: Ambient Temperature Specifications: See table below Type (Port Position): Straight-Through Shape: Medium

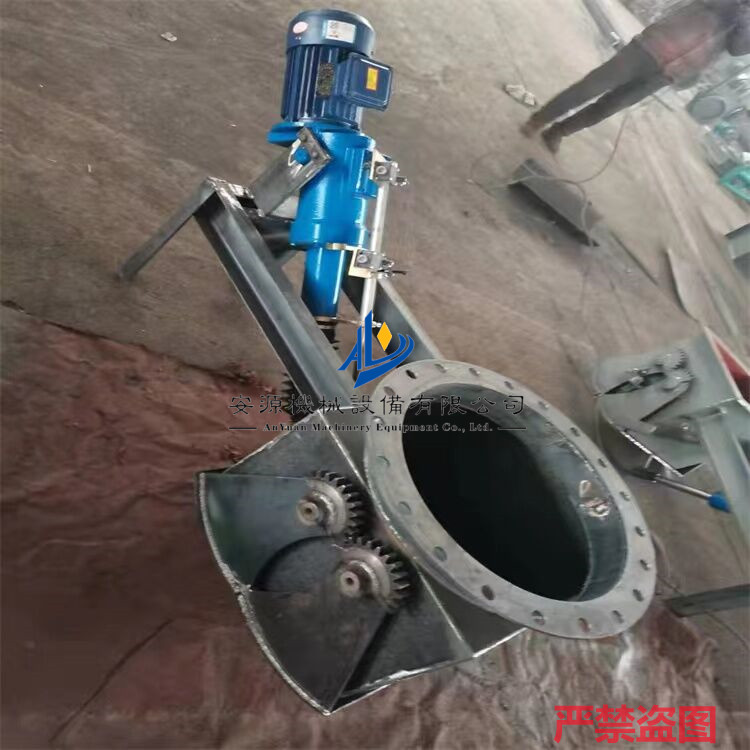

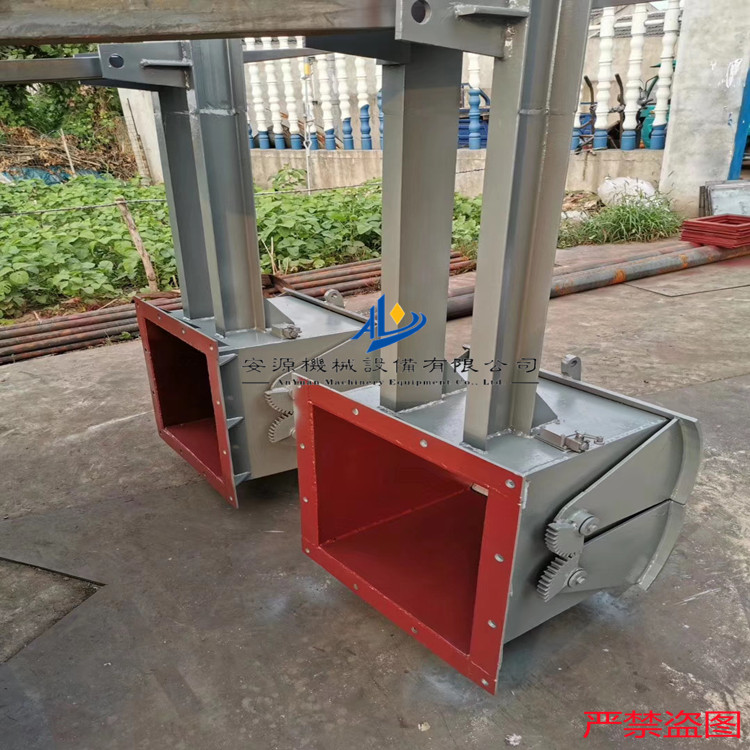

Working PrincipleElectro-hydraulic sector gates are composed of the main body, sector gate plate, shaft, sealing parts, and electro-hydraulic push rods. The electro-hydraulic push rod drives the gears, which rotate the sector gate plate around the shaft center, allowing the sector gate to open and close. The gate opens to one side, allowing the material to fall. Once the receiving device is fully loaded, the electric-hydraulic actuator drives the sector gate back to its original position, closing off the falling material.

Standard models and hydraulic/electric push rods accessories

1. DEZ-A Type Electro-hydraulic Butterfly Valve

2. DEZ-B Type Electro-Hydraulic Actuated Butterfly Valve Specifications

Structural Features

1. Simple structure

2. Smooth operation;

3. Low failure rate

4. Quick material cutoff.

The DSZ type electro-hydraulic sector gate is more convenient than the manual sector gate and more durable than the electric sector gate.
