Coal storage truck unloading ash valve DEZ-60 electric jaw gate, with power failure reset electro-hydraulic swing gate valve
Lip gates are suitable for compacted bulk density.≤2.5t/m3A variety of ore, coal, coke, slag, chemical products, and other bulk materials, widely used in the bottom discharge of warehouses for construction materials, metallurgy, chemicals, glass, and other industries.
Structural Features:
Pleated gate is made of carbon steel welded into shape, structure Operates flexibly and reliably with no jamming issues. Equipped with various transmission devices to meet different operational requirements. The electric jaw gate features an electric actuator with an overload protection device, preventing motor burnout, and can be remotely controlled or programmed. The reciprocating stroke can Adjustable positioning with self-locking. Electro-hydraulic swing gates utilize electro-hydraulic push rods, featuring full hydraulic transmission with infinite variable speed adjustment for both pushing and pulling forces. Pneumatic swing gates employ pneumatic push rods, which can be remotely controlled or locally operated through component combinations.SEFFor manual,DEFFor electricYEFFor electro-hydraulic driveQEFFor pneumatic use.
Performance Parameters:
Applicable Temperature(℃) | Bulk Densityt/m3） | Applicable Medium | ||||||||||
≤300 | ≤2.5 | Crystalline solids, coal, coke, slag, chemical products, and various ores | ||||||||||
Operating Principle:

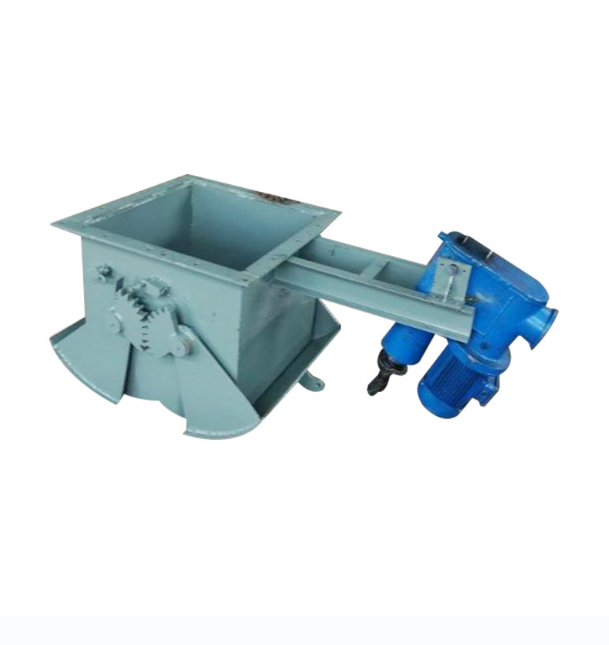

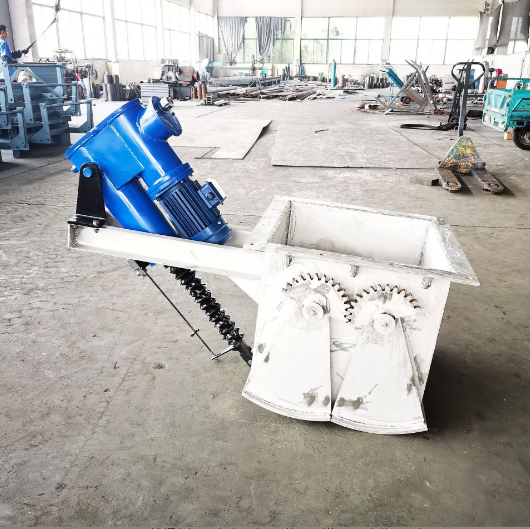

The gate valve consists of components such as the main body, a sector gate plate, shaft, gears, sealing pairs, and an actuator. Manually or through the actuator, the lever is pushed, causing the gears to rotate the sector gate plate around the shaft, opening the two sector gate plates to the sides, allowing the material to fall. Once the receiving device is fully loaded, the actuator moves the lever again to reset the sector gate plate, closing off the falling material.
Instructions for Use:
l Please note the medium flow direction marked on the gate body during installation. When connecting the flanges, it is necessary to add a sealing washer, then evenly tighten the bolts.
l Ensure you identify the direction of the butterfly valve switch during operation, and properly wire the actuator.
l Please regularly lubricate all transmission parts during operation.
