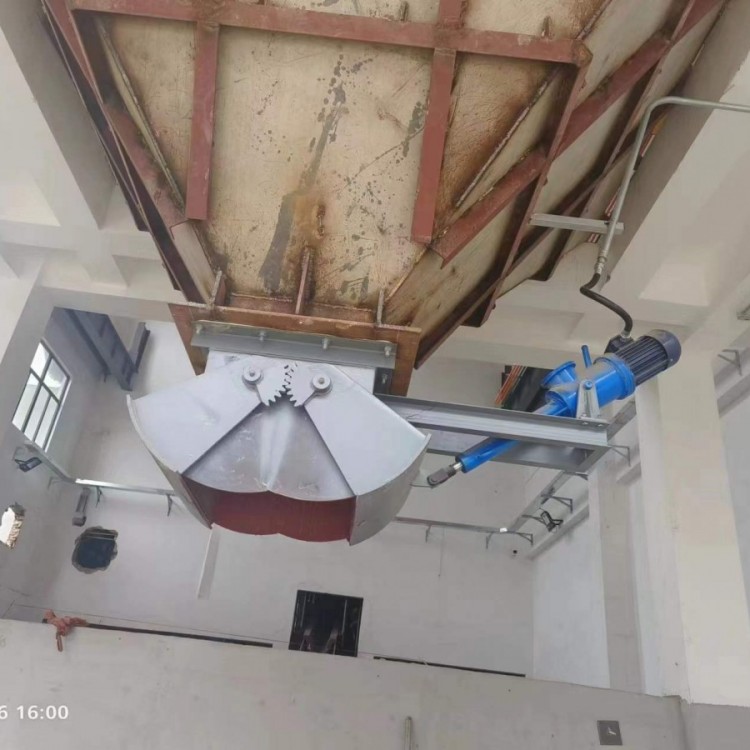

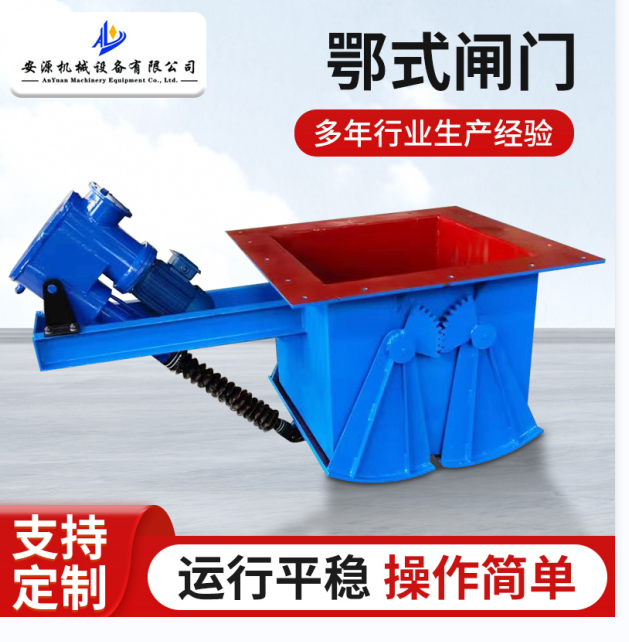

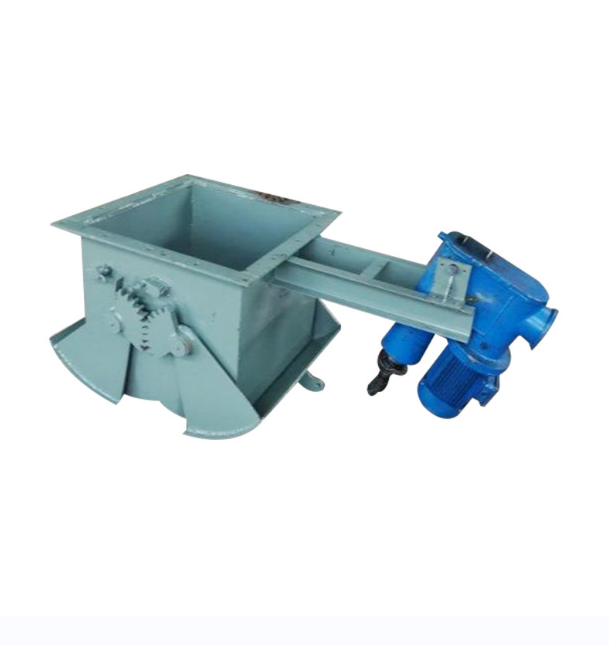

Jaw Type Discharge Valve DEZ-500 Electro-Hydraulic Double-Plate Gate Coal Storage Hopper Discharge Valve

1. Model Description

EZ□□

 ┬ ┬ ┬

 │ │ │

 │ │ └─────────────Material in and out port dimensionsdm

 │ └──────────────-Drive Method1Electro-hydraulic Actuating RodY(N/A)2ManualS（3PneumaticQ

 └────────────────Electro-hydraulic gate with sliding blade

Structural Features and Applications:

   Lip gate series with simple structure, easy operation, and convenient discharging  Long service life, flexible operation, adopts   Welded from steel plate, powered by an electric (hydraulic) rod, operates smoothly with low failure rate, and can quickly interrupt the material flow. Widely used in construction materials, metallurgy, mining, power, chemicals, light industry, grain and other industries, serving as the unloading control device for various material discharge systems.

Key Performance Parameters

（1Applicable Media: Crystals, solid granular materials, powdered materials.

（2Applicable Temperature:≤300°C

（3Medium Flow Rate:≤28m/s

（4Power Voltage:380V50Hz

（5Adjustment Characteristics: Dual-position switch

（6Electro-hydraulic Push Rod Model:DGSeries Electric Push RodsDYTSeries Electro-Hydraulic Push Rods

Electro-hydraulic butterfly discharge valve employs   Carbon steel welded forming, structure Operation is flexible and reliable with no jamming issues. Different drive systems can be utilized to meet various operational requirements.

Electro-hydraulic bucket type discharging valve utilizes an electric actuator with an overload protection device, preventing motor burnout. It allows for remote operation or programmable control, and offers reciprocating stroke capabilities. Adjustable positioning with self-locking feature.

The electro-hydraulic diaphragm discharge valve is equipped with an electro-hydraulic push rod, featuring full hydraulic transmission, and both thrust and pull forces can be achieved with stepless speed adjustment.

Electro-hydraulic flip gate unloading valve structural features and applications:

This hydraulic-biased gate valve for unloading is characterized by a simple structure, easy operation, and efficient unloading.  Long service life, flexible operation, and other features make it widely used in industries such as metallurgy, construction materials, mining, and power.

The palate gate is an ideal control device for various material discharge systems.

Applicable Medium: Dry Dust
