Product Applications:
This machine is suitable for industries such as chemicals, food, magnetic materials, and powders, and is a new generation of crushing equipment that integrates crushing, dust extraction, and continuous discharge.
Fineness up to 80-320 mesh; this equipment is suitable for high粉碎 fineness requirements.
Dehydrated fruit powder production process:
Washing - Slicing - Low-temperature Freeze Drying - Super Micro Pulverization
Operating Principle:

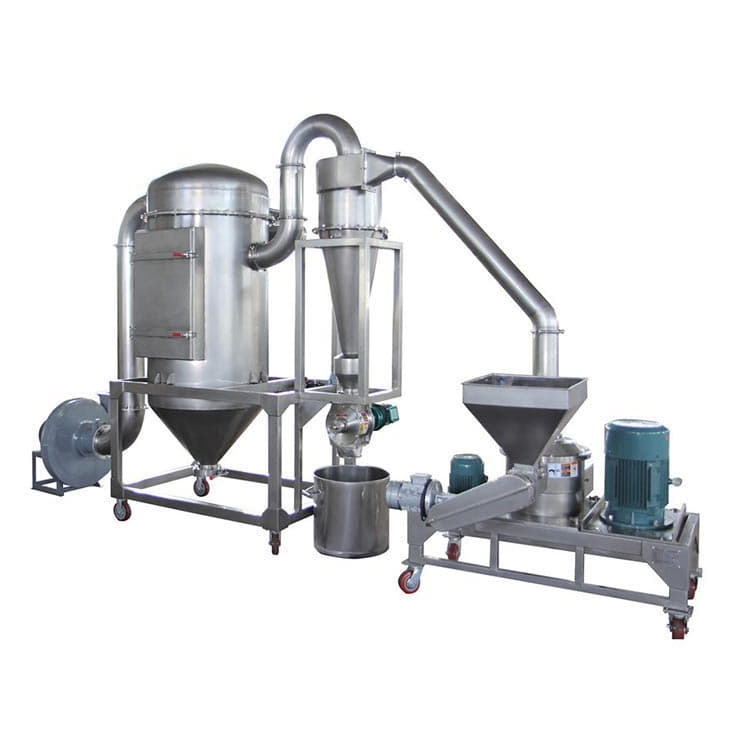

The machine is composed of several parts including the crushing main unit, cyclone separator, pulse dust collector, and centrifugal fan. Materials are fed into the crushing chamber through a hopper.

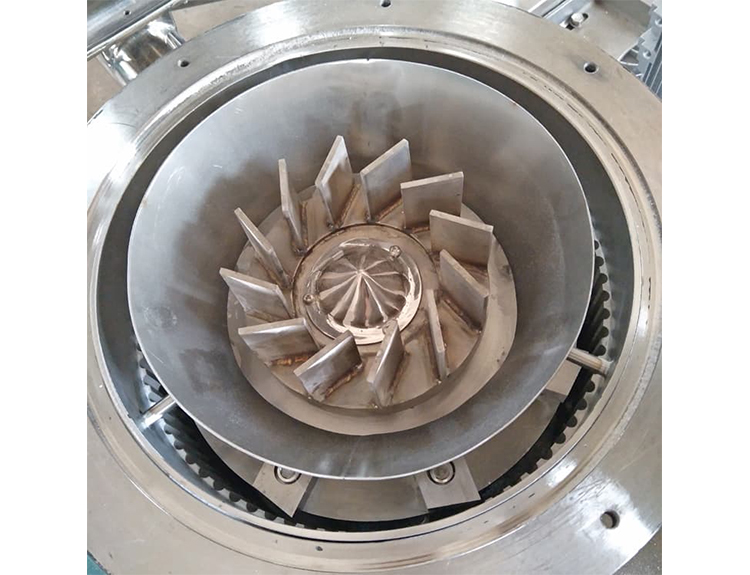

The material is crushed through the interaction and collision of the high-speed rotating active cutter disc and the fixed toothed disc, and the fineness of the crushed material can be adjusted by changing the grading impeller of the grading variable speed transmission.
The rotation speed is adjusted to achieve the desired fineness. The faster the classification impeller rotates, the finer the discharged material. The finely crushed material is then processed under the action of rotating centrifugal force and an induced draft fan.
Enter the cyclone separator room, discharge after passing through the fan, dust enters the pulse dust collector, and is filtered through the filter tube for recycling. The machine is designed according to "GMP" standards.
All made of stainless steel, with no dust飞扬 during the production process.
Features:
1. Equipped with wind selection, no sieving, no mesh, and uniform particle size, the production process is continuously conducted. It has reached the international advanced level.
2. The fineness of the discharge can be adjusted by changing the speed of the classifier impeller through the variable speed classifier.
3. The whirlwind automatic collection of materials saves labor.

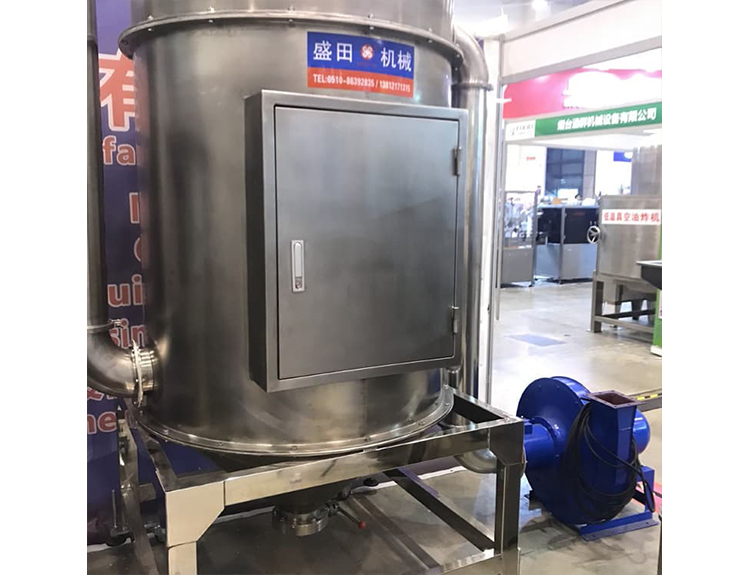

4. The pulse dust collector collects dust for recyclable use, reducing material waste. The production process maintains a dust-free environment, ensuring cleanliness and hygiene.
5. User-friendly, stable operation, easy to clean, high yield.
6. The activity blade is made of high-speed steel, offering a long service life and enhanced wear resistance.
