Product Attributes: Key Features

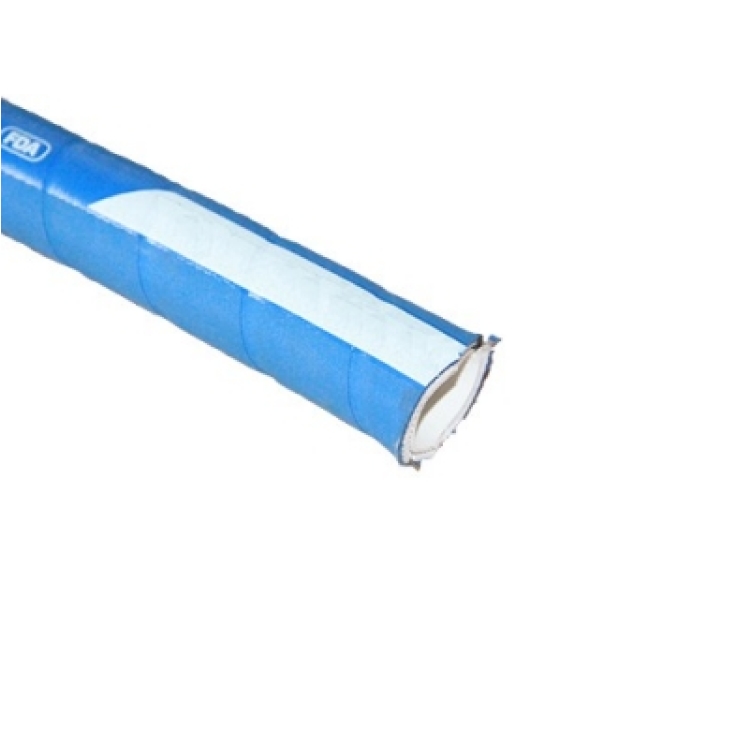

Inner Layer: White, smooth NBR oil-resistant food-grade rubber (FDA plasticizer-free)

Enhanced Layer: High-tensile fiber woven mesh and spiral steel wire

Outer Layer: Blue Abrasion and Aging-Resistant NBR Rubber

Operating Temperature: -30℃ to +90℃ (Steam cleaning, up to 130℃ for 30 minutes)

Applications

Ideal for conveying fluid containing fats, also suitable for suction and discharge of liquids like milk, wine, beer, fruit wine, juice, soda water, etc. Appropriate for use in food liquid tanker trucks, unloading areas, processing, and filling rooms, but not suitable for air compressor pipelines. Suited for mechanical accessories and material conveyance for food and cosmetics.

Product Advantages Availability

The inner layer is a smooth, white food-grade NBR rubber, meeting FDA requirements and GB non-phthalate standards, making it difficult for bacteria to adhere and multiply. It is soft, easy to handle, and does not tangle. It can withstand standard CIP cleaning or a high-temperature steam cleaning of 130℃ for 30 minutes. The outer rubber is resistant to aging and abrasion.

* Lightweight, soft, and easy to operate * Non-toxic and odorless inner layer * Smooth inner layer, resistant to bacterial growth * Free of plasticizers in compliance with GB standards and FDA food-grade requirements * Smooth inner layer with low resistance, easy to clean * Suitable for CIP cleaning * Outer layer is oil, wear, and aging resistant * Wire grounding for static electricity resistance * Resistant to negative pressure and vacuum

Certification and Standards

Food grade certified to FDA 21 CFR 177.1550.

GB4806 Requirements for Permits of Food Contact Materials.

GB31604: No plasticizer-free certification required.
