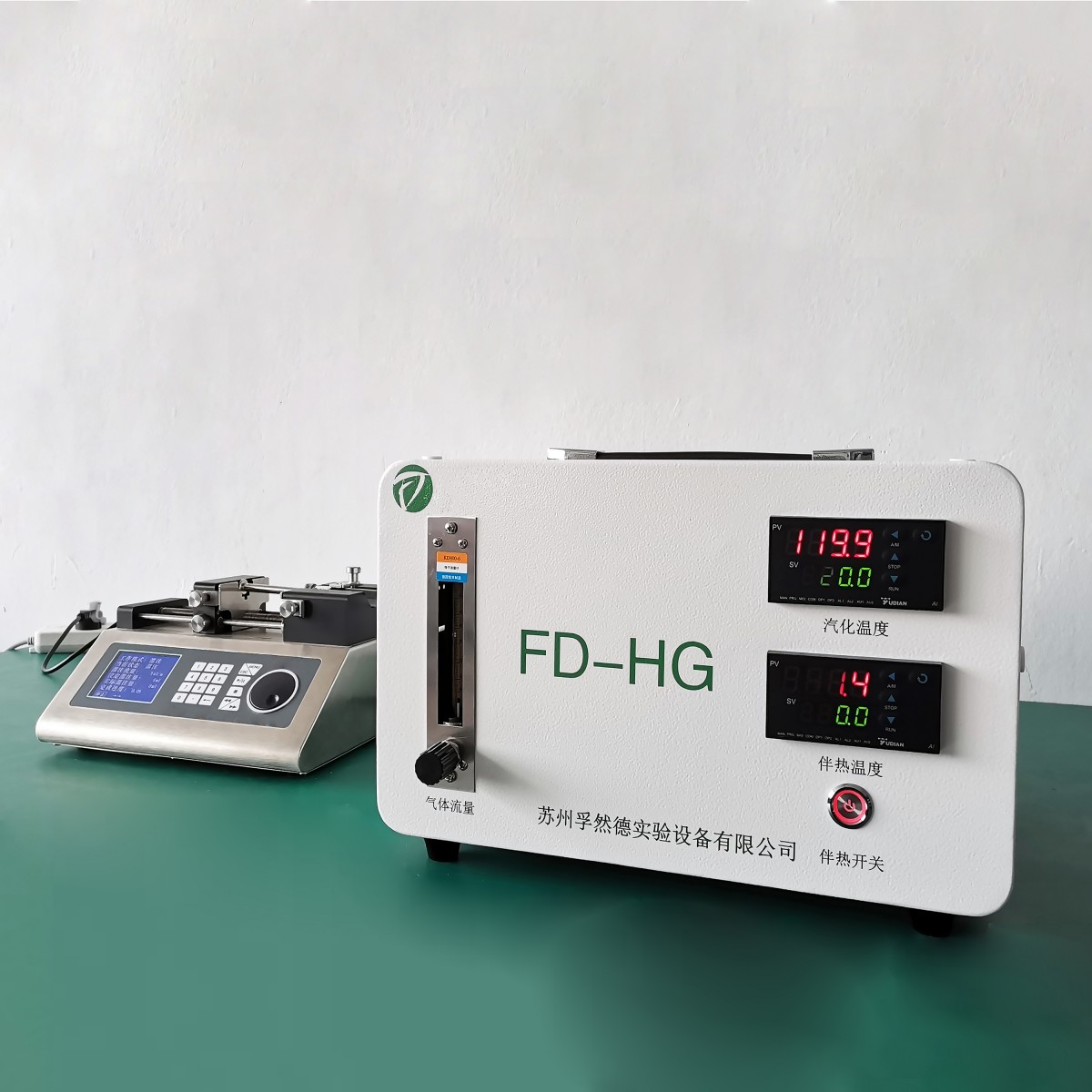

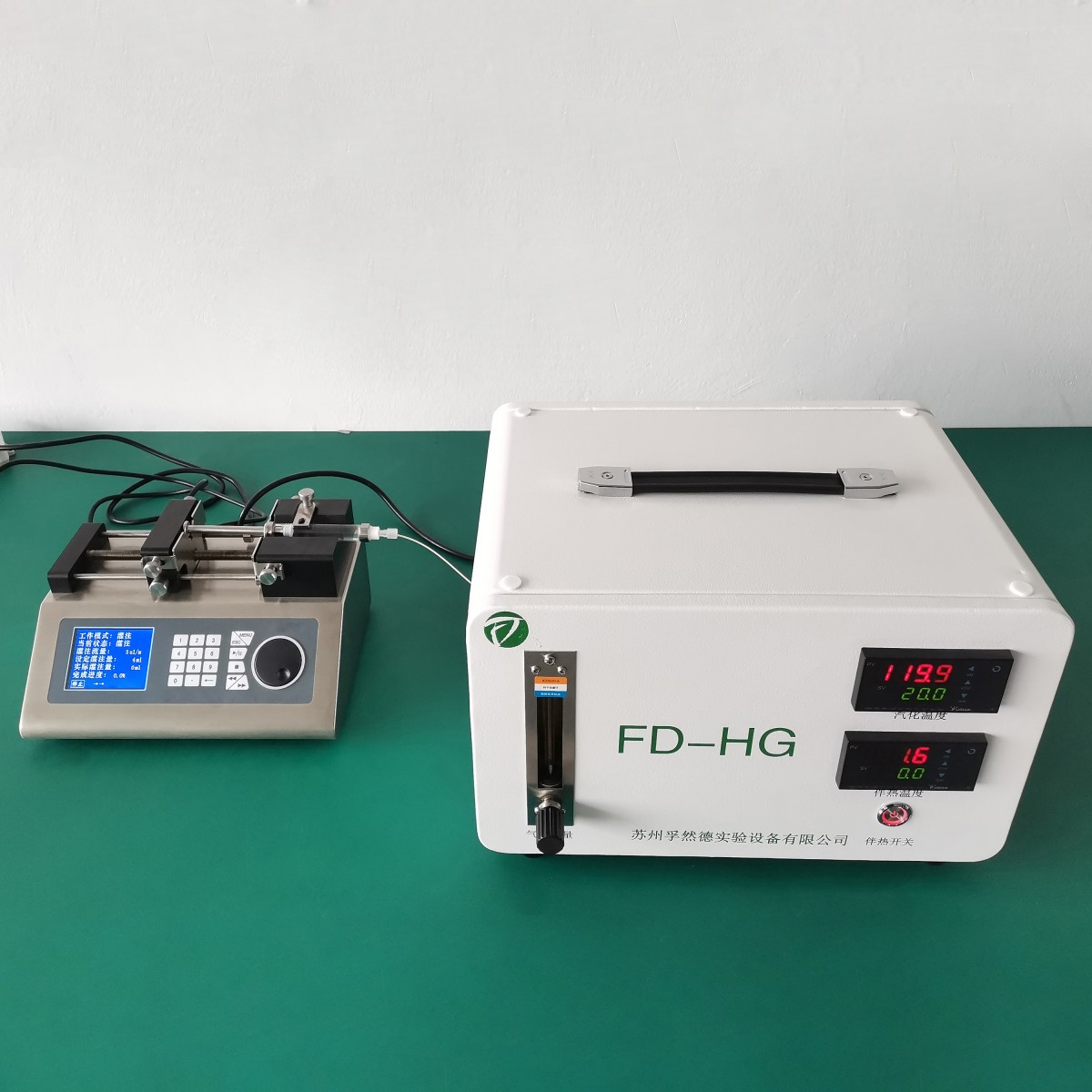

PrecisionHumidity Generator

Overview

PreciseHumidity GeneratorIt is a unit capable of independently adjusting steam flow, vaporization temperature, and gas preheating and mixing to achieve a constant humidity gas.

Technical Specifications:

(1) BrandFurande

（2）Carburetor Material：Aluminum Alloy/SUS316L

（3）Work pressure：Atmospheric Pressure - 2 MPa

（4）Vaporization Temperature：120℃；

（5）Export humidity fluctuation range：±1%；

（6）Relative Humidity, Operating Temperature: Normal -90℃；

（7）Gas Flow Rate: 0-1 (L/min); 1-10 (L/min); Above 10 L/min

Basic Functions

(1) Achieves uniform and stable vaporization of water at a constant temperature

(2) Achieves constant humidity gas regulation

(3) Capable of independently achieving heat preservation for gas export pipeline

Product Features:

Humidity is accurately controlled within the adjustable range.

(2) Export humidity is stable, with consistent steam control under experimental conditions of water vapor content.

(3) Export with heated control to prevent steam condensation or to match the pipeline temperature with the reactor's operating temperature.

(4) Gas flow is adjustable, easily mixing the pre-mixed proportions with steam.

(5) The equipment is equipped with a preheating mixer inside, which ensures uniform mixing and prevents condensation.

(6) Export with heated temperature control to prevent steam condensation.

(7) Steam ratio can be precisely adjusted according to experimental requirements.

(8) Gas flow is controlled by a gas mass flow meter, ensuring stable and adjustable gas flow, unaffected by air pressure, with high accuracy.

Certificate Display:

Application Areas:

Fine chemicals/catalytic materials/steel & coal/instrument calibration fields

Customer Case
