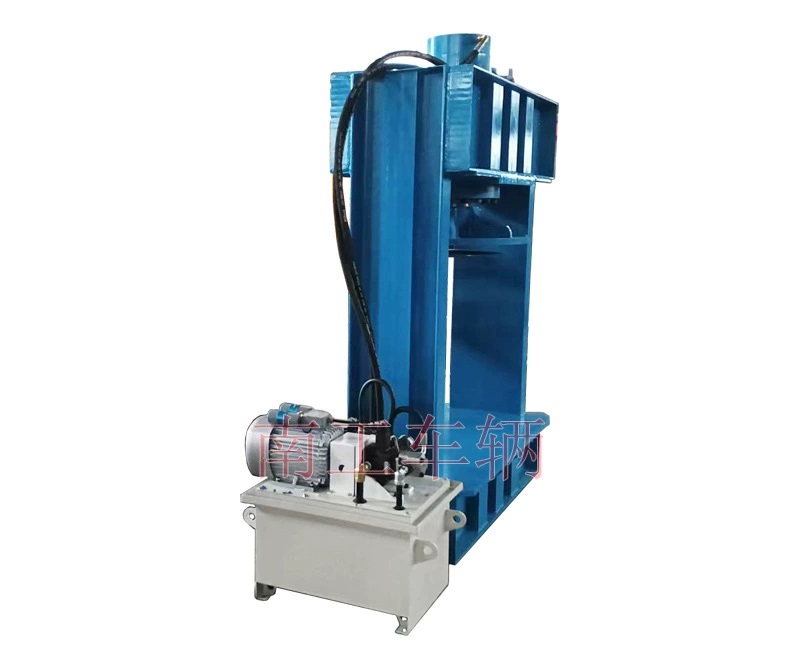

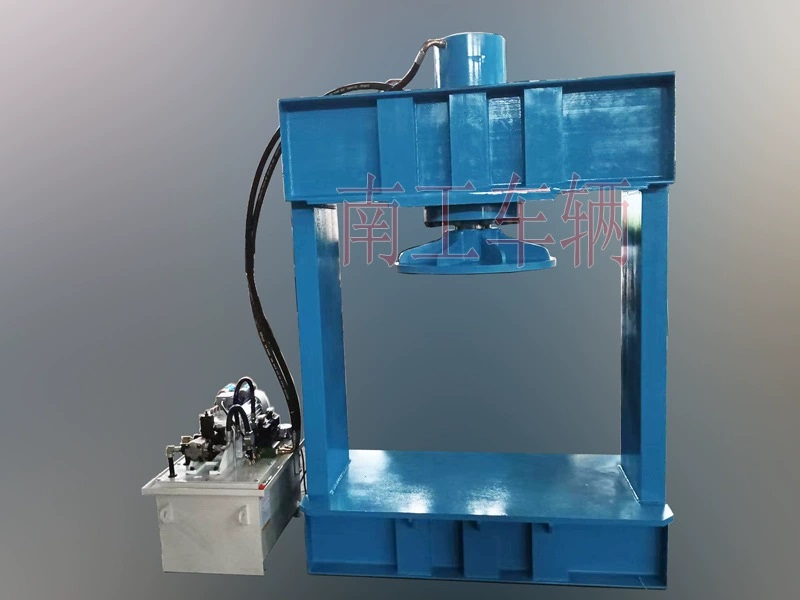

Flat Tire Machine / Tire Demounting Machine / Solid Tire Pressure Machine
Brand: NanGong, Model: PT100, Load Capacity: 100T, Voltage: AC380V, Motor: 4KW, Color: Blue, Net Weight: 2 tons
Solid tire inflation machine, tire demounting machine, detailed specifications:
Power: AC-380V (Alternating Current) 60Hz
Hydraulic System Pressure: 16-20 MPa
3. Motor Power: 4 kW
4. Motor Speed: 1430 RPM
5. Hydraulic Pump Displacement: 40ml with a 4ml dual pump;
6. Cylinder Type: Double-acting piston cylinder
7. Piston Size: Φ250
8. 1474 x 700 x 1995 MM
9. This tire molding machine is equipped with 6 sets of molds in sizes 500-8, 600-9, 650-10, 700-12, 28*9-15, and 825-15.

Color: Blue.

Solid tire inflator, tire dismounting machine, and wheel rim assembly for large vehicle tires used in metallurgy, chemical industry, coal mining, water conservancy, etc., available for long-term custom orders by Nangong Vehicle.
Application ScenarioFor solid tires, engineering tires, etc., suitable for disassembly, high pressure resistance, a wide range of available sizes and models, and customizable molds.
