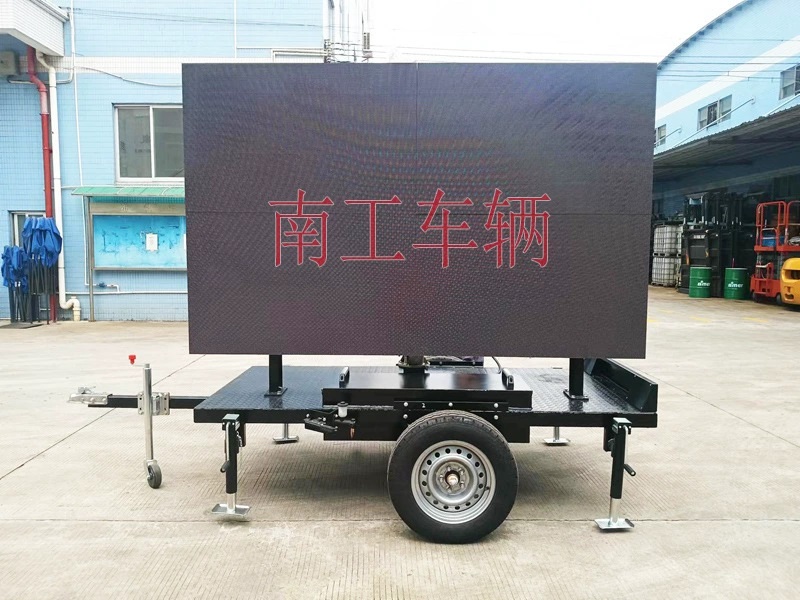

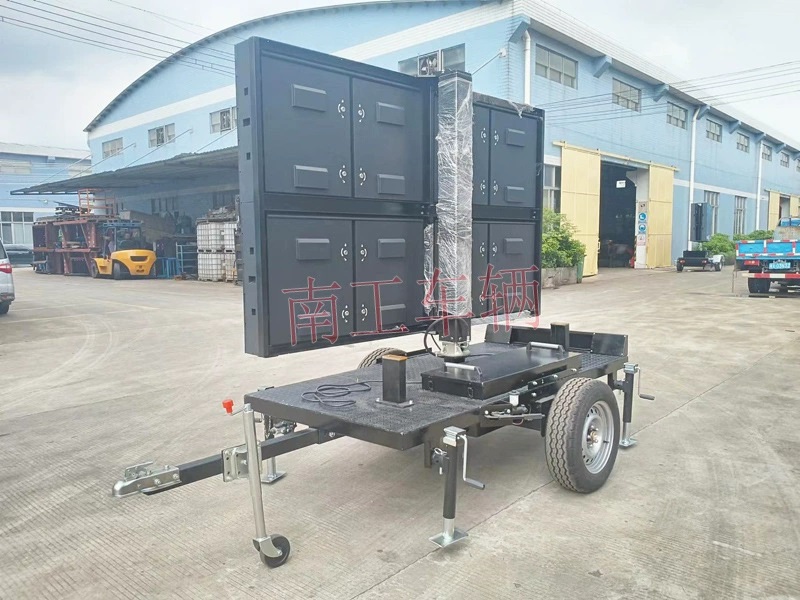

Lightweight Simple LED Advertising Trailer Single-Sided Screen
Brand: NanGong, Model: NGADRV-12/24-2H, Load Capacity: 0.6 tons, Plate Size: 2.46*1.2 meters, Color: Black; Net Weight: 360 kg;
Detailed configuration of lightweight LED advertising trailer: (to be executed according to the mutually confirmed plan)
1. Load Capacity: 0.6T
2. Trailer Display Screen Size (Length*Width): 2.56*1.6M, Chassis Size (Length*Width): 2.46*1.2M, Ground Clearance Approx. 0.65M, Integrated and Detachable Screen Bracket with Lift Rod
3. Tires: 2 x 195/70R15 inflation tires, single load capacity: 0.9T, speed: 60KM/H; tires equipped with anti-theft screws, mudguards included, with side marker lights on the mudguards.
4. Traction: Single-bar traction design, with a swivel support wheel mounted on one side of the traction rod for easy manual movement, which folds up during operation.
5. Vibration Reduction: Torque shaft vibration reduction mechanism.
6. Brakes: Hydraulic handbrake
7. Screen Lift: Hydraulic lifting mechanism, lift stroke 1.2M
8. Display Rotation: Manual rotation; 270-degree angle.
9. Leg Support: Four manual adjustable legs are installed at the bottom of the vehicle body for parking support, which can be retracted by rotating and lifting during driving.
10. Tail Lights: Equipped with 12V LED three-color tail lights on both sides of the trailer rear end; wires are processed with concealed wiring.
11. Case: One distribution box with the vehicle frame.
12. Color: Black

13. No batteries, chargers, or advertising screens included.

Lightweight, simple LED billboard trailer one-sided screen, customized for Nangong vehicles, available for long-term non-standard orders. This trailer is equipped with hydraulic lifting and manual rotation, categorizing as a simple type LED billboard trailer. It can move around the site and is convenient for transportation. The exterior is simple yet elegant, offering a reasonable price.
Application ScenarioLED advertising trailers are used for on-site displays, interactions, and communications with audiences or consumers in bustling commercial areas, squares, residential communities, and park squares, offering a wide promotional range and achieving excellent direct ad exposure for clients.
