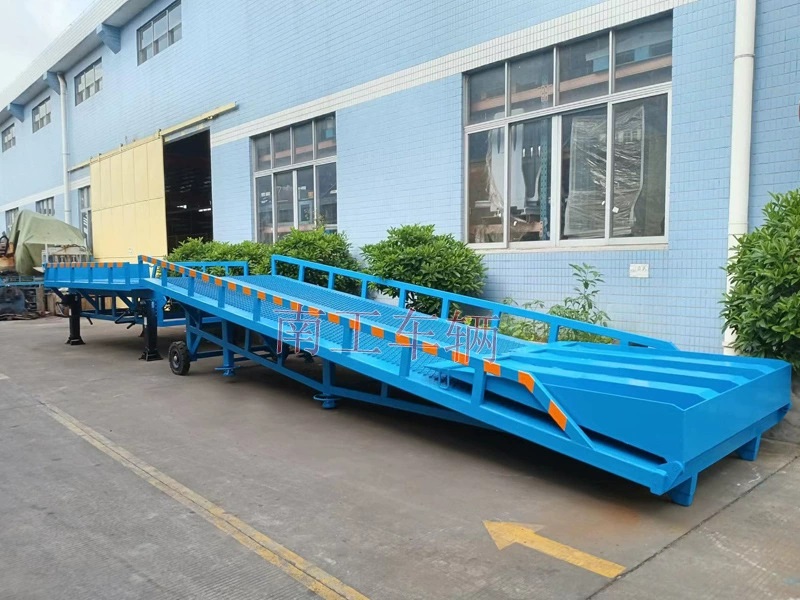

10-ton detachable mobile boarding bridge

Brand: Nangong, Model: NGRAT10M12/21-2S, Size: 2.1*12.7 meters, Load Capacity: 10 tons, Self-Weight: 3 tons, Color: Blue.

10-ton Split-type Mobile Boarding Bridge Detailed Specifications:

This bridge body features a segmented splicing design, where the rear section is connected to the front end when in use, and can be separated and moved for storage when not in use, effectively addressing the issue of insufficient storage space.

2. The ends are joined to prevent slippage, with each joint featuring a positioning card slot and a positioning boss.

3. This bridge deck has a load-bearing capacity of 10 tons, with a total length of 12.7 meters and a width of 2.1 meters. The height is adjustable from 1.15 to 1.65 meters. The main beam is made of 16# steel, while the auxiliary beam is made of 10# steel.

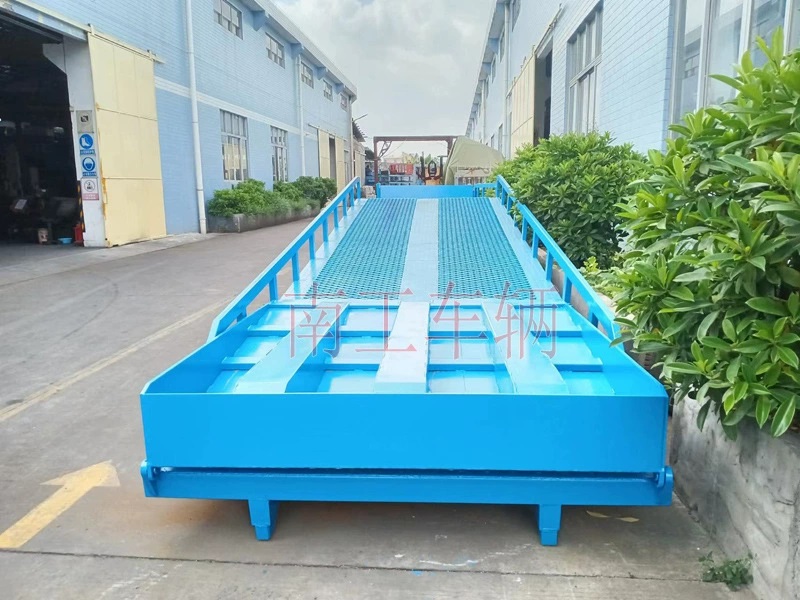

4. The bridge deck is equipped with 4mm patterned boards and diamond anti-slip mesh to prevent slippage during operation.

5. The design of the vehicle axle is compact and robust, preventing deformation after dynamic load application.

Color: Blue.

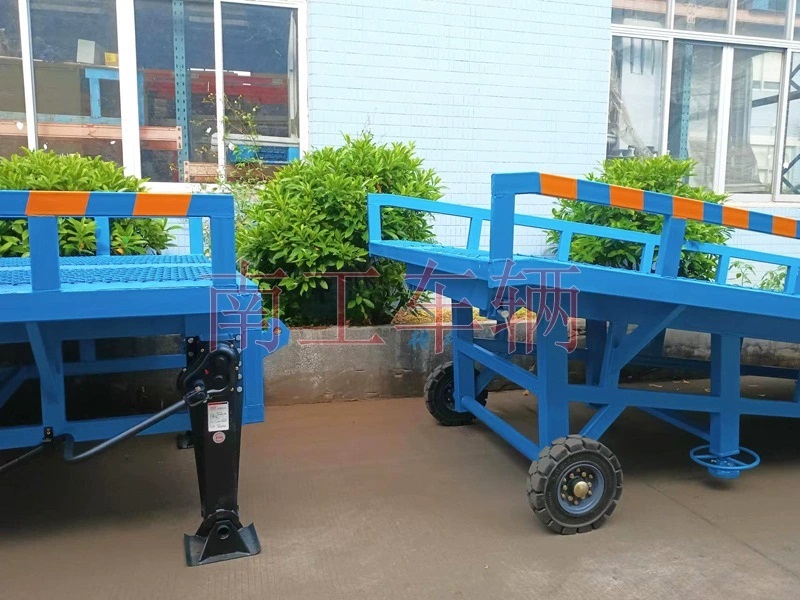

10-ton split-type mobile boarding bridge for southwork vehicles, non-standard customized. Split-type boarding bridge, with the platform and bridge body as two separate independent facilities, convenient for transportation, high load capacity, practical and convenient, and smooth loading and unloading.

Application: The mobile loading bridge is an auxiliary equipment for cargo handling, used in conjunction with forklifts. It can adjust its height according to the height of the vehicle's cargo area, allowing forklifts to directly drive into the cargo area for bulk loading and unloading. With only one person required, it achieves rapid loading and unloading of goods. It helps businesses reduce labor costs, improve work efficiency, and achieve greater economic benefits. The split-type loading bridge can be separated into the platform and the bridge body, making it convenient for storage and transportation due to limited work area.
