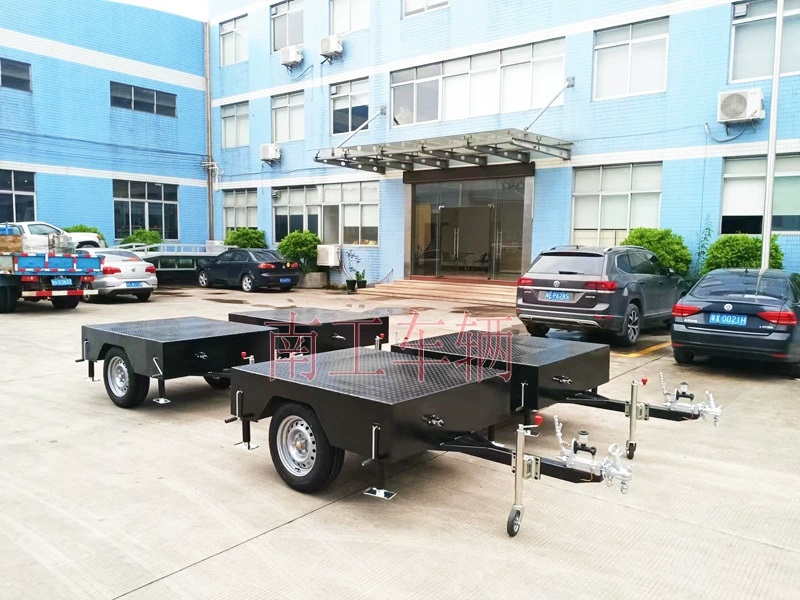

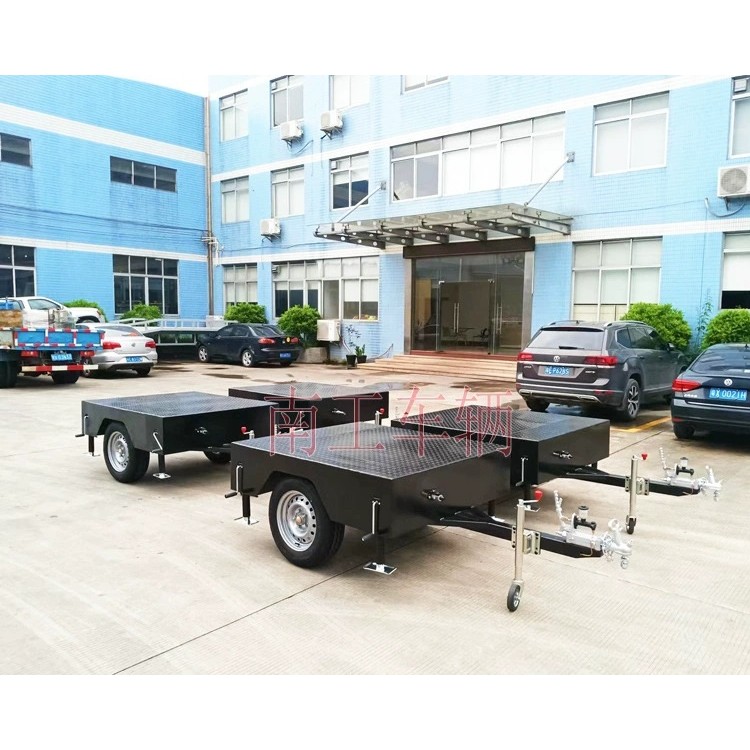

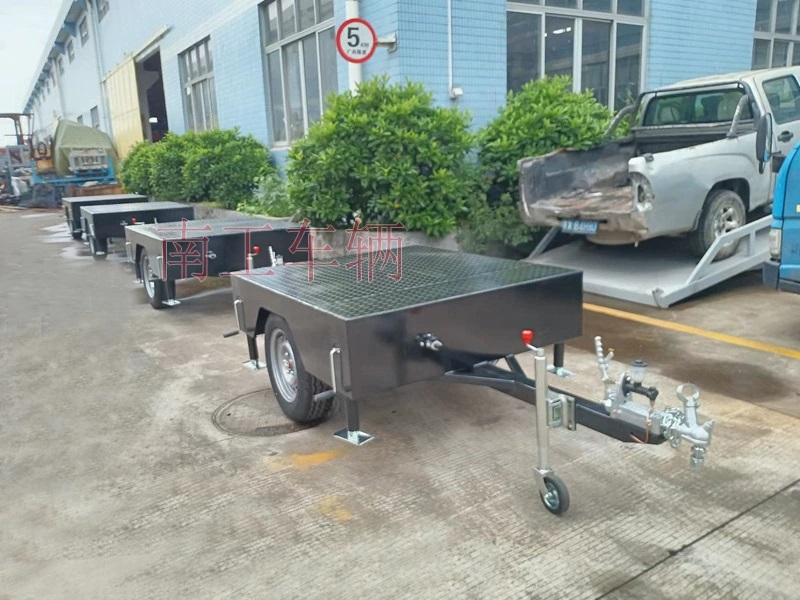

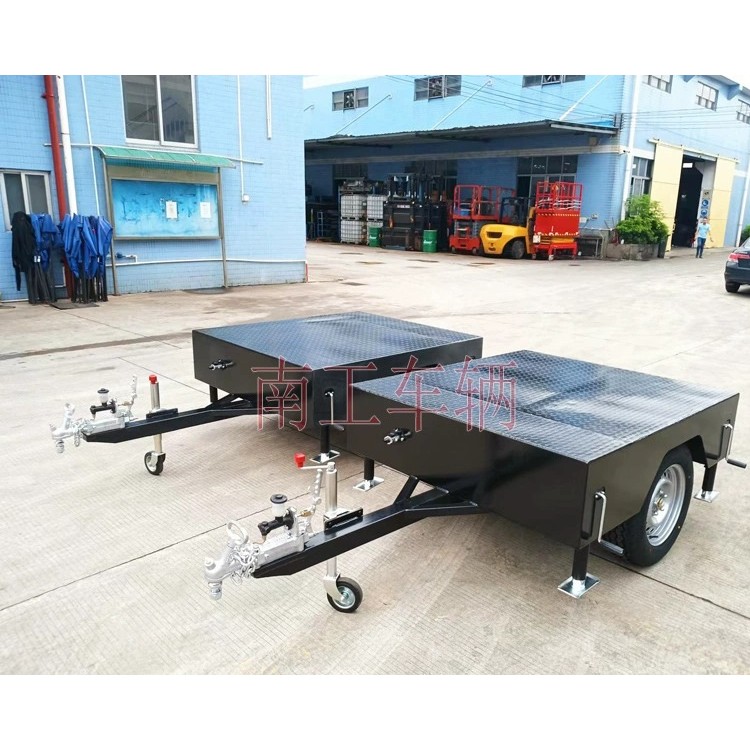

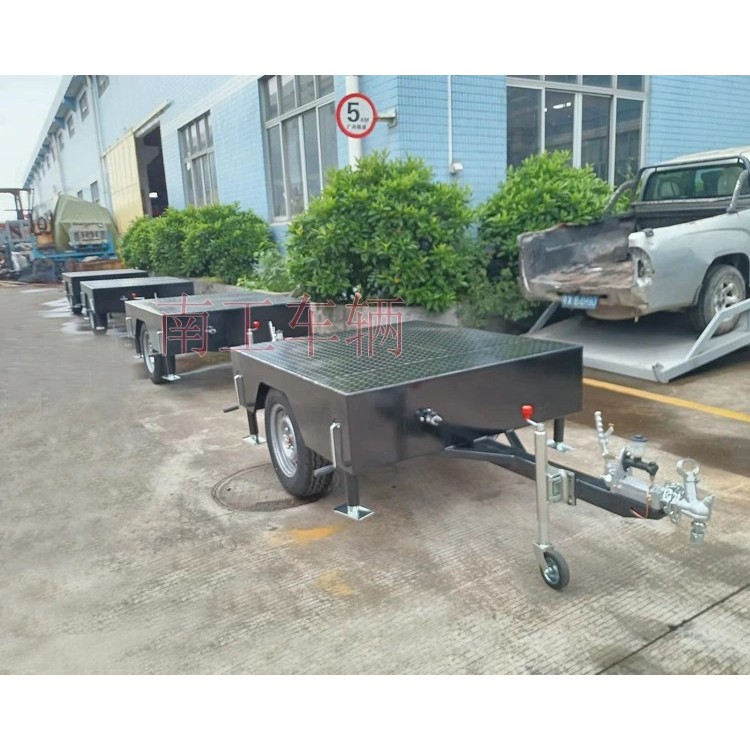

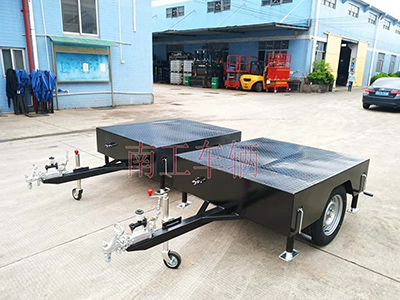

0.7-ton compact fire suppression flatbed trailer with a gooseneck semi-trailer
Brand: Nangong, Model: ATV07-14/16, Load Capacity: 0.7 ton, Deck Size: 1.6*1.4 meters, Tires: 195/70R15, Color: Black, Net Weight: 330KG
0.7-ton compact fire fighting flatbed trailer ATV gooseneck trailer detailed specifications:
The trailer is designed as a non-powered trailer, with a carrying capacity of 0.7 tons. The frame and deck dimensions are 1.6 meters in length, 1.4 meters in width, and 0.8 meters in height. The towing length is 1 meter, equipped with adjustable legs at the four corners, which fold inwards when in motion.
2. Includes a set of torque shafts and two sets of 195/70R15 tires, with a driving speed of 60KM/H.
The trailer's main structure is made of sheet metal welding, and the mudflap is designed to be concealed within the body.
4. The towing section features a collision brake-type tow bar, with continuous towing equipped with a 2-inch spherical EN standard tow ball.
5. This vehicle does not include water cannons, water pumps, power systems, and other mounted equipment.
6. The vehicle is black in color.

7. The entire vehicle dashboard is covered with a 4MM thick patterned board for anti-slip purposes.

0.7-ton compact fire truck flatbed ATV trailer, Southwork brand, long-term non-standard customization, steel structure with heavy load capacity and good quality, long service life.
Application ScenarioFor moving fire equipment, also suitable for short-distance transport and周转 of small hardware, small machinery, and small metal building materials.
