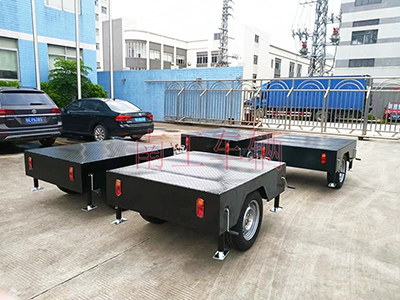

0.7-ton Compact Firefighting Flatbed Trailer with Full-Attachment ATV
Brand: Nangong, Model: ATV07-14/16, Load Capacity: 0.7 tons, Platform Size: 1.6*1.4 meters, Tires: 195/70R15, Color: Black, Net Weight: 330KG
0.7-ton Compact Fire Extinguisher Flatbed ATV Trailer Detailed Specifications:
The trailer is designed as a non-powered towed type, with a carrying capacity of 0.7 tons. The frame and deck dimensions are 1.6 meters in length, 1.4 meters in width, and 0.8 meters in height. The tow length is 1 meter. It comes with lifting legs at each corner, which fold inwards when in motion.
2. Comes with a set of torque shaft and two sets of 195/70R15 tires, travel speed at 60KM/H.
3. The trailer's main structure is made of sheet metal welding, with the mud flaps designed to be concealed within the body.

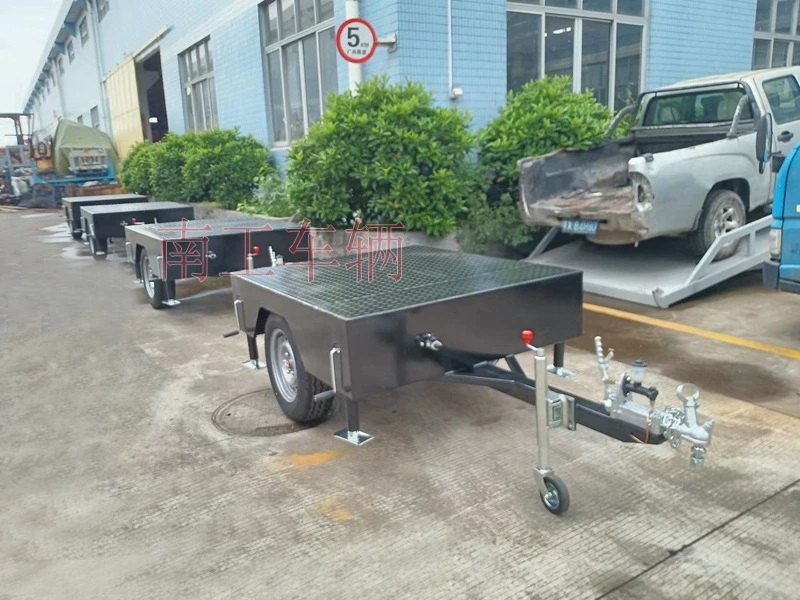

4. The traction part features a collision brake-type tow bar, with continuous traction using a 2-inch ball-type European standard tow coupling.
5. This vehicle does not include water cannons, water pumps, power systems, and other mounted equipment.
6. The vehicle is in black.

7. The entire vehicle dashboard is covered with a 4MM thick patterned board for anti-slip purposes.

0.7-ton compact fire extinguisher flatbed trailer ATV trailer, Nan Gong brand, long-term non-standard customization. Steel structure with high load capacity and good quality, long service life.
Application ScenarioFor fire equipment mobility, also suitable for small hardware, small machinery and equipment, and short-distance transportation of small metal building materials.
