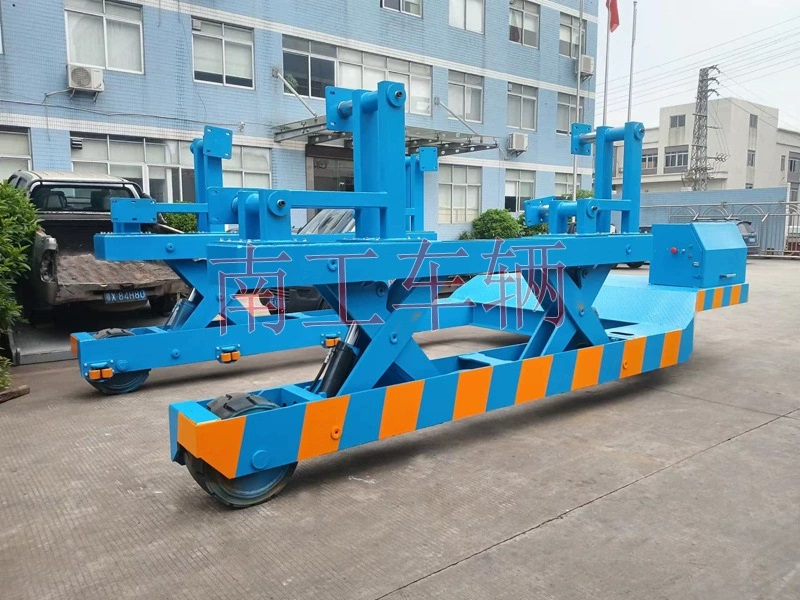

15-ton U-shaped lift flatbed truck
Brand: NanGong, Model: NGTT15L-23/66-6S, Load Capacity: 15 tons, Deck Size: 6.6m x 3.3m, Color: Sky Blue, Net Weight: 5300KG
15-ton U-shaped lifting flatbed detailed specifications:

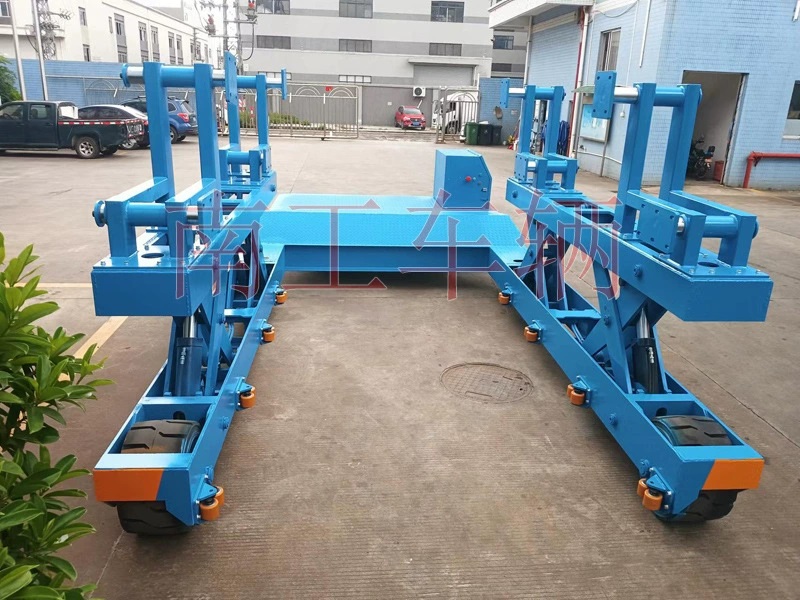

The flatbed is designed with a U-shaped structure, featuring a 30# welded I-beam with a load capacity of 15 tons. The frame dimensions are 6.6 meters in length, 3.3 meters in width, and 0.9 meters in height. The internal U-shaped space measures 4.3 meters in length and 2.5 meters in width.
2. This vehicle comes with 6 pressure-inflated tires, including two rear models of 22-12-16, each capable of carrying 5.1 tons, and four front models of 18*9*12 1/8 wheels, each rated to carry 3.1 tons. No inflation or maintenance is required, enhancing work efficiency.
3. The front wheel design of this vehicle is suspended, allowing for automatic adjustment of tire load balance based on road flatness, facilitating easy maneuvering at small radii and transportation.
4. The steering mechanism features a turntable-type rotary assembly with a rotation angle of 220 degrees, facilitating turns in confined spaces.
5. High-adjustable tow bars for easy towing by trailers of varying height.
6. The vehicle body design features dual scissor lifting mechanisms on both sides. The mechanisms can be elevated or lowered using hydraulic cylinders to lift the equipment off the ground for transportation. Upon arrival at the destination, the mechanisms lower the equipment back to the ground, and the trailer departs.
7. The bracket design consists of a fixed base and an adjustable base. Choose the corresponding adjustable base according to the workpiece mounting base required, and match the installation. When not in use, the adjustable base can be retracted within the frame width to prevent interference with the mechanism.
8. A set of 24V 200A battery pack with a 24V 30A charger, power station includes a 24V 3KW motor and a set of synchronizing valves.

9. Color: Sky blue with orange warning stripes on both sides

15-ton U-shaped lift flatbed trailer semi-truck, long-term non-standard customization by Nangong, heavy load capacity, low cost, and long service life.
Application Scenario: Designed for short-haul transportation of specialized equipment, with a non-standard design as per customer requirements, featuring adjustable height and capable of being towed by forklift or truck.
