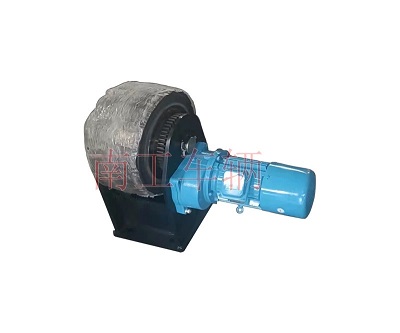

Electric Drive Wheel Assembly Trailer Accessories
Brand: Nangong, Model: NGTT-PJ03, Tire Model: 18*9*12-1/8, Colors: Blue, Black
Electric Drive Wheel Assembly Trailer Parts Detailed Configuration:
18x9x12-1/8 press fit tire
2. Walking Drive Hub
3. Drive Gear Ring; (for 20-ton crane use)
4. Drive Wheel Bracket; (welded from 14mm steel plate)
5. Gearbox
6. Walking is the key.
7. Hub bearings
8. Axle
9. Electrical Control Box
10. Leaking circuit switch
11. Contactors
12. Switched-Mode Power Supplies
13. Cable Handle; (with emergency stop configuration)
14. Switch circuit indicator lights (key switch, emergency stop, wiring, wire guide track)
15. Press Fit Tire
16. Drive hub
17. From the drive wheel frame
18. Swing Arm Assembly

19. Hub Bearings (Deep Groove Ball Bearings)

20. Axle; (70*370)
