Brand: Nangong, Model: NGTT10CBM-15/100-8S, Load Capacity: 10 tons, Table Size: 10*1.5 meters, Color: Black, Net Weight: 2 tons

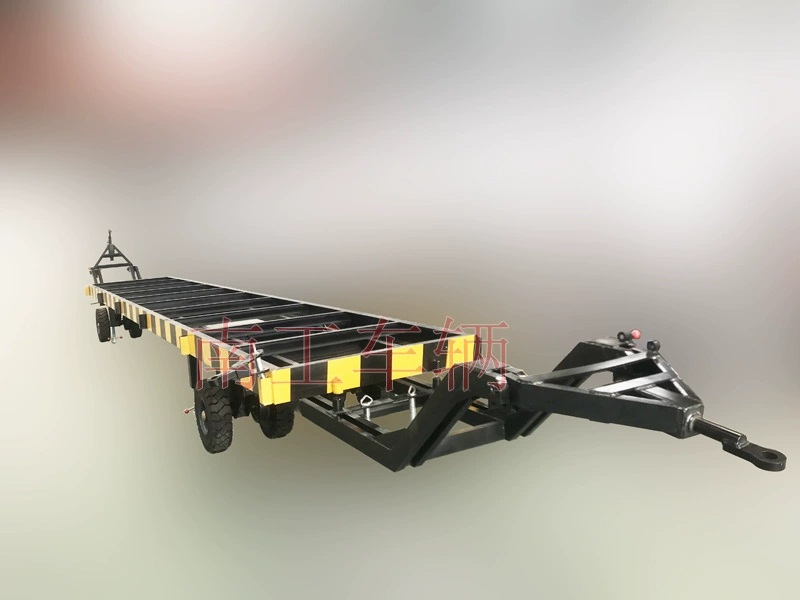

10-ton skeletal flatbed trailer, detailed configuration for twin-axle container trailer:

The turntable has a rotation angle of 10T capacity, the main beam of the platform is made of 20# steel焊接, with a platform length of 10 meters, width of 1.5 meters, and height of approximately 0.75 meters. This vehicle is in a skeletal design without a deck.

2. This vehicle is equipped with 8 models of solid tires, size 650-10, each capable of carrying a single wheel load of 2.5T, with a rated speed of up to 15KM/H.

3. This vehicle features a dual-tow structure, allowing for towing from both the front and rear. The tow bar can rotate left and right up to 180 degrees, effectively solving the problem of turning in narrow passages. When in use, the rotation limit of the tow bar at the connection point with the tow truck must be disengaged. The tail-end rotation bracket, however, requires a fixed limit (pin fixed).

4. The steering mechanism is a (10T) turntable-type machine turntable assembly, operates smoothly with a long service life.

5. The tow frame refers to the 1.5-meter-long tow frame of the fire truck.

6. This vehicle is equipped with a parking brake (handbrake).

7. This vehicle is equipped with four heavy-duty threaded legs.

8. Color: to be determined, with yellow warning stripes on all sides;

9. Provide one connector and one plug.

10-ton skeletal flatbed trailer, a heavy-duty, cost-effective, long-life-span chassis design, specifically tailored for southern engineering vehicles, with twin-axle trailers for full containers, featuring high load capacity and long service life.
Application ScenarioUsed for short-distance transportation and turnover in the fields of plastic, metal hardware, mechanical equipment, logistics transportation, container bodies, mobile food carts, mobile kiosks, and shops.
